85 series

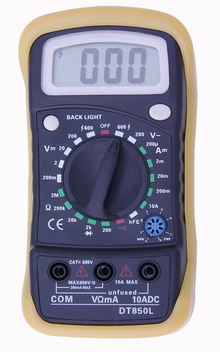

DT850L 3 1/2 DIGITAL MULTIMETER
|
|
Function | Range | Accuracy |
| DC Voltage | 200mV-600V | ＼(0.5%+2dgt) | |
| AC Voltage | 200V-600V | ＼(1.2%+10dgt) | |
| DC Current | 200uA-10A | ＼(1.0%+2dgt) | |
| Resistance | 200Ω-2MΩ | ＼(0.8%+2dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Back Light | Yes | ||
| Data Hold | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Maximum Display | 1999 | ||
| Products Size | 138〜69〜31mm | ||
| Product Net Weight | 170g | ||
| Color available | Yellow, Black | ||
| Standard Accessories | Test Lead, Battery, Manual | ||

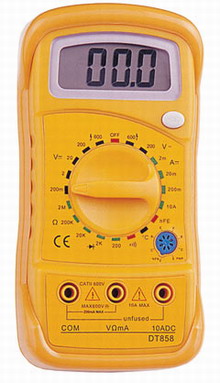

DT858 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-600V | ＼(0.5%+2dgt) | |
| AC Voltage | 200V-600V | ＼(1.2%+10dgt) | |
| DC Current | 2mA-10A | ＼(1.0%+2dgt) | |
| Resistance | 200Ω-2MΩ | ＼(0.8%+2dgt) | |
| Temperature | -40＜C ~ 750＜C | ＼(1.0%+2dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Continuity Buzzer | Yes | ||
| Data Hold | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Maximum Display | 1999 | ||
| Products Size | 138〜69〜31mm | ||
| Product Net Weight | 170g | ||
| Color available | Yellow, Black | ||
| Standard Accessories | Test Lead, Battery, Manual | ||

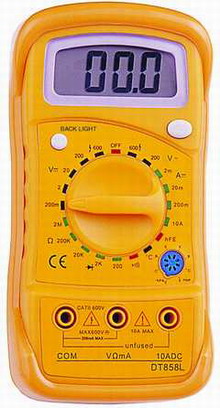

DT858L 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-600V | ＼(0.5%+2dgt) | |
| AC Voltage | 200V-600V | ＼(1.2%+10dgt) | |
| DC Current | 2mA-10A | ＼(1.0%+2dgt) | |
| Resistance | 200Ω-2MΩ | ＼(0.8%+2dgt) | |
| Temperature | -40＜C ~ 750＜C | ＼(1.0%+2dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Continuity Buzzer | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Maximum Display | 1999 | ||
| Products Size | 138〜69〜31mm | ||
| Product Net Weight | 170g | ||
| Color available | Yellow, Black | ||
| Standard Accessories | Test Lead, Battery, Manual, Holster | ||
