Digital Multimeter (DMM)

For multimeter test leads, click here: test leads

Page1 Page2 Page3 Page4 Page5 Page6 Page7 Page8 Page9 Page10 Page11

18 series

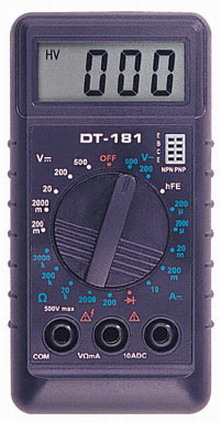

DT181 3 1/2 DIGITAL MULTIMETER

Function	Range	Accuracy
DC Voltage	200mV-500V	±(0.5%+2dgt)
AC Voltage	200-500V	±(1.2%+10dgt)
DC Current	200µA-10A	±(1%+2dgt)
Resistance	200Ω-2000KΩ	±(0.8%+2dgt)
Diode Test	Yes
Transistor Test	Yes
Power Supply	12V Battery A12
Maximum Display	1999
Products Size	100×50×20mm
Product Net Weight	58g
Standard Accessories	Test Lead, Battery, Manual

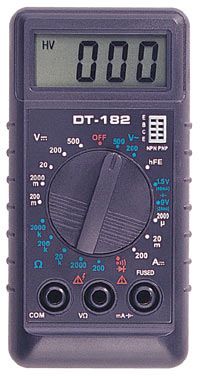

DT182 3 1/2 DIGITAL MULTIMETER

Function	Range	Accuracy
DC Voltage	200mV-500V	±(0.5%+2dgt)
AC Voltage	200V-500V	±(1.2%+10dgt)
DC Current	2000µA-200mA	±(1%+2dgt)
Resistance	200Ω-2000KΩ	±(0.8%+2dgt)
Diode Test	Yes
Transistor Test	Yes
Battery Capacity Check	1.5V-9V
Continuity Test	Audible
Power Supply	12V Battery A12
Maximum Display	1999
Products Size	100×50×20mm
Product Net Weight	60g
Standard Accessories	Test Lead, Battery, Manual

33 series

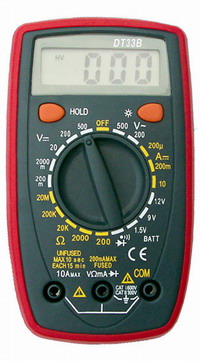

DT33B 3 1/2 DIGITAL MULTIMETER

Function	Range	Accuracy
DC Voltage	200mV-500V	±(0.5%+2dgt)
AC Voltage	200V-500V	±(1.2%+10dgt)
DC Current	200μA-10A	±(1%+2dgt)
Resistance	200Ω-20MΩ	±(0.8%+2dgt)
Battery Test	1.5V/9V/12V	±(2.5%+2dgt)
Diode Test	Yes
Data hold	Yes
Low Battery Indication	Yes
Back light	Yes
Input Impedance	10MΩ
LCD size	48x16mm
Maximum Display	1999
Power Supply	9V (6F22)
Product Net Weight	156g
Products Size	130 x 73.5 x 35mm

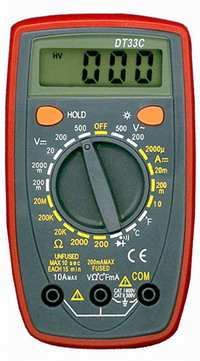

DT33C 3 1/2 DIGITAL MULTIMETER

Function	Range	Accuracy
DC Voltage	200mV-500V	±(0.5%+2dgt)
AC Voltage	200V-500V	±(1.2%+10dgt)
DC Current	2000µA-10A	±(1%+2dgt)
Resistance	200Ω-20MΩ	±(0.8%+2dgt)
Temp	-40℃-1000℃	±1%+3
	-40 ℉-1832 ℉	±1%+4
Diode Test	Yes
Data hold	Yes
Low Battery Indication	Yes
Audible continuity test	Yes
Back light	Yes
Input Impedance	10MΩ
LCD size	48x16mm
Maximum Display	1999
Power Supply	9V (6F22)
Product Net Weight	156g
Products Size	130 x 73.5 x 35mm

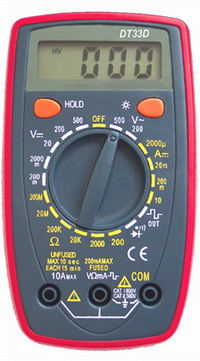

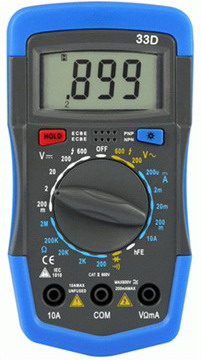

DT33D 3 1/2 DIGITAL MULTIMETER

Function	Range	Accuracy
DC Voltage	200mV-500V	±(0.5%+2dgt)
AC Voltage	200V-500V	±(1.2%+10dgt)
DC Current	2000µA-10A	±(1%+2dgt)
Resistance	200Ω-200MΩ	±(0.8%+2dgt)
Signal output	Yes
Diode Test	Yes
Data hold	Yes
Low Battery Indication	Yes
Audible continuity test	Yes
Back light	Yes
Input Impedance	10MΩ
LCD size	48x16mm
Maximum Display	1999
Power Supply	9V (6F22)
Product Net Weight	156g
Products Size	130 x 73.5 x 35mm

Product name: HP33D 3 1/2 DIGITAL MULTIMETER

1. Function
•AC / DC voltage, AC/ DC current, resistance, positive diode voltage fall,hFE parameters for transistor and Continuity.
• LCD Display : 3 1/2 digits, character 16mm high
• Back Light Button Switch
• Fuse protection : F-200mA/250V (Ø5x20mm)
• Power Supply : 9V battery, 6F22 or NEDA 1604
• Data-hold Switch (HOLD)
• Safety:According to EN61010-1 protection class Ⅱovervoltage category(CAT Ⅲ 600V) pollution degreen 2.
•Certificate: CE Approva

2. Packing
• Each item in one color box
• Dimension: 143x75x32mm(with holster)
• Ctn size:       478×318×315mm
• Q’TY / Ctn:      60pcs
• Gw/Nw:         17/16KG
• Minimum Q'ty: 100pcs

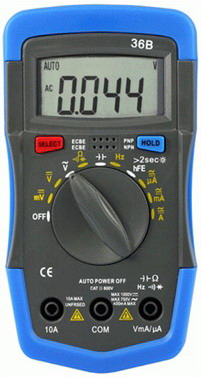

Product name: HP36B 3 3/4 AUTO RANGE MULTIMETER

1. Function
• AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode and Continuity test, Transistor hFE test.
• Display: 3 3/4 digit LCD with a max. reading of 3999
• AC/DC Current to 10A
• Auto-range and Auto power off ,Auto-zero, Auto-polarity,
• Hold Key
• Safety:According to EN61010-1 protection class Ⅱ overvoltage category(CAT II 600V) pollution degreen 2.
• Power Supply: “AA” 1.5V 7# two pieces
•Certificate: CE Approva

2. Packing
• Each item in one color box
• Dimension: 143x75x32mm(with holster)
• Ctn size:       478×318×315mm
• Q’TY / Ctn:      60pcs
• Gw/Nw:         17/16KG
• Minimum Q'ty: 100pcs

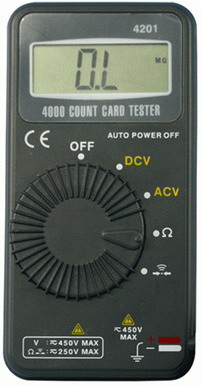

Product name: HP4201 Digital Multimeter (Pocket size)

1. Function
Display: 3999
Auto Range
DC Voltage: 400mV~450V
AC Voltage: 4V~450V
Resistance : 400 Ohm~40M Ohm
Continuity Buzzer
•Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension: 54H×108W×12Dmm
Ctn size:       62.5×40.5×220
Q’TY / Ctn:     150pcs
Gw/Nw:        17/16KG
Minimum Q'ty: 100pcs

Product name: VC10C+ 3 3/4 MULTIMETER

Basic Function	Range		Accuracy
DCV	400mV/4V/40V/400V/1000V		±(0.5%+4)
ACV	400mV/4V/40V/400V/750V		±(0.8%+6)
DCA	40mA/400mA/10A		±(1.0%+6)
ACA	400uA/4000uA /40mA/400mA/10A		±(1.5%+10)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ		±(0.8%+4)
Capacittance	4nF/40nF/400nF/4uF/40uF/200uF		±(2.5%+6)
Frequency	100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz		±(0.5%+4)
Celsius	(-40 ~ 1000)℃		±(0.8%+4)
Special Function		VC10C+
Diode test		√
Transistor		√
Continuity buzzer		√
Low battery indication		√
Data hold		√
Auto power off		√
Input impedance		10MΩ
Sampling rate		3times/s
AC Frequency response		(40-400)Hz
Operation way		Auto range
Max.Display		3999
Battery		3V (1.5V×2)

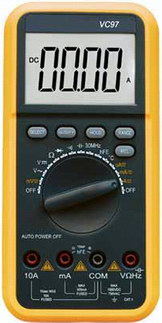

Product name: VC97 3 3/4 MULTIMETER

Basic Function	Range		Accuracy
DCV	400mV/4V/40V/400V/1000V		±(0.5%+4)
ACV	400mV/4V/40V/400V/750V		±(0.8%+6)
DCA	40mA/400mA/10A		±(1.0%+6)
ACA	400uA/4000uA /40mA/400mA/10A		±(1.5%+10)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ		±(0.8%+4)
Capacittance	4nF/40nF/400nF/4uF/40uF/200uF		±(2.5%+6)
Frequency	100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz		±(0.5%+4)
Celsius	(-40 ~ 1000)℃		±(0.8%+4)
Special Function		VC97
Diode test		√
Transistor		√
Continuity buzzer		√
Low battery indication		√
Data hold		√
Auto power off		√
Function protection		√
Relative ＆#118alue measurement		√
Shock proof protection		√
Function protection		1%~99%
Input impedance		10MΩ
Sampling rate		3times/s
AC Frequency response		(40-400)Hz
Operation way		Auto range
Max.Display		3999

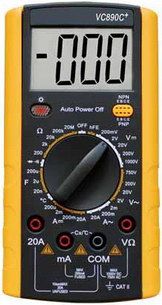

Product name: VC890C+ 3 3/4 MULTIMETER

Basic Function	Range		Accuracy
DCV	200mV/2V/20V/200V/1000V		±(0.5%+3)
ACV	2V/20V/200V/750V		±(0.8%+5)
DCA	200uA/20 mA /200mA/20A		±(1.5%+3)
ACA	20mA /200mA/20A		±(1.5%+5)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/20MΩ		±(0.8%+3)
Capacittance	20nF/200nF/20uF/200uF		±(2.5%+20)
Celsius	(-40 ~ 1000)℃		±(0.8%+4)
Special Function		VC890C+
Diode test		√
Transistor		√
Continuity buzzer		√
Low battery indication		√
Data hold		√
Auto power off		√
Function protection		√
Restorable Fuse protection		√
Shock proof protection		√
Input impedance		10MΩ
Sampling rate		3times/s
AC Frequency response		(40-400)Hz
Operation way		Manual range
Max.Display		1999
LCD size		55×43mm
Battery
