Abbe refractometer

This instrument is designed for the measurement of refractive index(nD) and the average optical dispersion(NF-NC) of the transparent, the semitransparent and the solid matter. It was connect with a circulating thermostatic bath, can measure the refractive index in 0℃~70℃. It also can measure the Brix percentage of sugar solution. It was widely used in oil industry, fat industry, pharmaceutical factories, paint, food processing, chemistry, sugar refineries, geologic etc., and relative factories, schools and research center.

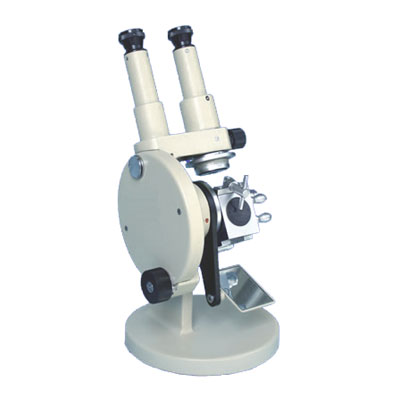

Model: WYA
Measurement range: 1.300~1.700Nd
0~95%Brix
Min. Div.: 0.0002 Nd
0.25%Brix
Weight: 4kgs
Outer size: 200mm×100mm×240mm 		This instrument is designed for the measurement of refractive index(nD) and the average optical dispersion(NF-NC) of the transparent, the semitransparent and the solid matter. It was connect with a circulating thermostatic bath, can measure the refractive index in 0℃~70℃. It also can measure the Brix percentage of sugar solution. It was widely used in oil industry, fat industry, pharmaceutical factories, paint, food processing, chemistry, sugar refineries, geologic etc., and relative factories, schools and research center.

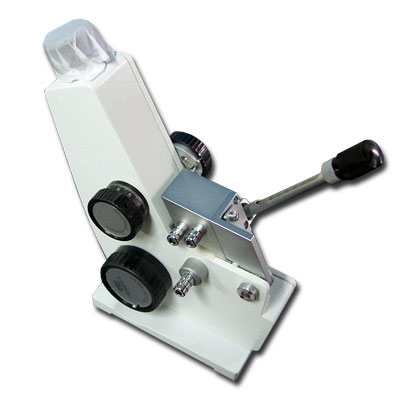

Model: 2WAJ
Measurement range: 1.300~1.700Nd
0~95%Brix
Min. Div.: 0.0002 Nd
0.25%Brix
Weight: 3kgs
Outer size: 200mm×100mm×240mm
