Table Digital Refractometer
Introduction:
The TDR series are the top model at good
price in the market now, named Table Digital
Refractometers. The instrument can be
designed with 5 different scales. We can add
any scale according to our customers
require! Custom scale is welcomed. Different
models have different accessory!
Product specification:
Form: potable - LAB
Work temperature:10-40¡æ
Storage temperature:0-50¡æ

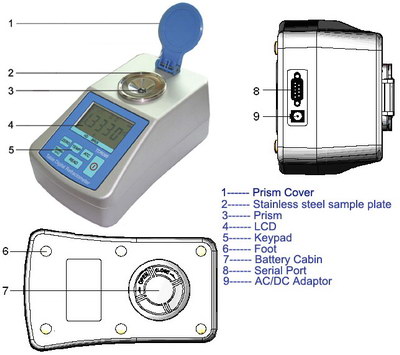

Prism Plate: stainless steel
Seal: Water proof design
Battery Cabin: Water proof design
Packing and Labeling: No label or symbol,
general cardboard
Design specification:
Power supply :
¡¡
1.Dry
battery: 9V battery, at least 3000
measure times per battery
2. AC Adaptor:9VDC power adaptor
Light source: Red LED
Scale (default): Brix
Measurement range(Default scale):
0-95% Brix
Accuracy: 0.1¡ãBx
Resolution: 0.1%
Temperature unit: centigrade &
Fahrenheit
Auto temperature compensation: open
statusTemperature compensation range
Computer outlet: RS232 serial port |
¡¡ |
The standard scales in
this series are Brix and Refractive index
(as below)
¡¡
|
|
Scale |
Range |
Resolution |
Accuracy |
|
BRIX |
0.0--95.0% |
0.1% |
¡À0.1% |
|
REFRACTIVE INDEX |
1.3330--1.5318nD |
0.0001 |
¡À0.0002 |
|
And we can add
the following scale in the instrument
according to our customers¡¯
requires(the instrument can have 5 scales at
the most):
Scale list:
¡¡
|
|
Scale |
Range |
Resolution |
Accuracy |
|
SALINITY |
0-28% |
0.1 |
¡À0.1 |
|
URINE SP.G |
1.000-1.050 |
0.001 |
¡À0.001 |
|
SERUMP. |
0-12 |
0.1 |
¡À0.1 |
|
AP |
0-22 |
0.1 |
¡À0.1 |
|
Oe |
0-150 |
1 |
¡À1 |
|
KMW |
0-25 |
0.1 |
¡À0.1 |
|
Propylene Glycol |
32 (-50)¨H |
0.1 |
¡À0.5 |
|
Ethylene Glycol |
32 (-50) ¨H |
0.01 |
¡À0.5 |
|
Battery Acid |
1.10 ~ 1.30sg |
0.1 |
¡À0.01 |
|
Cleaner |
14 (-40) ¨H |
0.1 |
¡À0.5 |
|
Propylene Glycol |
0
(-50) ¡æ |
0.1 |
¡À0.2 |
|
Ethylene Glycol |
0
(-50) ¡æ |
0.1 |
¡À0.2 |
|
TDR095 model
list(according to its accessory):
¡¡
|
|
Accessory |
Model |
|
TDR095S
(big picture, click) |
TDR095C
(big picgture, click) |
|
9V battery |
Yes |
Yes |
|
Instruction Manual |
Yes |
Yes |
|
Burette |
Yes |
Yes |
|
Distilled water for
calibration |
Yes |
Yes |
|
9VDC power adaptor |
No |
Yes |
|

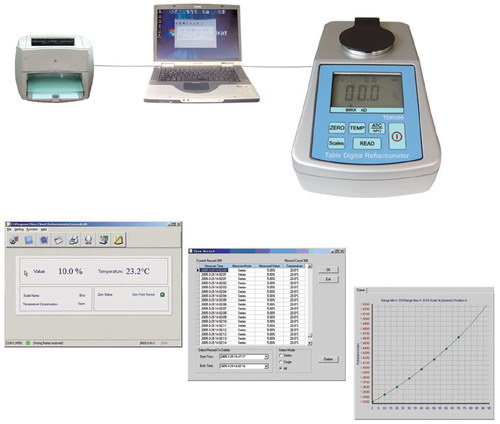

Software(Disc for
operation in PC) |
No. |
Yes |
|
RS232 output cable/
Cable for Bench PC |
No |
Yes |
|
The USB cable to
connect the instrument with Note PC is
available. Please contact our distributor to
ask the cable price.
|
|
|
|
