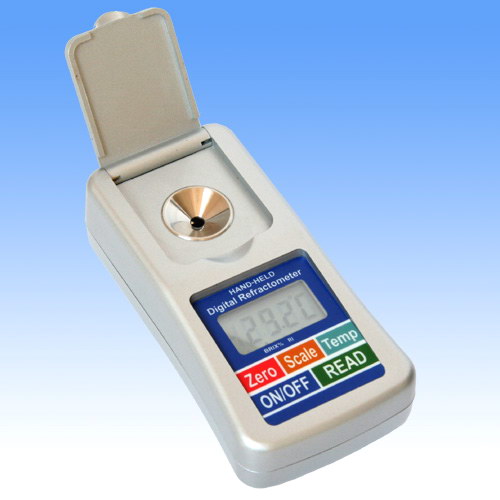

PDR series Digital Refractometer
|
Pocket Type digital refractometer:
The digital refractometers have the following
characters:
Automatic Temperature Compensation
Automatic Shut Off after 3 minutes
Conversion between Centigrade and Fahrenheit Degree
Alarm of Low Voltage & Low power consumption
Temperature Measurement Range: 0℃－40℃（32℉－104℉）
Precision of Measurement temperature: ±0.1℃(2℉)
Measurement temperature Resolution: 0.1℃(2℉)
Operation Temperature: 0℃－40℃（32℉－104℉）
Storage temperature: -10℃－50℃ （14℉－122℉）
Dimension : 120×59×40mm
Weight: 160g
Power Supply: 2battery（1.5v）
Operating Time: More than 1500 times per battery
The Brix concentration,
Refractive index or other parameters are always
needed in lab or our life. Optical refractometer is
very popular used to measure these parameters. The
Digital refractometer with a digital readout and LCD
display will eliminate uncertainties and is more
convenient to use. Just about 0.3ml-0.5ml sample was
needed. With smart design, our new Pocket Type
digital refractometers will offer more accurate
testing. All our digital refractometers have the
following characters:
|
|
MODEL |
SCALES |
RANGE |
DIVISIONS |
ACCURACY |
Brix
|
PDR35B
|
BRIX |
0-35% |
0.1 |
±0.1 |
|
REFRACTIVE INDEX |
1.3330-1.3900 |
0.0001 |
0.0003 |
PDR50B
|
BRIX |
0-50% |
0.1 |
±0.1 |
|
REFRACTIVE INDEX |
1.3330-1.4098 |
0.0001 |
0.0003 |
PDR70B
|
BRIX |
28-70% |
0.1 |
±0.1 |
|
REFRACTIVE INDEX |
1.3800-1.4535 |
0.0001 |
0.0003 |
PDR95B
|
BRIX |
60-95% |
0.1 |
±0.1 |
|
REFRACTIVE INDEX |
1.4400-1.5230 |
0.0001 |
0.0003 |
Honey
|
PDR92H
|
Water |
38-5% |
0.1% |
±0.1 |
|
Baume |
33-48Be |
0.1Be |
±0.2 |
|
REFRACTIVE INDEX |
1.4400-1.5230 |
0.0001 |
±0.00015 |
|
Brix |
60-92% |
0.1% |
±0.1 |
Salinity
|
PDR28S
|
SALINITY |
0-28% |
0.1 |
±0.1 |
|
REFRACTIVE INDEX |
1.3330-1.3900 |
0.0001 |
0.0003 |

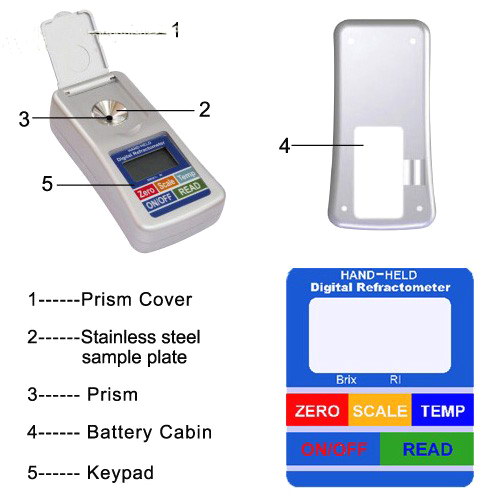

Clinical
|
PDR200C
|
URINE
SP.G |
1.000-1.050 |
0.001 |
±0.001 |
|
SERUMP. |
0-12 |
0.1 |
±0.1 |
|
nD |
1.3330-1.3900 |
0.0001 |
0.0003 |
Wine
|
PDR40W
|
MASS
S/W |
0-40% |
0.1 |
±0.1 |
|
AP |
0-22 |
0.1 |
±0.1 |
|
Oe |
0-150 |
1 |
±1 |
|
KMW |
0-25 |
0.1 |
±0.1 |
Compositive
|
PDR40S
|
SALINITY |
0-28% |
0.1 |
±0.1 |
|
BRIX |
0-40% |
0.1 |
±0.1 |
|
REFRACTIVE INDEX |
1.3330-1.3900 |
0.1 |
0.0003 |
Car
|
PDR503F
|
Propylene Glycol |
32
(-50)℉ |
0.1 |
±0.5 |
|
Ethylene Glycol |
32
(-50) ℉ |
0.01 |
±0.5 |
|
Battery Acid |
1.10
~ 1.30sg |
0.1 |
±0.01 |
|
Cleaner |
14
(-40) ℉ |
0.1 |
±0.5 |
PDR503C
|
Propylene Glycol |
0
(-50) ℃ |
0.1 |
±0.2 |
|
Ethylene Glycol |
0
(-50) ℃ |
0.1 |
±0.2 |
|
Battery Acid |
1.10
~ 1.40sg |
0.01 |
±0.01 |
|
Cleaner |
14
(-40) ℃ |
0.1 |
±0.2 |
|
|
|
DRB series Digital refractometer
Digital Refractometer is a
kind of digit product based on the hand-held refractometer. The gigit
can be displayed. Comparing with the hand-held refractometer, it is more
intuitionistic and accutate. It is equipped with ATC.
-
Temperature Measurement Range: 0℃-40℃（32-104℉）
- Precision of Measurement
temperature: ±1℃(2℉)
- Measurement temperature
Resolution: 0.1℃
- Operation
Temperature: 0-35℃（32-90℉）
- Storage temperature: 0-50℃
（32-122℉）
- Dimension : 185×59×45mm
- Weight: 230g
- Power Supply: 1battery（9v）
- Operating Time: More than 2000
times per battery
- Automatic Temperature Compensation
- Automatic Shut Off
- Conversion between Centigrade and
Fahrenheit Degree
- Alarm of Low Voltage
|
Digital for Brix
|
Model |
Scale |
Range |
Div. |
Accur. |
|
DRB0-45 |
Brix |
0-45% |
0.1% |
±0.2% |
|
DRB0-45nD |
Brix
Refractive Index |
0-45%
1.3330-1.4098 |
0.1%
0.0001 |
±0.2%
±0.0003 |
|
DRB28-65 |
Brix |
28-65% |
0.1% |
±0.2% |
|
DRB28-65nD |
Brix
Refractive Index |
28-65%
1.3770-1.4535 |
0.1%
0.0001 |
±0.2%
±0.0003 |
|
DRB58-92 |
Brix |
58-92% |
0.1% |
±0.2% |
|
DRB58-92nD |
Brix
Refractive Index |
58-92%
1.4370-1.5232 |
0.1%
0.0001 |
±0.2%
±0.0003 |
|
DRBS-300 |
Brix
Salinity
Refractive Index |
0-35%
0-28%
1.3330-1.3900 |
0.1%
0.1%
0.0001 |
±0.2%
±0.2%
±0.0003 |
Digital for Salinity
|
Model |
Scale |
Range |
Div. |
Accur. |
|
DRS0-28 |
Salinity |
0-28% |
0.1% |
±0.2% |
|
DRS0-28nD |
Salinity
Refractive Index |
0-28%
1.3330-1.3900 |
0.1%
0.0001 |
±0.2%
±0.0003 |
|
DRBS-300 |
Brix
Salinity
Refractive Index |
0-35%
0-28%
1.3330-1.3900 |
0.1%
0.1%
0.0001 |
±0.2%
±0.2%
±0.0003 |
Digital for Clinical Protein
|
Model |
Scale |
Range |
Div. |
Accur. |
|
DRC-200 |
Urine SP.G
Serum P.
Refractive Index |
1.000-1.050
0-12g/dl
1.3330-1.3900 |
0.001
0.1
0.0001 |
±0.001
±0.1
±0.0003 |
Digital for Battery/Antifreeze/Cleaning Fluid
|
Model |
Scale |
Range |
Div. |
Accur. |
|
DRA-403C |
Propylene Glycol
Ethylene Glycol
Battery
Cleaner |
-95-0 ℃
-70-0 ℃
1.000-1.510sg
-72-0 ℃ |
0.1 ℃
0.1 ℃
0.01sg
0.1 ℃ |
±0.20 ℃
±0.20 ℃
±0.01sg
±0.20 ℃ |
|
DRA-403F |
Propylene Glycol
Ethylene Glycol
Battery
Cleaner |
-130-32 ℉
-95-32 ℉
1.000-1.510sg
-100-32 ℉ |
0.1 ℉
0.1 ℉
0.01sg
0.1 ℉ |
±0.5 ℉
±0.5 ℉
±0.01sg
±0.5 ℉ |
Digital for °Oe Tester
|
Model |
Scale |
Range |
Div. |
Accur. |
|
DRB-400 |
MASS s/v
Vol AP
Oe
KMN |
0-35%
0-22%
0-150
0-25 |
0.1%
0.1%
1.0
0.1 |
±0.2%
±0.2%
±1.0
±0.2 |
|
DBR series Digital refractometer
Digital refractometer is a kind of
digit product based on the hand-held refractometer. The digit can be displayed
and equipped with ATC.
- Working Temperature
Range: 0°C-40°C (32-104°F)
- Power Supply: 1battery (9v)
- Automatic Temperature Compensation
- Automatic Shut Off
- Dual temperature
- Compact, robust and pocket size
- Multi Scale versions
- High accuracy
|
 |
|
Model |
Scale |
Range |
Division |
Accuracy |
|
DBR35 |
BRIX |
0~35% |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.3330~1.3900 |
0.0001 |
0.0003 |
|
DBR45 |
BRIX |
0~45% |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.3330~1.4098 |
0.0001 |
0.0003 |
|
DBR65 |
BRIX |
28~65% |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.3770~1.4535 |
0.0001 |
0.0003 |
|
DBR92 |
BRIX |
58~92% |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.4370~1.5090 |
0.0001 |
0.0003 |
|
DHN1 |
BRIX |
58~92% |
0.1 |
0.1 |
|
|
BAUME |
|
|
|
|
|
WATER |
|
|
|
|
|
REFRACTLY INDEX |
1.4370~1.5090 |
0.0001 |
0.0003 |
|
DSA28 |
SALINITY |
0~28% |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.3330~1.3900 |
0.0001 |
0.0003 |
|
DBS1 |
BRIX |
0~35% |
0.1 |
0.1 |
|
|
SALINITY |
0~28% |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.3330-1.3900 |
0.0001 |
0.0003 |
|
DUR1 |
URINE SP.G. |
1.000~1.050 |
0.001 |
0.001 |
|
|
SERUM P. |
0~12g/dl |
0.1 |
0.1 |
|
|
REFRACTLY INDEX |
1.3330~1.3900 |
0.0001 |
0.0003 |
|
DWN1 |
MASS S/W |
0~35% |
0.1 |
0.1 |
|
|
VOL AP |
0~22% |
0.1 |
0.1 |
|
|
Oe(Germany) |
0~150 |
1 |
1 |
|
|
KMW |
0~25 |
0.1 |
0.1 |
|
DWN2 |
MASS S/W |
0~35% |
0.1 |
0.1 |
|
|
VOL AP |
0~22% |
0.1 |
0.1 |
|
|
Oe(Germany) |
30~150 |
1 |
1 |
|
|
KMW |
0~25 |
0.1 |
0.1 |
|
DWN3 |
MASS S/W |
0~35% |
0.1 |
0.1 |
|
|
VOL AP |
0~22% |
0.1 |
0.1 |
|
|
Oe(Swiss) |
0~150 |
1 |
1 |
|
|
KMW |
0~25 |
0.1 |
0.1 |
|
DAL1 |
ALCOHOL(v/v) |
0~60% |
0.1 |
0.2 |
|
DBC1 |
PROPYLENE GLYCOL |
32~-50oF |
0.1oF |
0.1oF |
|
|
ETHYLENE GLYCOL |
32~-50oF |
0.1oF |
0.1oF |
|
|
BATTERY |
1.00~1.50sg |
0.01sg |
0.01sg |
|
|
CLEANER |
14~-40oF |
0.1oF |
0.1oF |
|
DBC2 |
PROPYLENE GLYCOL |
0~-50oC |
0.1oC |
0.1oC |
|
|
