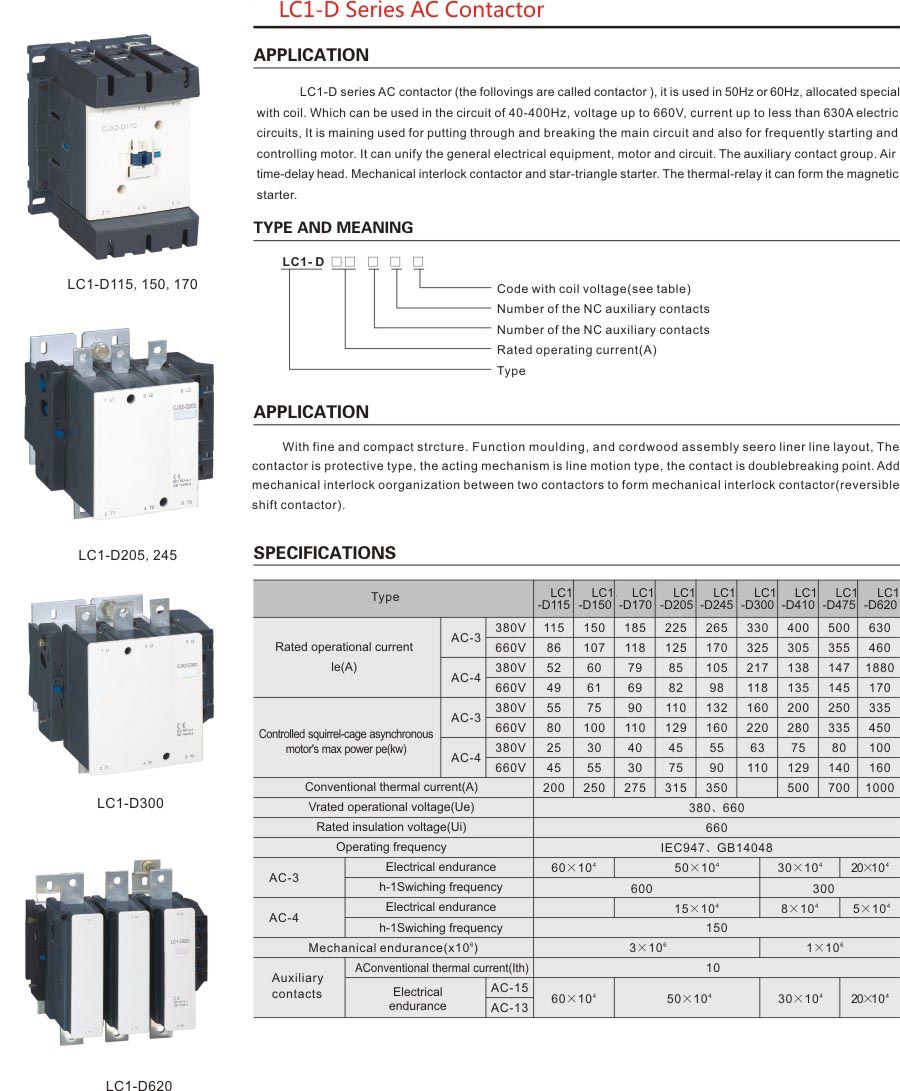

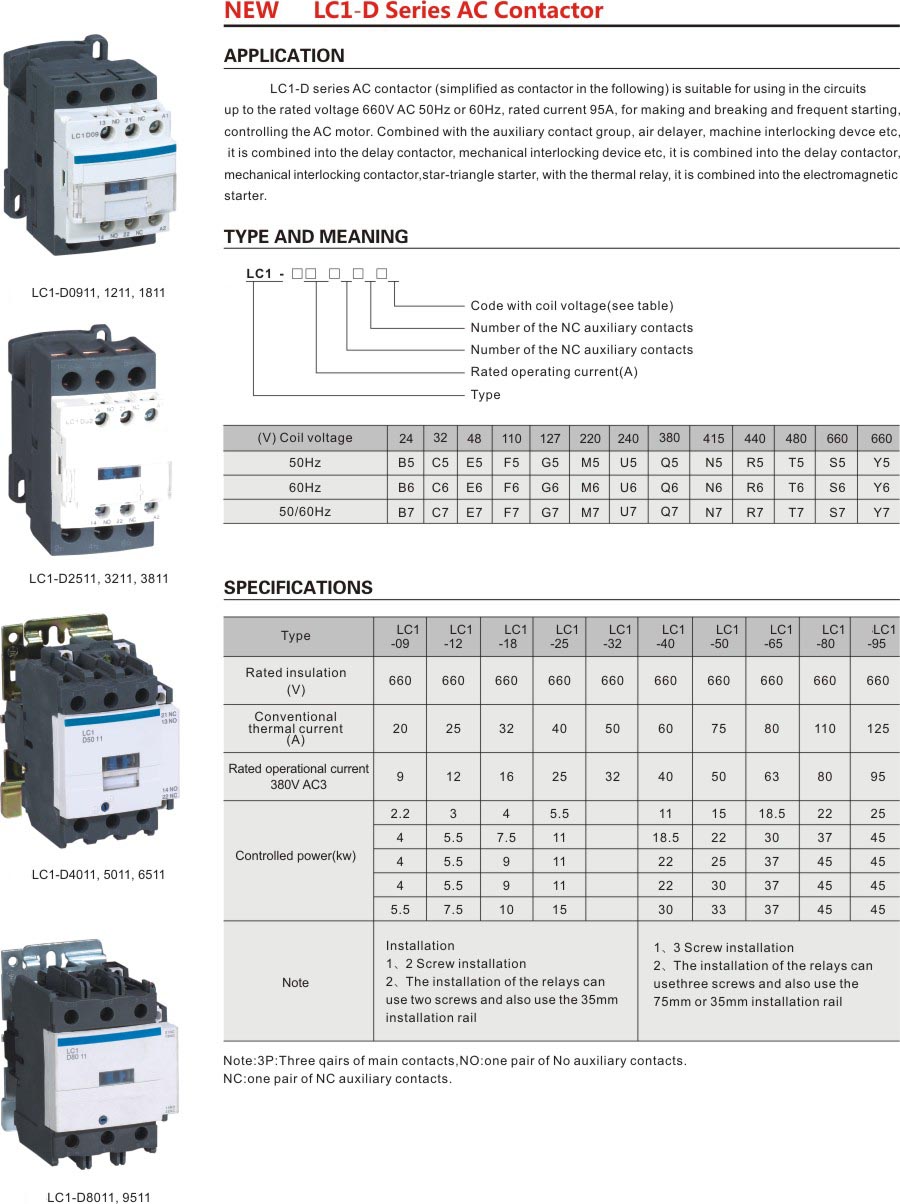

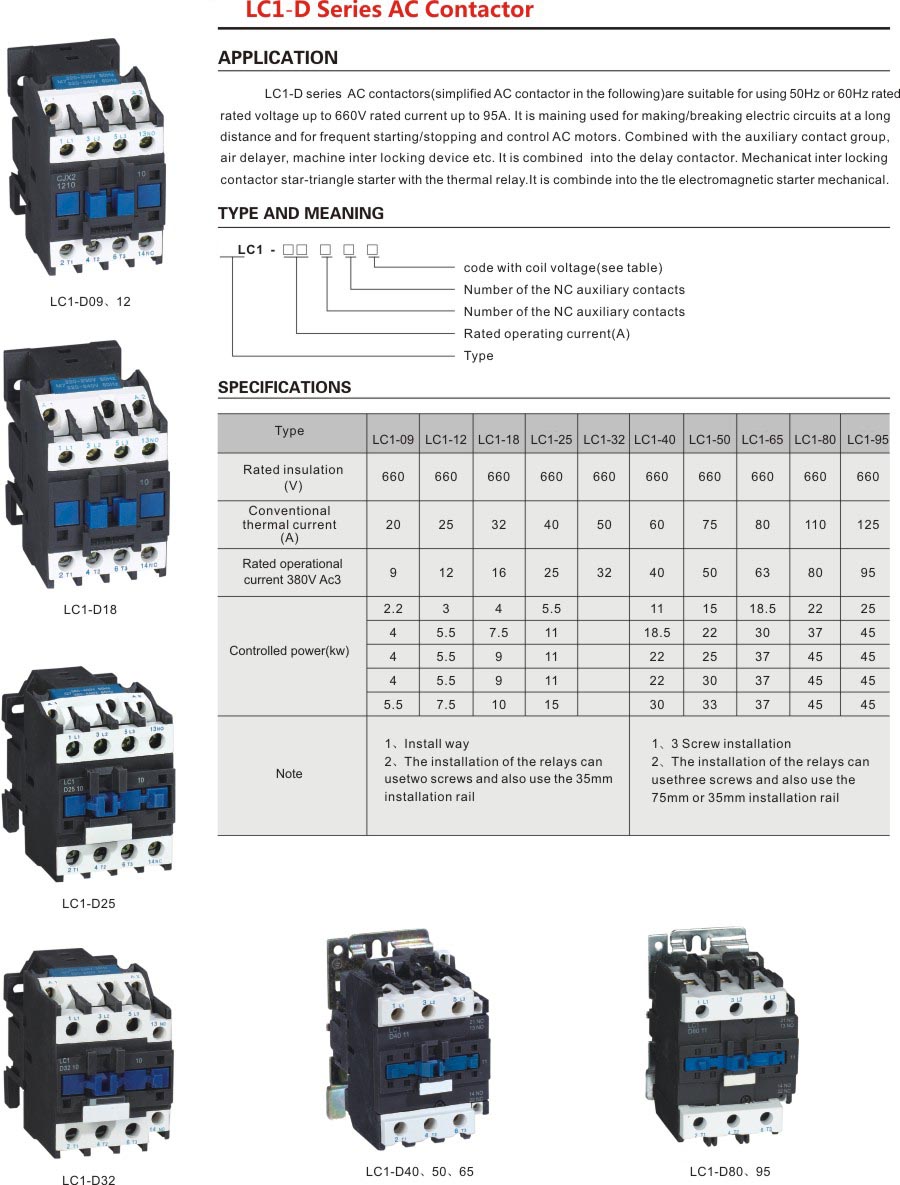

LC1-D AC Contactors

.

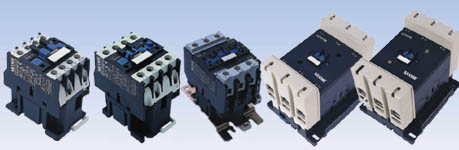

LC1-D09 LC1-D25 LC1-D65 LC1-D115 LC1-D150
LC1-D170

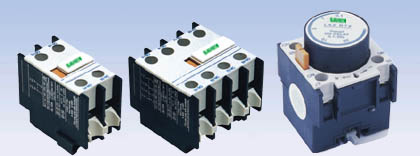

  LC1-D series AC contactor is suitable for using in the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current 95A, for making, breaking, frequent starting & controlling the AC motor. Combined with the auxiliary contact block, air delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to ICE158-1, VDE0660 & BS5432.

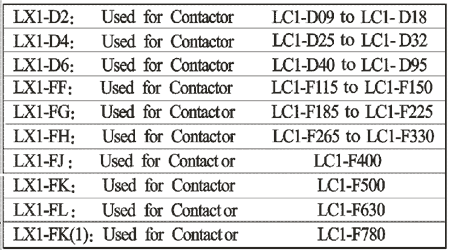

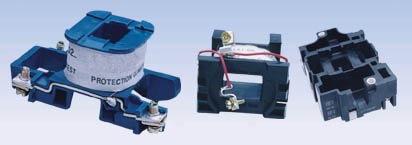

volts(vac) 24 42 48 110 220/230 230 240 380/400 400 415 440 500 660
50Hz B5 D5 E5 F5 M5 P5 U5 Q5 V5 N5 R5 S5 Y5
60Hz B5 D6 E6 F6 M5 - U6 Q6 - - R6 - -
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 - -

Specification

Type LC1-009 LC1-012 LC1-018 LC1-025 LC1-032
Rated working current
(A)		 AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of phase 3
squirrel-cage motor
AC3(KW)		 220V 2.2 3 4 5.5 7.5
380V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
660V 5.5 7.5 10 15 18.5
Rated heat current (A) 20 20 32 40 50
electrical life AC4x10e4 20 20-15 20-7 15-7 15-7
AC3x10e6 2 2 2 2 2
Mechanical life x 10e6 20 20 20 20 20
number of the contact 3P+NO
3P+NC
Type LC1-040 LC1-050 LC1-065 LC1-080 LC1-095
Rated working current
(A)		 AC3 40 50 65 80 95
AC4 18.5 24 28 37 44
AC3 capacity of phase 3
squirrel-cage motor
AC3(KW)		 220V 11 15 18.5 22 25
380V 18.5 22 30 37 45
415V 22 25 37 45 45
440V 22 30 37 45 45
660V 30 33 37 45 45
Rated heat current(A) 60 80 80 125 125
electrical life AC4x10e4 10-7 7 7-6 7-5 7-5
AC3x10e6 2 2 1.6 1.6 1.6
Mechanical life x 10e6 20 20 20 10 10
number of the contact 3P+NC+NO

LC1-K AC Contactors

Technical parameter
1ˇ˘the main technical performance guideline of contactors table 1,table 2
2ˇ˘the voltage of the contactors loop are 24Vˇ˘36Vˇ˘48Vˇ˘110Vˇ˘220Vˇ˘380V for AC, 12Vˇ˘24Vˇ˘48Vˇ˘110Vˇ˘220V for DC
Note: for special voltage specification, please discuss with us for doing
3ˇ˘Action character: the close voltage for AC is 85-110%UsŁ¬release voltage is 20-75%Us; the close voltage for DC is 80-110%UsŁ¬release voltage is 10-75%Us.
Parameter\Type
LC1-K06
LC1-K09
LC1-K12
rating working voltageŁ¨VŁ©
660Ł¨990Ł©

rating working current Ł¨AŁ©
380V
AC-3
6
9
12
AC-4
2.6
3.5
5
Appoint heating currentŁ¨AŁ©
16
16
20

the max current when turn onŁ¨AŁ©
380V
60
90
120
660V
72
108
144

the max current for turn off Ł¨AŁ©
380V
48
72
96
660V
60
90
120

three phases cage motors power which can be pulled AC3Ł¨KW)
220v
1.5
2.2
3
380v
2.2
4
5.5
660v
3
5.5
7.5
operation frequency
Time/h

electricity life
AC-3
1200
AC-4
300

electricity life
Ten thousand times

AC-3
100
AC-4
20
machinery life
Ten thousand times
1000
AC loop electricity lossŁ¨WŁ©
2
DC loop electricity lossŁ¨WŁ©
4
the section of connection guidelineŁ¨mm2Ł©
1.5
matched fuse machine type
NTOO-16
standard
GB-14048.4

The appearance and size of installation
