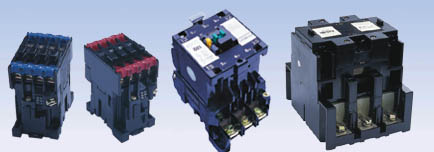

B Series AC Contactors
|
|
|||||
| B series AC contactors, mainly used in 50/60Hz electrical lines of the rated voltage up to 660V AC and rated current up to 475A, are applicable for remote making and breaking of electrical line or frequent control of AC motors, have no-voltage protection. Usually, it can be combined with T Series thermal relay to form electromagnetic starters which have overload and open-phase protection. It complies with IEC947 & VDE0660. |
Specification
|
Type |
B9 | B12 | B16 | B25 | B30 | B37 | B45 | B65 | B85 | B105 | B170 | B250 | B370 | |
| The
highest control power (kw) |
220V | 2.2 | 3 | 4 | 6.5 | 9 | 10 | 13 | 16 | 20 | 28 | 46 | 60 | 32 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 33 | 45 | 55 | 90 | 132 | 200 | |
| 500V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 40 | 50 | 75 | 110 | 160 | 250 | |
| 660V | 4 | 5.5 | 5.5 | 11 | 15 | 18.5 | 22 | 40 | 50 | 75 | 110 | 160 | 250 | |
| rated heating current Ith(A) | 16 | 20 | 25 | 40 | 45 | 45 | 60 | 80 | 100 | 140 | 230 | 300 | 400 | |
| rated
working current AC2/AC3/AC4 |
380V 660V |
8.5 | 11.5 | 15.5 | 22 | 30 | 37 | 44 | 65 | 85 | 105 | 170 | 245 | 370 |
| 3.5 | 4.9 | 6.7 | 13 | 17.5 | 21 | 25 | 45 | 55 | 82 | 118 | 170 | 268 | ||
| Rated
holding power of a holding coil/pull-in (VA/W) |
9/2.2 60/50 |
9/2.2 60/50 |
9/2.2 60/50 |
10/3 85/65 |
10/3 85/65 |
22/5 175/125 |
22/5 125 |
30/8 270/130 |
30/8 270/130 |
32/9 510/280 |
60/15 790/460 |
66/16 1100/600 |
100/27 900/350 |
|
กก

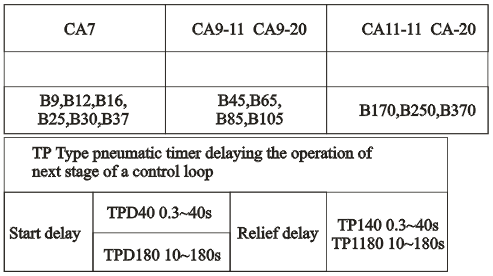

| CAT-10-01 | TP1180 TP040 |
