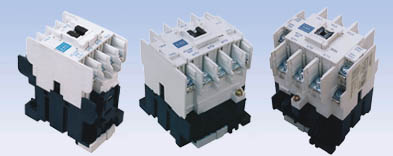

S-N AC Contactors
|
|
|||
| S-N series AC contactors are suitable for AC 50Hz or 60Hz, rated voltage up to 660V, mainly used as putting through long distance, breaking circuit and frequently starting or controlling AC motor. It can also be used for counter-connection breaking of squirrel-cage motor in the case of reducing working current. |
Specification
| Type | Capacity of 3 phase squirrel-cage motor AC-3 | Rated heating current I th(A) | |||||||
| rated power(KW) | Rated operating current(A) | ||||||||
| 220V-240V | 380V-440V | 550V | 660V | 220V-240V | 380V-440V | 500V | 660V | ||
| S-N10 | 2.5 | 4.0 | 4.0 | 4.0 | 11 | 9 | 7 | 5 | 20 |
| S-N11 | 3.5 | 5.5 | 5.5 | 5.5 | 13 | 12 | 9 | 7 | 20 |
| S-N12 | 3.5 | 5.5 | 5.5 | 5.5 | 13 | 12 | 9 | 7 | 20 |
| S-N20 | 5.5 | 11 | 11 | 7.5 | 22 | 22 | 17 | 9 | 32 |
| S-N21 | 5.5 | 11 | 11 | 7.5 | 22 | 22 | 17 | 9 | 32 |
| S-N25 | 8.5 | 14 | 14 | 14 | 30 | 30 | 12 | 12 | 40 |
| S-N35 | 12 | 20 | 20 | 20 | 40 | 40 | 17 | 17 | 40 |
