Digital Clamp Meter



(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)



PAGE1          PAGE2          PAGE3          PAGE4          PAGE5          PAGE6



SRT Series

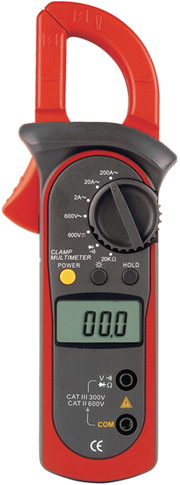

SRT200A

SRT200A Modern Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

600V

±(1%+3)

AC Voltage

600V

±(1.5%+5)

AC Current

2A/20A/200A

±(1.5%+5)

Resistance

20kΩ

±(1%+4)

Special Functions





Display Count

1999

Yes

Manual Range



Yes

Jaw Capacity



Yes

Diode



Yes

Continuity Buzzer



Yes

Low Battery Display



Yes

Data Hold



Yes

LCD Backlight



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

260g

Product Size

208 x 76 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 490 x 335mm (0.087 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg

SRT201

SRT201 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/600V

±(0.8%+1)

AC Voltage

2V/20V/200V/600V

±(1.2%+5)

AC Current

2A/20A/200A/400A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Max Hold



Yes

Data Hold



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

Max Display

1999

Yes

GENERAL CHARACTERISTICS

Power

3V Battery (AAA x 2)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

220g

Product Size

210 x 75.6 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 495 x 335mm (0.09 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg

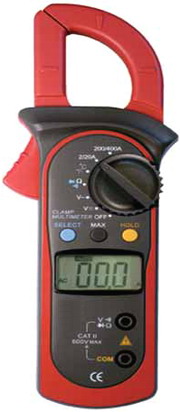

SRT202

SRT202 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/600V

±(0.8%+1)

AC Voltage

2V/20V/200V/600V

±(1.2%+5)

AC Current

2A/20A/200A/400A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

Temperture(°C)

-40°C~1000°C

±(1%+3)

Temperture(°F)

-40oF~1832oF

±(1%+6)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Max Hold



Yes

Data Hold



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

Max Display

1999

Yes

GENERAL CHARACTERISTICS

Power

3V Battery (AAA x 2)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

220g

Product Size

210 x 75.6 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual,
Point Contact Temperature Probe, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 495 x 335mm (0.09 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg

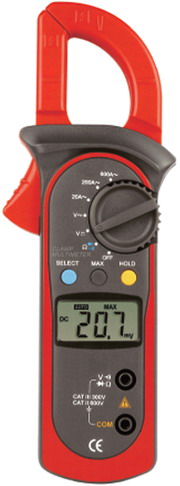

SRT202A

SRT202A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/600V

±(0.8%+1)

AC Voltage

2V/20V/200V/600V

±(1.2%+5)

AC Current

20A/200A/600A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

Special Functions





Manual Range



Yes

Jaw Capacity

28mm

Yes

Diode



Yes

Continuity Buzzer



Yes

Low Battery Display



Yes

Data Hold



Yes

Max Mode



Yes

Min Mode



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

220g

Product Size

210 x 75.6 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 495 x 335mm (0.09 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg

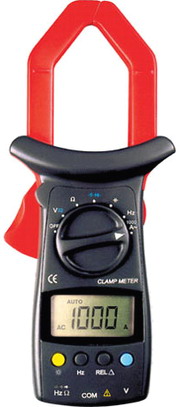

SRT205

SRT205 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Capacity

40nF/400nF/4mF/40mF/200mF

±(3%+5)

Frequency

10Hz~10MHz

±(0.1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Relative Mode

Yes

Diode



Yes

Continuity Buzzer



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ


Yes

Data Hold



Yes

Auto Ranging



Yes

Display Backlight



Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

52 x 27mm

Product Colour

Red and Grey

Product Net Weight

530g

Product Size

260 x 104 x 52mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 370 x 474mm (0.093 CBM Per Standard Carton)

Standard Carton Gross Weight

27.5kg

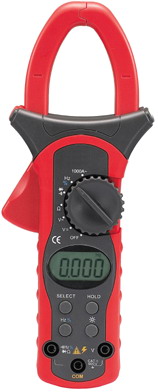

SRT205A

SRT205A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Frequency

10Hz~10MHz

±(0.1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Relative Mode



Yes

Data Hold



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ


Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

37 x 18mm

Product Colour

Red and Grey

Product Net Weight

350g

Product Size

236 x 97 x 40mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 360 x 385mm (0.073 CBM Per Standard Carton)

Standard Carton Gross Weight

Around 17kg

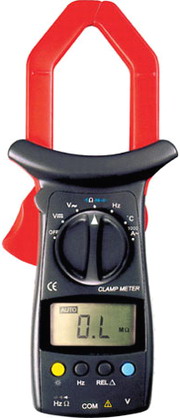

SRT206

SRT206 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Capacity

40nF/400nF/4mF/40mF/200mF

±(3%+5)

Frequency

10Hz~10MHz

±(0.1%+3)

Temperature (°C)

-40°C~1000°C

±(1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Relative Mode

Yes

Diode



Yes

Continuity Buzzer



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ


Yes

Data Hold



Yes

Auto Ranging



Yes

Display Backlight



Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

52 x 27mm

Product Colour

Red and Grey

Product Net Weight

530g

Product Size

260 x 104 x 52mm

Standard Accessories

Test Lead, Point Contact, Temperature Probe, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 370 x 474mm (0.093 CBM Per Standard Carton)

Standard Carton Gross Weight

27.5kg

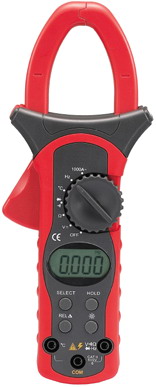

SRT206A

SRT206A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Temperature (°C)

-40oC~1000oC

±(2%+8)

Frequency

10Hz~10MHz

±(0.1%+3)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Relative Mode



Yes

Data Hold



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ


Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

37 x 18mm

Product Colour

Red and Grey

Product Net Weight

350g

Product Size

236 x 97 x 40mm

Standard Accessories

Test Lead, Battery, English Manual, Point Contact, Temperature Probe, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 360 x 385mm (0.073 CBM Per Standard Carton)

Standard Carton Gross Weight

Around 17kg



266 Series

266 3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1%+4dgt)

 AC Current

 200A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Continuity Buzzer

 Yes



 Display Hold

 Yes



 Power Supply

 9V Battery 6F22



 Maximum Display

 1999



 Display Size

 14×47mm



 Product Net Weight

 350g



 Products Size

 237×95×40mm



 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster



266C  3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1%+4dgt)

 AC Current

 20A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Temperature

 -40~750°C,

0~1382°F

 ±(3%+2dgt)

 Diode Test

 Yes



 Display Hold

 Yes



 Power Supply

 9V Battery 6F22



 Maximum Display

 1999



 Display Size

 14×47mm



 Product Net Weight

 350g



 Products Size

 237×95×40mm



 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster

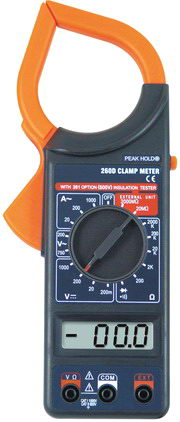

260D 3 1/2 DIGITAL CLAMP METER



Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1%+4dgt)

 AC Current

 20A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Temperature

 -40°C~750°C

 ±(3%+2dgt)

 Peak Hold

 Yes



 Continuity Buzzer

 Yes



 Display Hold

 Yes



 Power Supply

 9V Battery 6F22



 Maximum Display

 1999



 Display Size

 14×47mm



 Product Net Weight

 350g



 Products Size

 237×95×40mm



 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster



266F  3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1.0%+4dgt)

 AC Current

 200A-1000A

 ±(2.0%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2.0%+2dgt)

 Frequency

 2KHz

 ±(1.0%+1dgt)

 Continuity Buzzer

 Yes



 Display Hold

 Yes



 Diode Test

 Yes



 Power Supply

 9V Battery 6F22



 Maximum Display

 1999



 Display Size

 14×47mm



 Product Net Weight

 350g



 Products Size

 237×95×40mm



 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster



266FT  3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 2-1000V

 ±(0.5%+1dgt)

 AC Voltage

 200-750V

 ±(1%+4dgt)

 AC Current

 20A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Temperature

 -40°C~750°C

 ±(3%+2dgt)

 -40°F~1400°F

 ±(3%+2dgt)

 Frequency

 20KHz

 ±(1%+1dgt)

 Continuity Buzzer

 Yes



 Display Hold

 Yes



 Diode Test

 Yes



 Power Supply

 9V Battery 6F22



 Maximum Display

 1999



 Display Size

 14×47mm



 Product Net Weight

 350g



 Products Size

 237×95×40mm



 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual,
K-type Thermocouple wire, Holster



PAGE1          PAGE2          PAGE3          PAGE4          PAGE5          PAGE6

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
