Digital Clamp Meter

¡¡

(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)

¡¡

PAGE1          PAGE2          PAGE3          PAGE4          PAGE5          PAGE6

NAME:

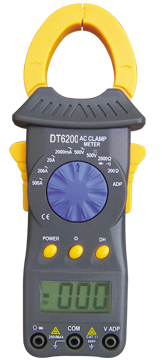

DT-6200 3 1/2 DIGITAL DOUBLE OPEN JAW AC CLAMP MULTIMETER

* Function: AC /DC Voltage, AC Current, Resistance, Diode test and Audible continuity test, ADP
* Display: 3 1/2 digit LCD with a max. reading of 1999.
* AC Current to 400A
* AC/DC Voltage to 500V
* Clamp opening size(double open jaw):1.61" (41mm)
* Data Hold to freeze the displayed value
* Back light
* Safety:According to EN61010-1 protection class ¢ò overvoltage category(CAT ¢ó 600V) pollution degreen 2.
* Power supply: 3¡Á1.5V AAA batteries.
* Dimension: 179(H)¡Á73(W)¡Á26(D)mm.

NAME:

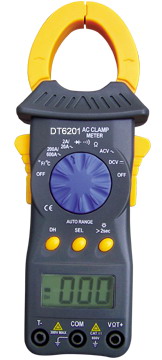

DT-6201 3 1/2 AUTO RANGE DOUBLE OPEN JAW AC CLAMP MULTIMETER

* Function: AC /DC Voltage, AC Current, Resistance, Diode test and Audible continuity test, Temprature
* Display: 3 1/2 digit LCD with a max. reading of 1999.
* AC Current to 400A
* AC/DC Voltage to 500V
* Clamp opening size(double open jaw):1.61" (41mm)
* Data Hold to freeze the displayed value
* Back light
* Safety:According to EN61010-1 protection class ¢ò overvoltage category(CAT ¢ó 600V) pollution degreen 2.
* Auto Power Off
* Power supply: 3¡Á1.5V AAA batteries.
* Dimension: 179(H)¡Á73(W)¡Á26(D)mm.

NAME:

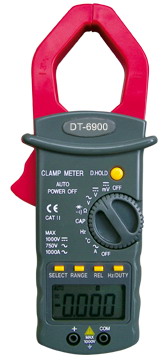

DT-6900 3 3/4 AUTO RANGE AC CLAMP MULTIMETER

* Function: AC /DC Voltage, AC Current, Resistance, Capacitance, Frequency, Duty cycle , Temperature(NiCr-NiSi sensor), Diode test and Audible continuity test
* Display: 3 3/4 digit LCD with a max. reading of 3999.
* AC Current to 1000A
* AC /DC Voltage to 750V/1000V
* Clamp opening size: 1.89" (48mm)
* Data Hold to freeze the displayed value
* Auto Power Off
* Safety:According to EN61010-1 protection class ¢ò overvoltage category(CAT ¢ó 600V) pollution degreen 2.
* Power supply: "AA" 1.5V 5# two pieces.
* Dimension: 225(H)¡Á90(W)¡Á45(D)mm

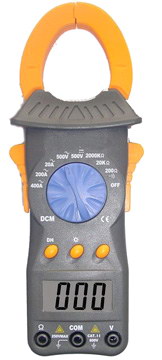

Product name: HP3266A 3 1/2 DIGITAL DOUBLE OPEN JAW AC CLAMP MULTIMETER (super thin)

1. Function
*AC /DC Voltage, AC Current, Resistance, Diode test and Audible continuity test, ADP
* Display: 3 1/2 digit LCD with a max. reading of 1999.
* AC Current to 400A
* AC/DC Voltage to 500V
* Clamp opening size(double open jaw):1.34" (34mm)
* Data Hold to freeze the displayed value
* Back light
* Safety:According to EN61010-1 protection class ¢ò overvoltage category(CAT ¢ó 600V) pollution degreen 2.
* Power supply: 3¡Á1.5V AAA batteries.
SPECIFICATIONS:
AC Current:20A,200A,400A
AC Voltage:500V
DC Voltage:500V
*Certificate: CE Approval

2. Packing
Each item in one color box
Dimension:  179(H)¡Á73(W)¡Á26(D)mm
Ctn size:        478¡Á318¡Á315
Q¡¯TY / Ctn:      40pcs
Gw/Nw:        14.5/13.5KG
Minimum Q'ty: 100pcs

¡¡
