Weatherproof Enclosure

(Weatherproofing Enclosure, Gel Seal Enclosure, Gel Seal Weatherproof Enclosure, Gel Seal Weatherproofing Enclosure, Feeder Protection Box, Waterproofing Enclosure, Gel Seal Waterproof Enclosure, Gel Seal Waterproofing Enclosure, Weatherproof Clamshell, Weatherproofing Clamshell, Gel Seal Clamshell, Gel Seal Weatherproof Clamshell, Gel Seal Weatherproofing Clamshell, Feeder Protection Box, Waterproofing Clamshell, Gel Seal Waterproof Clamshell, Gel Seal Waterproofing Clamshell)

Introduction

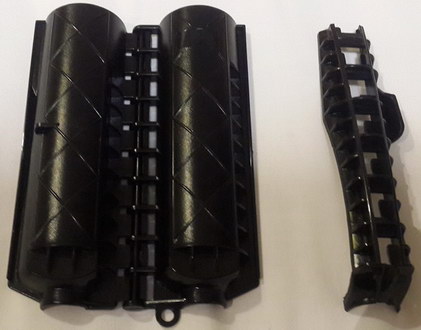

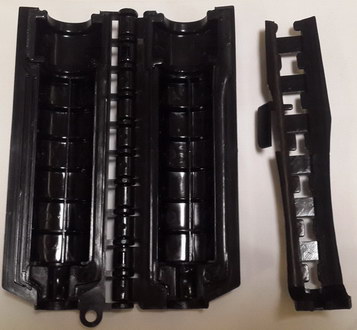

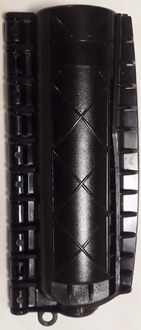

PB series Gel Seal Enclosure is a new kind of weatherproof kit. It is designed to quickly seal the antenna connectors and feeder connectors in cellular sites. This enclosure device contains an innovative gel material and provides an efficient block against moisture& salt mist.

Advantages
1. Quick install, just take seconds.
2. Easy removable & reusable.
3. One step install, simple, need no training.
4. Assure a uniform and good sealing jobs.
5. Wraparound and no disconnection of the connectors.

Certificate
1. The third party test report from CTTL (China telecommunication technology labs).
2. Material safety ROHS report.

Engineering experience
1. China Unicom.
2. China Mobile.
3. China Telecom.

f

Material: Polypropylene or Polycarbonate.
Assembly size (L*W*H): 150*70*42mm.
Inlet: 1/2” jumper cable (13-17mm).
Outlet: Antenna bolt.
Net weight: 119g.
Packaging: PP bag, inner carton, brown box, 51*42*27cm,
60pcs/CTN, G.W.: 9.5kgs, N.W.: 7.5kg.

Item No. PB-1278

Description: Seal 1/2” jumper cable-to-7/8” feeder cable.

Material: Polycarbonate.
Assembly size (L*W*H): 198*88*55mm.
Inlet: 1/2” jumper cable (13-17mm).
Outlet: 7/8” feeder cable (27-29mm).
Net weight: 255g.
Packaging: PP bag, inner carton, brown box, 53.5*47*22.5cm,
30pcs/CTN, G.W.: 10.5kgs, N.W.: 8.5kgs.

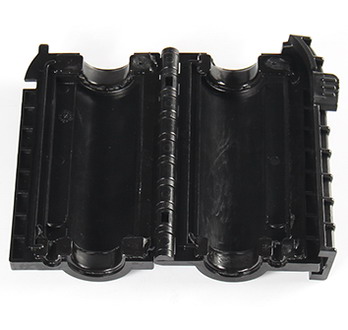

Item No. PB-D

Description: Seal grounding kit for 7/8” feeder cable.

Material: Polycarbonate.
Assembly size (L*W*H):120*85*40mm .
Inlet: 7/8" feeder cable (27-29mm).
Outlet: 7/8" feeder cable (27-29mm) & grounding wire (7-8mm).

Net weight: 105g.
Packaging: PP bag, inner carton, brown box, 47.7*34*33.5cm,
40pcs/CTN, G.W.: 8.1kgs, N.W.: 6.1kgs.

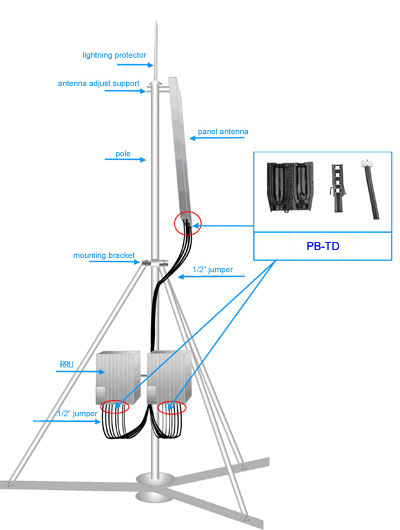

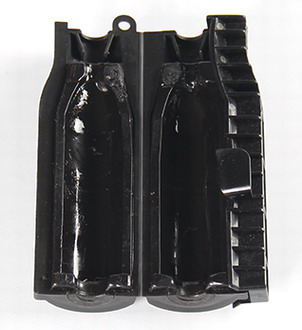

Item No. PB-TD

Description: Seal jumper cable to antenna or RRU device in TD-SCDMA.

Material: Polycarbonate.

Assembly size (L*W*H): 125*45*27mm.
Inlet: Jumper cable (9.5-11mm).

Outlet: Antenna bolts or RRU bolt.
Net weight: 53g.

Packaging: PP bag, inner carton, brown box, 51*42*27cm,
60pcs/CTN, G.W.: 8.5kgs, N.W.: 7.5kgs.
