Process Calibrator

(Process Calibrator, Temperature calibrator, Voltage/mA Calibrator, Process Source Calibrator)
﹛

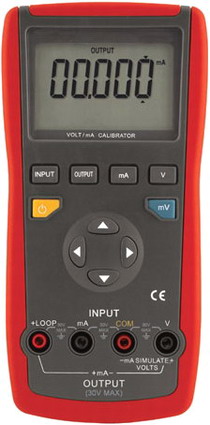

PC712 Process Calibrator

﹛

SPECIFICATIONS:

Basic Functions

Range

Best Accuracy

Measure / Source Voltage

200mV / 20V

㊣(0.04%+2)

Measure / Source Current

20mA

㊣(0.04%+2)

Special Functions





Sinking Current

-20mA

㊣(0.04%+2)

Loop Current

20mA

㊣(0.04%+2)

Loop Power

24V

㊣10%

Temperature coefficient

0⊥~18⊥/ 28⊥~50⊥

㊣0.005%Range/⊥

Low Battery Display



Yes

Input Impedance for DC Voltage

1MW

Yes

GENERAL CHARACTERISTICS:

Power

9V Battery (6F22)

LCD Size

40 x 63mm

Product Color

Red and Grey

Product Net Weight

410g

Product Size

96 x 193 x 47mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

24pcs

Standard Carton Measurement

610 x 450 x 355mm (0.097 CBM Per Standard Carton)

Standard Carton Gross Weight

19kg

﹛

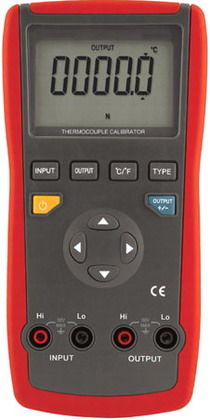

PC713 Process Calibrator

﹛

SPECIFICATIONS:

Basic Functions

Range

Best Accuracy

Measure / Source Voltage

-10~110mV /-110~1100mV

㊣(0.04 %+2)

Measure / Source
Thermocouple:
J/K/T/E/R/S/B/N/L/U



㊣0.04%㊣1⊥

Special Functions





Temperature coefficient



㊣0.005%Range/⊥

Cold Junction Tolerance



㊣0.5oC

Criterion Thermometric Scale



Yes

Graduation Thermometric Scale



Yes

Low Battery Display



Yes

GENERAL CHARACTERISTICS:

Power

9V Battery (6F22)

LCD Size

40 x 63mm

Product Color

Red and Grey

Product Net Weight

410g

Product Size

96 x 193 x 47mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

24pcs

Standard Carton Measurement

610 x 450 x 355mm (0.097 CBM Per Standard Carton)

Standard Carton Gross Weight

19kg

﹛

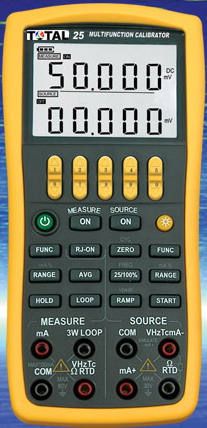

VC25 Multi-function Process Calibrator

Detailed Product Description

Measuring function Range Measuring range Resolving power Accuracy Remark
DC Voltage 50mV -5.000mV55.000mV 1米V 0.02%+10 input impedance: about100M次
500mV -10.00mV550.00mV 10米V 0.02%+2
5V -0.1000V5.5000V 0.1mV 0.02%+5 input impedance: 1M次
50V 0.00V55.00V 10mV 0.03%+5
DC Current 50mA -5.000mA55.000mA 1米A 0.02%+2 input impedance: 10次
OHM 500次 About 1mA exciting 0.00次550.00次 0.01次 0.02%+0.1次 Plough voltage:about 2.5V not including the accuracy of down-lead resistance
5K次 About 0.1mA exciting 0.0000 K次5.5000K次 0.1次 0.02%+0.5次
Frequency 100Hz 2Hz110.0Hz 0.1Hz ㊣2 input impedance: 100 k次 or more Square wave at least 1Vp-p 50% duty cycle
1KHz 0.100KHz1.100KHz 1Hz
10KHz 0.10KHz11.0KHz 0. 1KHz
Thermocouple R -40∼C1760∼C 1∼C -4500 : 1.8 501760  : 1.5 Adopt ITS-90  thermometric scale not including the accuracy of inner temperature compensatory error
S -20∼C1760∼C
K -200∼C950∼C 0.1∼C -2000    : 1.2 01370    : 0.8
E -200∼C500∼C -2000  : 0.9 01000    : 1.5
J -200∼C700∼C -2000    : 1.0 01200    : 0.7
T -200∼C400∼C -2000    : 1.0 0400     : 0.7
N -200∼C1000∼C -2000    : 1.5 01300    : 0.9
B 400∼C1800∼C 1∼C 400800   : 2.2 8001000  : 1.8 10001800 : 1.4
Thermo resistance PT100 -200∼C700∼C 0.1∼C -2000    : 0.5 0400     : 0.7 400850   : 0.8 PT100-385 thermometric scale not including the accuracy of down-lead resistance
PT1000 -200∼C630∼C -200100  : 0.22 100300   : 0.3 300630   : 0.4
Cu50 -50∼C150∼C -500     : 0.5 0150     : 0.7
Switch mete measure About 1mA exciting   CLOSE / OPEN
Continuity test 500次 About 1mA exciting ≒50次 vocalism 0.01次

﹛

﹛

﹛

﹛

﹛

VC01 Temperature Simulator Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Specifications:
1) Analogue output 8 types of thermocouple
2) 2 types of thermo-resistance
3) DCV output and resistance analogue output
4) MV and resistance output function can take the calibration of process
    calibration of extra temperature
5) Celsius scale/Fahrenheit scale displaying
6) 5-digits LCD easy keyboard operation
7) Auto calibrate function
8) Small, suitable for field operation
9) Color: dark gray
10) Size: 20 x 100 x 40mm
Inner packing:
Color box
﹛

VC02  Thermocouple Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Out put Range:
Voltage: 100mV/1000mV
Thermometer:
R: -40-17600C
S: -20-17600C
B: 400-18000C
E: -200-10000C
K: -200-13700C
J: -200-12000C
T: -200-4000C
N: -200-13000C
Measuring Function:
Input range:
Voltage: 100mV
Thermometer: R: -40-17600C
S: -20-17600C
B: 400-18000C
E: -200-10000C
K: -200-13700C
J: -200-12000C
T: -200-4000C
N: -200-13000C

﹛

VC03  RTD Calibrator

﹛

PDF catalogue/user manual

﹛

Output Function









Output

Range

Output range

Resolution

Accuracy

Explanation

Resistance



400次

0.0~450.0次

0.1次

㊣0.05% Setting Value ㊣0.2次

㊣1mA exciting current Note1.2

Thermo-resistance



Pt100

 -200.0~850.0∼C

0.1∼C

㊣0.05% Setting Value ㊣0.6∼C

㊣1mA exciting current use Pt100-385

Cu50

 -50.0~150.0∼C

0.1∼C

 Note1.2

㊣1mA excitong current Note1.2

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

﹛

VC04 Voltage/mA Source Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Input range:
Voltage: 10 V
Current: 20mA
Analogue transducer: -20mA
Loop power: 24V
General Characters:
Power: 9V battery or AC power adapter
Max. allowable voltage: 30V
Size: 200 x 100 x 40mm (with hoster)
Accessories: Operation manual, test line CF-36 (PROBE WITH ALLIGATOR CLIP)

﹛

﹛

VC05 Loop Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Specifications:
1) 5-digital LCD display
2) Output and measure DC V: 20mA
3) Loop current measure DC V: 28V
4) Can simulate the output of analogue transducer
5) Can supply 24V loop current
6) Can test the switch mode, take operation from zero to full scale
7) Can produce fast and slow auto inclined wave of 4
8) 20mA current
9) Panel auto calibrate
10) Auto power-off setting functions
11) Color: dark gray
12) Size: 200 x 100 x 40mm

﹛

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
