LCR Meter

(LCR Multimeter, LCR DMM, Inductance&Capacitance&Resistance Meter, LC meter, LC Multimeter, Inductance&Capacitance Meter)

NAME:

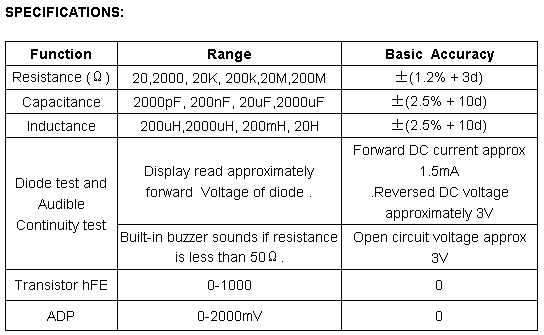

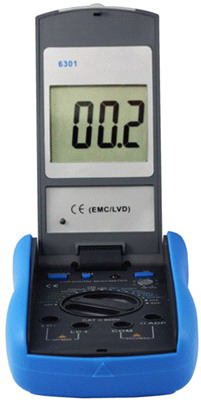

DT-6301 3 1/2 DIGITAL LCR MULTIMETER

﹞Function: Inductance Capacitance Resistance, Transistor hFE test, Diode and Continuity test.,ADP
﹞ Display : 3 1/2 digit big LCD max. Indication 1999.
﹞ EL Back light and hold key
﹞ Safety:According to EN61010-1 protection class ｊ overvoltage category(CAT ｋ 600V) pollution degree 2.
﹞ Power supply : 9V Zinc-carbon battery.
﹞ Size: 155mm℅97mm℅50mm.
﹞ Weight: Approx 320g (including battery)

NAME:

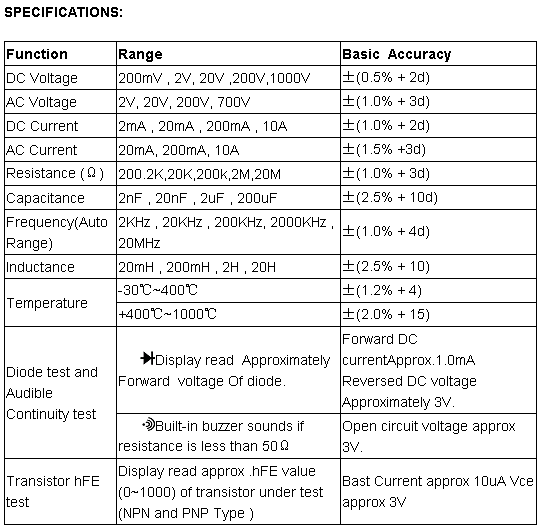

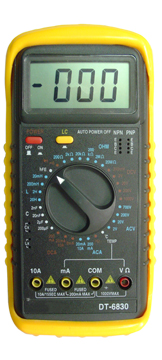

DT-6830 3 1/2 DIGITAL LCR MULTIMETER

﹞ Function : DC/AC voltage, DC/AC Current, Resistance, Capacitance, Inductance, Frequency (Auto-range), Temperature, Transistor hFE test, Diode and Audible Continuity Test
﹞ Display : 3 1/2 digit big LCD max. Indication 1999
﹞ Auto power off / Auto-Zero & Auto-Polarity
﹞ Safety:According to EN61010-1 protection class ｊ overvoltage category(CAT ｋ 600V) pollution degree 2.
﹞ Power supply : 9V Zinc-carbon battery .
﹞ Size : 194mm℅91mm℅44mm)
﹞ Weight : Approx 320g (including battery)

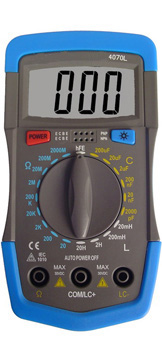

Product name: XHST4070L 3 1/2 DIGITAL LCR MULTIMETER

1. Function
•Inductance Capacitance Resistance, Transistor hFE test,Dual-slope-A/D converter uses C-MOS technology for auto-zeroing ﹜polarity selection and over-range indication. Full overload protection is provided
• Display : 3 1/2 digit big LCD max. Indication 1999.
• Back light
• Safety:According to EN61010-1 protection class II overvoltage category(CAT III 600V) pollution degreen 2.
• Power supply : 9V Zinc-carbon battery

2. Packing
• Each item in one color box
• Dimension:  143x75x32mm(with holster)
• Ctn size:       478℅318℅315mm
• Q＊TY / Ctn:      60pcs
• Gw/Nw:         17/16KG
• Minimum Q'ty: 100pcs

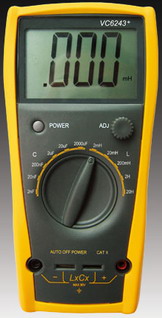

Product name:  VC6243+  3 1/2 Digital LC meter

Features:

1.New type holster, streamline design;
2.Large LCD makes the reading clearly;
3.Strong antimagnetic and anti-jamming performance;
4.full protect function, capacitor with the function of self discharge;

5.Unit symbol display, easy to operate.



Technical data:

Basic function

Range

Basic accuracy

Capacitance

2nF/20nF/200nF/2uF/20uF/2000uF

㊣(2.5%+10)

Inductance

2mH/20mH/200mH/2H/20H



Special function

VC6243+

Low battery indication

Approx. less than 7.5V

capacitor discharge protect

﹟

Auto power off

It will power down about 30 minutes if no any measure.

Function protect

﹟

Anti-shock protect

﹟

Sampling rate

3times/s

Operation way

Manual range

Max. display

1999

LCD size

65℅41mm

Battery

9V (6F22)

Power dissipation

Quiescent current approx. 4mA

General characteristic:

Color

Body: dark grey, holster: orange (pantone No.ㄩ1495V)

Weight

290gㄗincluding batteryㄘ

Meter size

185℅93℅35mm

Standard accessory

Test leads, battery, manual

Packing

Gift box

Standard packing per carton

30pcs

Carton size

45.5℅32.5℅43.5cm

Standard G.W per carton

17kg

﹛

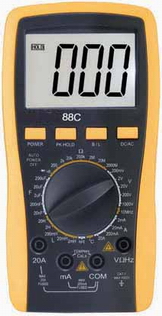

Product name: VC88C 3 1/2 Digital LCR meter

Detailed Product Description

Features:
1) 3 1/2 digital multimeter, 30 ranges, 70 x 50mm LCD display, 1999 counts
    max.
2) Back light, data hold
3) Diode, triode performance testing, continuity test (audible)
4) AC frequency response: 40 - 400Hz
5) DC voltage: 200mV/2V/20V/200V/1000V (㊣0.5%+3)
6) AC voltage: 200mV/2V/20V/200V/750V (㊣0.8%+5)
7) DC current: 2mA/20mA/200mA/20A (㊣0.8%+3)
8) AC current: 2mA/20mA/200mA/20A (㊣1.0%+5)
9) Resistance: 200ohm / 2kohm / 20kohm / 200kohm / 2Mohm / 20Mohm /
    2000Mohm (㊣0.8%+3)
10) Capacitance: 20nF200nF//2uF/20uF/200uF (㊣2.5%+20)
11) Inductance: 2mH/20mH/200mH/2H/20H (2.5%+20)
12) Sampling rate: 3 times/s
13) Color: dark gray
14) Size: 189 x 97 x 35mm

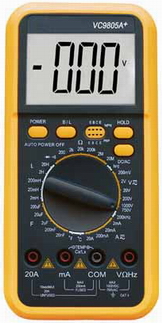

Product name: VC9805A+ 3 1/2 Digital LCR meter

Detailed Product Description

Specifications:
1) 3-1/2 digital multimeter
2) 30 ranges, 65 x 35mm LCD display, 1,999 counts max.
3) Back light and data hold
4) Diode, triode performance test, continuity buzzer
5) Low battery indication
6) Function, restorable fuse and shockproof protection
7) Input impedance: 10M次
8) Sampling rate: 3 times/s
9) AC frequency response: 40 ~ 400Hz
10) DC voltage: 200mV/2V/20V/200V/1000V (0.5%+3)
11) AC voltage: 200mV/2V/20V/200V/700V (0.8%+5)
12) DC current: 2mA/20mA/200mA/20A (0.8%+3)
13) AC current: 2mA/20mA/200mA/20A (1.0%+5)
14) 200次 / 2k次 / 20k次 / 200k次 /2M次 / 20M次 (0.8%+3)
15) Capacitance: 20nF/200nF/2uF/20uF/200uF (2.5%+20)
16) Inductance: 2mH/20mH/200mH/2H/20H (2.5%+20)
17) Frequency: 200kHz (3.0%+15)
18) Celsius: -40 ~ +1,000∼C (0.8%+4)
19) Fahrenheit: 0 ~ 1,832∼F (0.75%+5)
20) Color: dark gray
21) Dimensions: 190 x 88.5 x 27.5mm

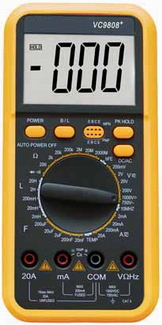

Product name: VC9808+ 3 1/2 Digital LCR meter

Detailed Product Description

Specifications:
1) 3-1/2 digital multimeter
2) 30 ranges, 65 x 35mm LCD display, 1,999 counts max.
3) Back light and data hold
4) Diode, triode performance test, continuity buzzer
5) Low battery indication
6) Function, restorable fuse and shockproof protection
7) Input impedance: 10M次
8) Sampling rate: 3 times/s
9) AC frequency response: 40 ~ 400Hz
10) DC voltage: 200mV/2V/20V/200V/1000V (0.5%+3)
11) AC voltage: 200mV/2V/20V/200V/700V (0.8%+5)
12) DC current: 2mA/20mA/200mA/20A (0.8%+3)
13) AC current: 2mA/20mA/200mA/20A (1.0%+5)
14) 200次 / 2k次 / 20k次 / 200k次 /2M次 / 20M次 (0.8%+3)
15) Capacitance: 20nF/200nF/2uF/20uF/200uF (2.5%+20)
16) Inductance: 2mH/20mH/200mH/2H/20H (2.5%+20)
17) Frequency: 200kHz (3.0%+15)
18) Celsius: -40 ~ +1,000∼C (0.8%+4)
19) Fahrenheit: 0 ~ 1,832∼F (0.75%+5)
20) Color: dark gray
21) Dimensions: 190 x 88.5 x 27.5mm

﹛

LCR Meter XHST4070G/6243G/6013G

                    Capacitance and inductance Meter DY6243G

Specifications:

MODEL

XHST4070G

XHST6243G

XHST6013G

Capacitance

200P/2n/20n/200n/2µ/20µ/

2000P/20n/200n/2µ/20µ/

200P/2n/20n/200n/2µ/20µ/

200µ/2000µF

200µ/2000µF

200µ/2000µ/20000µF

㊣(2%+5)

㊣(2%+5)

㊣(0.5%+10)

Inductance

200µ/2m/20m/200m/2/20H

2m/20m/200m/2/20H

-

㊣(2%+5)

㊣(2%+5)

Resistance

20/200/2K/20K/200K/2M/20M次

-

-

㊣(0.8%+2)

Data Hold

yes

yes

yes

Function Symbol Display

yes

-

-

LCD Background Light

yes

-

-

Low Battery Warning

yes

yes

yes

LCD MAX. Count

1999

1999

1999

LCD Screen Size

49 x 60mm

36 x 65mm

36 x 65mm

General Characteristics:

MODEL

XHST4070G

XHST6243G

XHST6013G

Power

9V(6F22)

Product Size

200 x 85 x 38 mm

198 x 98 x 58 mm

Product Net Weight

700g

580g

Standard individual packing

gift box

Standard Quantity per Carton

30 pcs.

Measurement of Standard Carton

485*275*490mm (0.064 CBM)

480*370*488mm (0.059 CBM)

Gross weight of Standard Carton

18kgs

25.5kgs

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
