Digital RCD (ELCB) Tester, Digital RCD (ELCB) Detector

¡¡

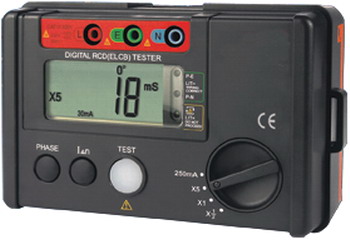

Digital RCD  (ELCB) Tester RCD8581

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x5; 250mA (Fast Trip)

Yes

Trip Current Accuracy

+2% ~ +8% (x1)

Yes

Trip Time

1000ms, 300ms(x5), 40ms(250mA)

Yes

Trip Time Accuracy

¡À(0.6%¡À 4)

Yes

Trip Time Resolution

1ms

Yes

Operational Voltage

(195 ~ 253V) / 50Hz

Yes

Special Functions



AUTO RAMP Function

Test the trip time and trip current



Connections Check Function

Lamps Indication

Yes

Phase Switch

0¡ã and 180¡ã

Yes

Data Hold

Freeze the digital trip time display for several seconds

Yes

Power off Buzzer



Yes

Mis-Operation Buzzer



Yes

Over Load Display

OL

Yes

Full Icon Display



Yes

Disconnect Buzzer



Yes

Fused



Yes

GENERAL CHARACTERISTICS:

Power

No Battery is required

LCD Size

71 mm x 34 mm

Product Color

Red & Grey

Product Net Weight

400g

Product Size

160 x 100 x 71 mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20 pcs

Standard Carton Measurement

440 x 430 x 335 mm (0.063 CBM Per Export Carton)

Standard Carton Gross Weight

14kg

¡¡

Digital RCD  (ELCB) Tester RCD8582

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x5; AUTO RAMP

Yes

Trip Current Accuracy

+2% ~ +8% (x1)

Yes

Trip Time

1000ms, 300ms(x5), 40ms(250mA)

Yes

Trip Time Accuracy

¡À(0.6%¡À4)

Yes

Trip Time Resolution

1ms

Yes

Operational Voltage

(195 ~ 253V) / 50Hz

Yes

Special Functions



AUTO RAMP Function

Test the trip time and trip current

Yes

Connections Check Function

Lamps Indication

Yes

Phase Switch

0¡ã and 180¡ã

Yes

Data Hold

Freeze the digital trip time display for several seconds

Yes

Power off Buzzer



Yes

Mis-Operation Buzzer



Yes

Over Load Display

OL

Yes

Full Icon Display



Yes

Disconnect Buzzer



Yes

Fused



Yes

GENERAL CHARACTERISTICS:

Power

No Battery is required

LCD Size

71 mm x 34 mm

Product Color

Red & Grey

Product Net Weight

400g

Product Size

160 x 100 x 71 mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20 pcs

Standard Carton Measurement

440 x 430 x 335 mm (0.063 CBM Per Export Carton)

Standard Carton Gross Weight

14kg

¡¡

Digital RCD  (ELCB) Tester RCD8583

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x2; x5; AUTO RAMP

Yes

Trip Time

1000ms, 300ms(x5)

Yes

Trip Time Resolution

1ms

Yes

Trip Time Accuracy

¡À(0.6%¡À4)

Yes

Range of Voltage

0¡«400VAC£¨45¡«65Hz£©

Yes

Voltage Accuracy

¡À(5%¡À2)

Yes

Operational Voltage

230V¡À10%/ 50Hz

Yes

Safety

CAT III300V

Yes

Special Functions



Connections Check Function

Yes

Frequency measurement

Yes
Over temperature measurement be automatic ban Yes
Abnormal voltage measurement be automatic ban Yes

Data Hold

Yes

Power off Buzzer

Yes

Fused

Yes

Backlight

Yes

Low voltage display

Yes

GENERAL CHARACTERISTICS:

Power

1.5V(AA)¡Á8

LCD Size

125mm x 37mm

Product Color

Red & Grey

Product Net Weight

1000g

Product Size

210x 175x90mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

510x 330x 300mm

Standard Carton Gross Weight

15kg
¡¡

¡¡

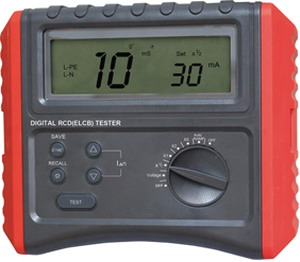

Digital RCD  (ELCB) Tester RCD8585

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x2; x5; AUTO RAMP

Yes

Trip Time

1000ms, 300ms(x5)

Yes

Trip Time Resolution

1ms

Yes

Trip Time Accuracy

¡À(1%+3)

Yes

Range of Voltage

60¡«400VAC£¨45¡«65Hz£©/ 60¡«400VDC

Yes

Voltage Accuracy

¡À(3%+5)

Yes

Operational Voltage

230V¡À10%/ 50Hz

Yes

Safety

CAT III300V

Yes

Special Functions



Connections Check Function

Yes
Max measurement current 2.5A Yes
Remote control measurement Yes

Frequency measurement

Yes
Over temperature measurement be automatic ban Yes
Abnormal voltage measurement be automatic ban Yes

Data Hold

Yes

Power off Buzzer

Yes

Fused

Yes

Backlight

Yes

Low voltage display

Yes

GENERAL CHARACTERISTICS:

Power

1.5v(AA)¡Á8

LCD Size

125mm x 37mm

Product Color

Red & Grey

Product Net Weight

1000g

Product Size

210x 175x90mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

510x 330x 300mm

Standard Carton Gross Weight

15kg

¡¡

¡¡

¡¡

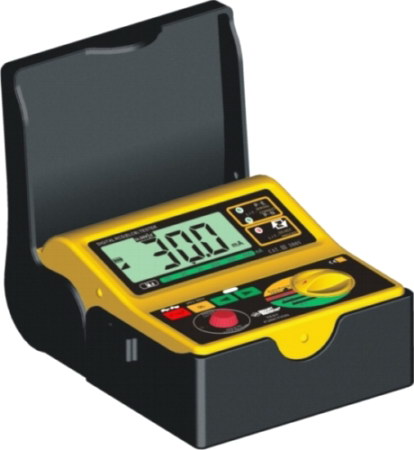

GENERAL FEATURES & SPECIFICATIONS

digital RCD tester

AR5406

Working Voltage

230V¡À15%Hz

Creepage Level Selection

10/20/30/200/300/500mA

Fault Action Time

Max.1000mS

Accuracy

Electric Current : ¡À8%

Voltage : 0.6% ¡À4dgt

Working Temperature

0¡æ¡«40¡æ

Working Humidity

30¡«90%RH

Testing Button

Yes

Low Voltage Indication

Yes

PACKING INFORMATION

Product Net Weight

2000G

Product Size

163 * 136 * 80mm

Packing

Gift Box

Standard Quantity Per Carton

5

Standard Carton Size

61.0 * 58.5 * 313cm

Standard Carton Gross Weight

16.0kg

¡¡

¡¡

Socket Tester RCD XHST207



Main Features:
-Swift and efficient testing of RCDs;
-Definite indication of socket wiring;
-PE fault detection;
-Easy and safe, clear indication on LCD;

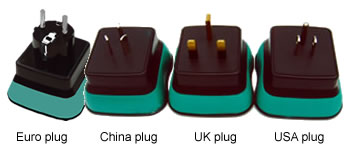

-4 versions available: Euro plug, UK plug, USA plug, China plug;
-Customized version is welcomed;
-6 indications range: wiring ok, PE open, L open, N open, L/N reverse, L/PE reverse, L/PE reverse, PE open.

Specifications:

MODEL XHST207
Testing Voltage AC 230V¡À10%
Frequency 50-60Hz
Contact Voltage Limit < AC 50V (relative to ground)
Overload Voltage Protection AC/DC 300V
Working Temperature 0ºC~40ºC
Working Humidity 80%
PE Fault Detection yes
Reaction Limit < AC 50V (relative to ground)

General Characteristics:

Product Size EU version 72 * 78 * 80mm
UK, US, CN version 72 * 78 * 55mm
Product Net Weight 40g
Standard individual packing blister card
Standard Quantity per Carton 55 pcs.
Measurement of Standard Carton EU version 795*525*245mm (0.1023 CBM)
UK, US, CN version 790*407*240mm (0.07 CBM)
Gross weight of Standard Carton 8kgs
¡¡

Socket tester RCD XHST207B

Features:
-Swift and efficient testing of RCDs;
-Definite indication of socket wiring;
-4 versions available: Euro plug, UK plug, USA plug, China plug;
-Customized version is welcomed;
-6 indications range: wiring ok, PE open, L open, N open, L/N reverse, L/PE reverse, L/PE reverse, PE open.

Specifications:

MODEL XHST207B
Testing Voltage AC 230V¡À10%
Frequency 50-60Hz
Contact Voltage Limit < AC 50V (relative to ground)
Overload Voltage Protection AC/DC 300V
Working Temperature 0ºC~40ºC
Working Humidity 80%
Reaction Limit < AC 50V (relative to ground)

General Characteristics:

Product Size EU version 72 * 78 * 80mm
UK, US, CN version 72 * 78 * 55mm
Product Net Weight 40g
Standard individual packing blister card
Standard Quantity per Carton 55 pcs.
Measurement of Standard Carton EU version 795*525*245mm (0.1023 CBM)
UK, US, CN version 790*407*240mm (0.07 CBM)
Gross weight of Standard Carton 8kgs
¡¡

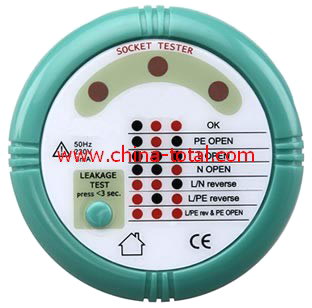

Socket Polarity Tester RCD XHST207C

Features:

-Swift and efficient testing of RCDs by 30mA

-Definite indication of socket wiring

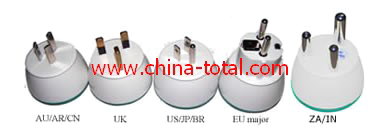

-4 versions available: Euro major(Schuko and CEE7/7), UK, USA/Japan/Brazil, Australia/Argentina/China plug.

-Customized version is welcomed

¡¡

Specifications:

MODEL

XHST207C

Testing Voltage

AC 230V¡À10% or AC 110V¡À10%

Frequency

50-60Hz

Contact Voltage Limit

< AC 50V (relative to ground)

Overload Voltage Protection

AC/DC 300V

Working Temperature

0ºC~40ºC

Working Humidity

80%

RCD test

30mA

Reaction Limit

< AC 50V (relative to ground)

¡¡

General Characteristics:

Product Size

EU version

60 * 60 * 65mm

UK, US/JP/BR, AU/AR/CN version

60 * 60 * 60mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

55 pcs.

Measurement of Standard Carton

EU version

795*525*245mm (0.1023 CBM)

UK, US/JP/BR, AU/AR/CN version

790*407*240mm (0.07 CBM)

Gross weight of Standard Carton

8kgs
¡¡

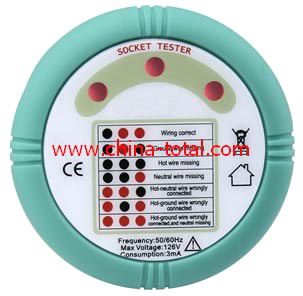

Socket Polarity Tester RCD XHST207D

Features:

-Definite indication of socket wiring

-4 versions available: Euro major(Schuko and CEE7/7), UK, USA/Japan/Brazil, Australia/Argentina/China plug.

-Customized version is welcomed

¡¡

Specifications:

MODEL

XHST207D

Testing Voltage

AC 230V¡À10% or AC 110V¡À10%

Frequency

50-60Hz

Contact Voltage Limit

< AC 50V (relative to ground)

Overload Voltage Protection

AC/DC 300V

Working Temperature

0ºC~40ºC

Working Humidity

80%

Reaction Limit

< AC 50V (relative to ground)

¡¡

General Characteristics:

Product Size

EU version

60 * 60 * 65mm

UK, US/JP/BR, AU/AR/CN version

60 * 60 * 60mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

55 pcs.

Measurement of Standard Carton

EU version

795*525*245mm (0.1023 CBM)

UK, US/JP/BR, AU/AR/CN version

790*407*240mm (0.07 CBM)

Gross weight of Standard Carton

8kgs

¡¡

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
