Automotive sound level meter
For
other models suitable for
automotive,
please click here
sound level meter
|
|
|
GENERAL
FEATURES &SPECIFICATIONS |
| ¡¡ |
| ¡¡ |

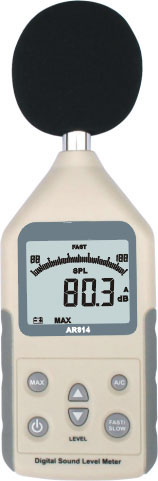

AR-814
|
| Measuring
Range |
30¡«130dBA
|
|
35¡«130dBC
|
| Accuracy |
¡À1.5dB
|
| Frequency Range |
31.5HZ-8.5KHZ
|
| Linearity Range |
50dB
|
| AC/DC Output |
¡Ì
|
| Auto Power Shut Off |
¡Ì
|
| Low Battery Indication |
¡Ì
|
| Over Range Indication |
¡Ì
|
| Digit & Resolution |
5Digits & 0.1dB
|
| Time Weighting Selection |
Fast/Slow
|
| Microphone |
1/2 Inch Electret Condenser
Microphone |
| Frequency Weighting |
A & C
|
| Frequency Weighting |
¡Ì
|
| Max Hold Function |
¡Ì
|
| RS232 PC Interface |
-
|
| Calendar function |
- |
| Sampling Frequency |
2 times/sec
|
| ¡¡ |
| ¡¡ |
¡¡ |
|
GENERAL CHARACTERISTICS |
|
Power |
9V (Alkaline or
DC Adapter)
|
| LCD size |
30*50mm
|
| Product Color |
Ivory
|
| Product Net
Weight |
178g
|
| Product Size |
207*70*29mm
|
|
|
PACKING
INFORMATION |
|
Packing |
Gift box
|
| Standard
Quantity Per Carton |
20
|
| Standard Carton
Size |
62.5*45.0*28.5cm
|
| Standard Carton
Gross Weight |
14.68kg
|
| Packing2(other
countries) |
Blister
|
| Standard
Quantity Per Carton |
20
|
| Standard Carton
Size |
41.0*37.5*33.2cm
|
| Standard Carton
Gross Weight |
5.76kg
|
|
|
|
|
|
GENERAL FEATURES
& SPECIFICATIONS |
| ¡¡ |
| ¡¡ |
AR-824
|
| Measuring Range |
30¡«130dBA
|
|
35¡«130dBC
|
| Accuracy |
¡À1.5dB
|
| Frequency Range |
31.5HZ-8.5KHZ
|
| Linearity Range |
50dB
|
| AC/DC Output |
¡Ì
|
| Auto Power Shut Off |
¡Ì
|
| Low Battery Indication |
¡Ì
|
| Over Range Indication |
¡Ì
|
| Digit & Resolution |
5Digits & 0.1dB
|
| Time Weighting Selection |
Fast/Slow
|
| Microphone |
1/2 Inch
Electret Condenser Microphone |
| Frequency Weighting |
A & C
|
| Frequency Weighting |
¡Ì
|
| Max Hold Function |
¡Ì
|
| RS232 PC Interface |
-
|
| Calendar function |
- |
| Sampling Frequency |
2 times/sec
|
| ¡¡ |
| ¡¡ |
¡¡ |
|
GENERAL CHARACTERISTICS |
| Power |
9V (Alkaline or DC
Adapter)
|
| LCD size |
30*50mm
|
| Product Color |
Ivory
|
| Product Net Weight |
300g(include
battery)
|
| Product Size |
265*70*35mm
|
|
|
PACKING INFORMATION |
| Packing |
Gift box
|
| Standard Quantity
Per Carton |
20
|
| Standard Carton Size |
62.5*45.0*28.5cm
|
| Standard Carton
Gross Weight |
17.2kg
|
| Packing2(other
countries) |
Blister
|
| Standard Quantity
Per Carton |
20
|
| Standard Carton Size |
41.0*37.5*33.2cm
|
| Standard Carton
Gross Weight |
6.2kg
|
|
|
|
|
|
GENERAL FEATURES
& SPECIFICATIONS |
| ¡¡ |
| ¡¡ |

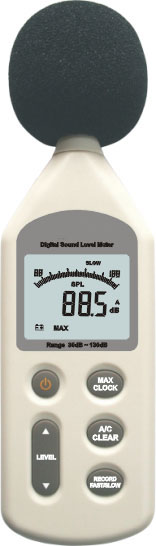

AR-834
|
| Measuring Range |
30¡«130dBA
|
|
35¡«130dBC
|
| Accuracy |
¡À1.5dB
|
| Frequency Range |
31.5HZ-8.5KHZ
|
| Linearity Range |
50dB
|
| AC/DC Output |
¡Ì
|
| Auto Power Shut Off |
¡Ì
|
| Low Battery Indication |
¡Ì
|
| Over Range Indication |
¡Ì
|
| Digit & Resolution |
5Digits & 0.1dB
|
| Time Weighting Selection |
Fast/Slow
|
| Microphone |
1/2 Inch
Electret Condenser Microphone |
| Frequency Weighting |
A & C
|
| Frequency Weighting |
¡Ì
|
| Max Hold Function |
¡Ì
|
| RS232 PC Interface |
¡Ì
|
| Calendar function |
¡Ì |
| Sampling Frequency |
2 times/sec
|
| ¡¡ |
¡¡ |
|
GENERAL CHARACTERISTICS |
| Power |
6V (Alkaline or DC
Adapter)
|
| LCD size |
30*50mm
|
| Product Color |
Ivory
|
| Product Net Weight |
300g(include
battery)
|
| Product Size |
265*70*35mm
|
|
|
PACKING INFORMATION |
| Packing |
Gift box
|
| Standard Quantity
Per Carton |
20
|
| Standard Carton Size |
62.5*45.0*28.5cm
|
| Standard Carton
Gross Weight |
18.7kg
|
| Packing2(other
countries) |
Blister
|
| Standard Quantity
Per Carton |
20
|
| Standard Carton Size |
41.0*37.5*33.2cm
|
| Standard Carton
Gross Weight |
6.2kg
|
|
|
