Rubber Grommets, Barrel Cushions
Single Hole Rubber Grommets

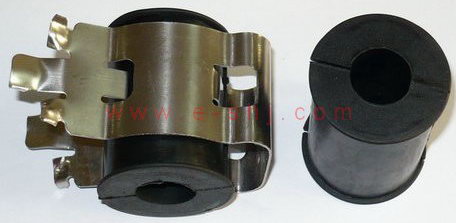

Our Rubber Grommets are designed to manage
today's smaller coax cables, power cables, fiber etc. on sites.
These rubber inserts fit inside Snap-In Hangers, Butterfly
Hangers, or Coax Blocks for easy installation, see chart below
for proper hanger size.
Manufactured from UV resistant EPDM rubber which is durable in
extreme conditions.
|
Part No.
|
Hole Size
|
Photo |
|
T465251 |
1/2" |
 |
|

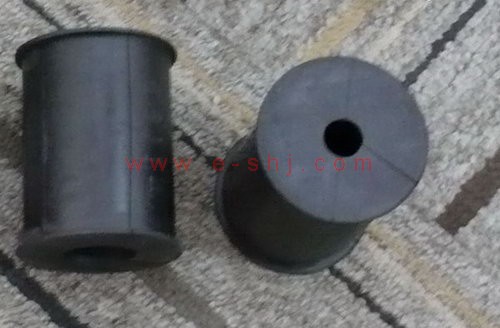

T465252
|
3/8" |
 |
|
T465253
|
5/8" |
 |
|
CABLE SIZE & TYPE |
# OF HOLES |
HOLE SIZE |
Hanger Size |
|
1/4'' Coax (7 - 9mm cables) |
1 |
.28 - .35 (7 - 9mm) |
7/8'' |
|
LMR-400, 3/8'' Flex, RG11U |
1 |
.39 - .42 (10 - 12mm) |
1/2'' |
|
LMR-400, 3/8'' Flex, RG11U |
1 |
.39 - .42 (10 - 12mm) |
7/8'' |
|
5/8'' Power Cable |
1 |
.67 - .79 (17 - 20mm) |
1-1/4'' |
|
22 - 25mm Cables |
1 |
.87 - .98 (22 - 25mm) |
1-1/4'' |
|
27 - 29mm Cables |
1 |
1.06 - 1.14 (27 - 29mm) |
1-1/4'' |
Single Hole Rubber Grommet, Barrel Cushion, Cushion Insert
|
Part No.
|
Hole Size
|
Photo |
|

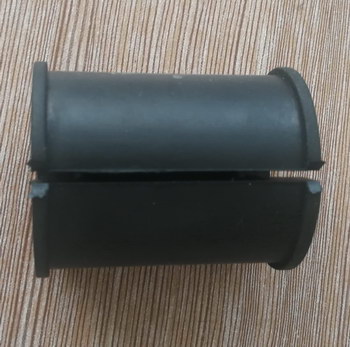

RG1-114 |
3/8"-7/8" (10MM-22MM) to be used with 1-1/4"
Snap-In |
  |
Double
Hole Rubber Grommets, CUSHION INSERT
Rubber Grommet with (1) 10mm hole and (1) 20.2mm hole FOR
1-5/8" SNAP-IN
|
Part No.
|
Description
|
|
|
T46525D158 |
1-5/8" |
 |
Double
Hole Rubber Grommets, CUSHION INSERT
Rubber Grommet with (1) 10mm & (1) 24mm RUBBER GROMMET
"CUSHION INSERT" FOR 1-5/8" SNAP-IN
|
Part No.
|
Description
|
|
|

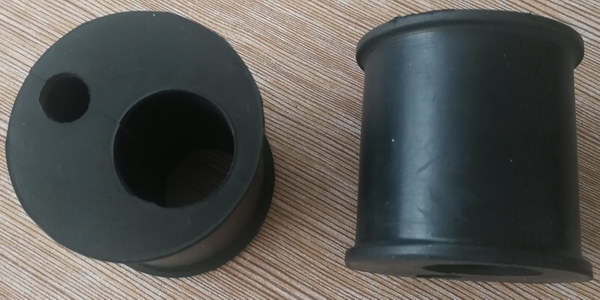

T59633
(diameter 48mm) |
1-5/8" |
 |

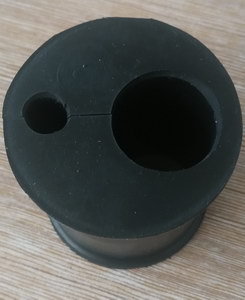

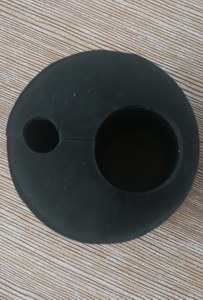

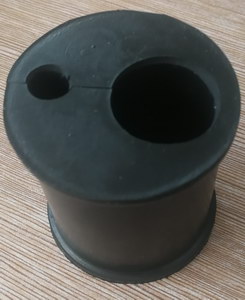

Double
Hole Rubber Grommets, CUSHION INSERT
Rubber Grommet with (1) 10mm & (1) 24mm RUBBER GROMMET "CUSHION INSERT" FOR
1-5/8" SNAP-IN
|
Part No.
|
Description
|
|
|

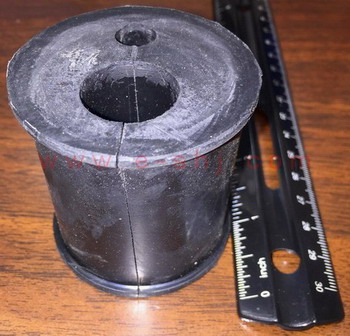

T596333-B
(diameter50.5mm) |
1-5/8" |
.JPG) .JPG) .JPG) |

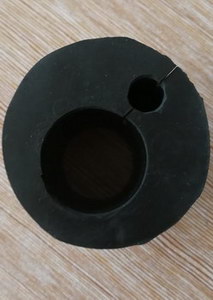

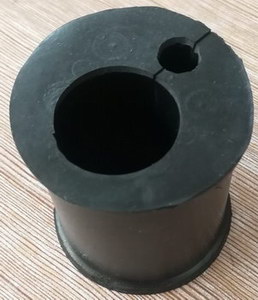

Double
Hole Rubber Grommets, CUSHION INSERT
Rubber Grommet with (1) 10mm & (1) 27.94mm FOR 1-5/8"
SNAP-IN
|
Part No.
|
Description
|
|
|

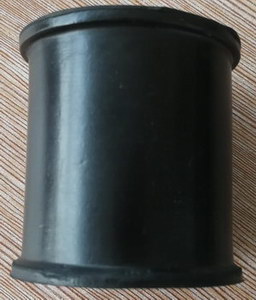

T646924 |
1-5/8" |
.JPG) .JPG)  |

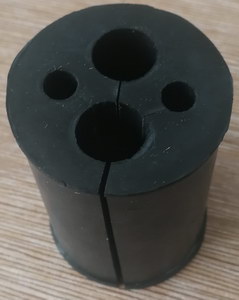

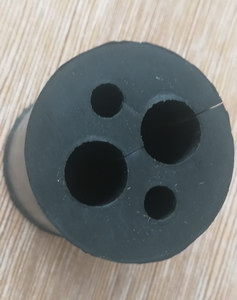

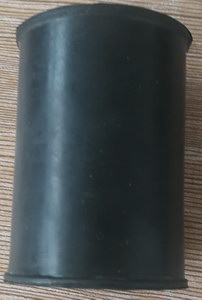

Four
Hole Rubber Grommets, CUSHION INSERT
Rubber Grommet with (2) 12mm & (2) 6mm
RUBBER GROMMET "CUSHION INSERT" FOR 1-1/4" SNAP-IN
|
Part No.
|
Description
|
|
|

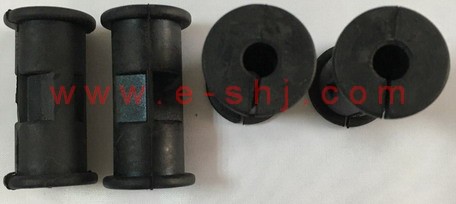

T596331 |
1-/4" |
.JPG) .JPG) .JPG) |
Universal Rubber Grommets
|
Description
|
|
Barrel Cushions - Universal
Universal Barrel Cushions are designed to neatly bundle
smaller cables.
Universal size fits a range of cable diameters and
reduces inventory needs.
Use with Snap-In Hangers, Butterfly Hangers or Coax
Blocks for easy installation (See chart below for
specific hanger size). Manufactured from UV resistant
EPDM rubber which is durable in extreme conditions.
The T4652512 is designed to work with 1/2'' hangers
providing another versatile option for supporting the
smaller cables being used today. Perfect for DAS and
Small Cell Sites.
|
 |
|
Part No. |
CABLE RANGE |
HANGER SIZE |
|
|
0.11''-0.51''
(3-13mm) |
1/2'' |
|
|
0.16''-0.55''
(4-14mm) |
7/8'' |
|
|
0.55''-1.42''
(14-36mm) |
1-5/8'' |
|
|
0.55''-1.77''
(14-45mm) |
2-1/4'' |
|
Rubber Grommets for Elliptical Waveguide
|
Description
|
|
Barrel Cushions - Elliptical Waveguide
Barrel Cushions are designed to manage elliptical
waveguide on sites.
These rubber inserts fit inside Snap-In hangers or Coax
Blocks for easy installation, see chart below for proper
hanger size.
Allows multiple runs with single attachment point.
Manufactured from UV resistant EPDM rubber which is
durable in extreme conditions.
|
 |
|
CABLE SIZE & TYPE |
# OF HOLES |
Hanger Size |
HOLE SIZE |
|
EWP127A, EW127A, E130, EWP132, EW132, E150,
E022 |
2 |
1-5/8'' |
.95'' x .59'' |
|
EWP90S, EWP90, EW90 |
2 |
1-5/8'' |
1.28'' x .76'' |
|
EW85, E105, EP100 |
1 |
1-5/8'' |
1.29'' x .80'' |
|
E015 |
1 |
1-5/8'' |
1.6'' x 1.10'' |
|
E78, EWP77, EW77 |
1 |
1-5/8'' |
1.7'' x 1.0'' |
|
E60, EW60, EWP53S, EWP52, EW52 |
1 |
2-1/4'' |
2.13'' x 1.31'' |
|
EWP63, EW63, EWP63S, E65, EWP64, EW64, EP70,
E011 |
1 |
2-1/4'' |
2'' x 1.16'' |
|
