SPECIAL PROXIMITY SWITCH

SPECIAL PROXIMITY SWITCH PAGE1 PAGE2

Structural category				Cylinder type		Angular column type
Outward appearance code				LM5	LM6	LMF4
Outward appearance illustration

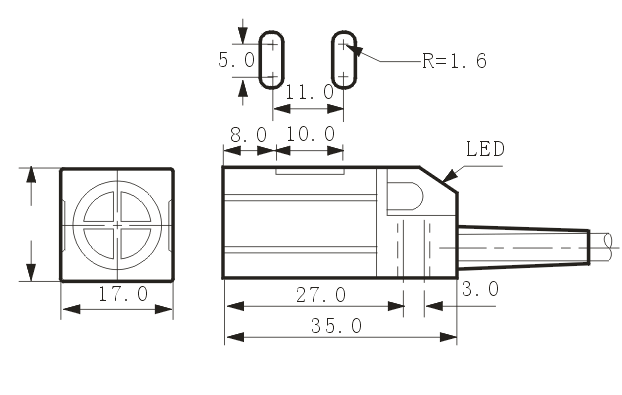

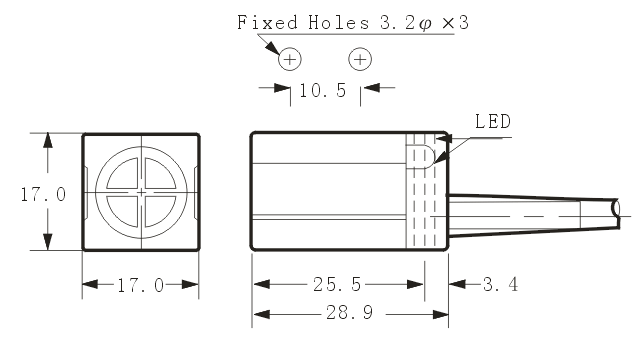

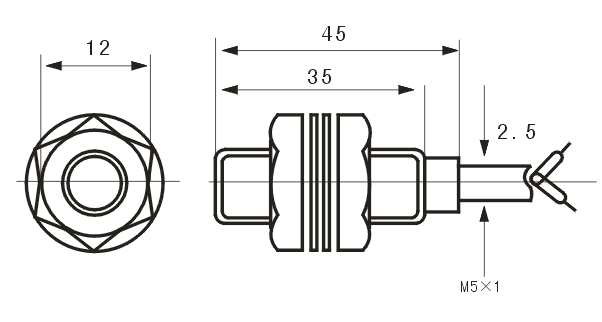

Overall dimensions
Flush	Detection distance			0.7mm	0.7mm	5mm
	DC 6~ 36 VDC	NPN	NO	LM5-3001NA	LM6-3001NA	LMF4-3005NA
			NC			LMF4-3005NB
			NO+NC			LMF4-3005NC
		PNP	NO	LM5-3001PA	LM6-3001PA	LMF4-3005PA
			NC			LMF4-3005PB
			NO+NC			LMF4-3005PC
		two wire system	NO			LMF4-3005LA
		two wire system	NC			LMF4-3005LB
	AC 90~ 250 VAC	SCR Control- label silicon	NO
			NC
			NO+NC
		Relay output
N0n-flush	Detection distance
	DC 6~ 36 VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
		two wire system	NC
	AC 90~ 250 VAC	SCR Control- label silicon	NO
			NC
			NO+NC
		Relay output
Control output		DC		100mA	100mA	200mA
Control output		SCR Relay
Output voltage dropDC/AC				DC < 3V、AC < 10V
Consumption current				DC：<15mA AC：<10mA
Standard detected object				8×8×1(A3 iron)	8×8×1(A3 iron)	20×20×1(A3 iron)
Repeated precision				0.01	0.01	0.03
DC/AC Response frequency				500Hz	500Hz	300Hz
Working environment temperature				-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃
Insulation resistance				50MΩ	50MΩ	50MΩ
Shell material				Metal	Metal	ABS Resin
Protection grade				IP67	IP67	IP67
Alterative model at home and abroad					EZE-X18ME1-M1	PS05-N、PS05-P

Structural category				Angular column type
Outward appearance code				LMF11	LMF21	LMF27
Outward appearance illustration

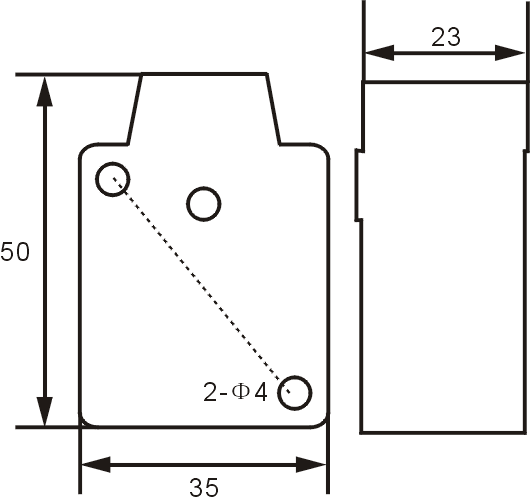

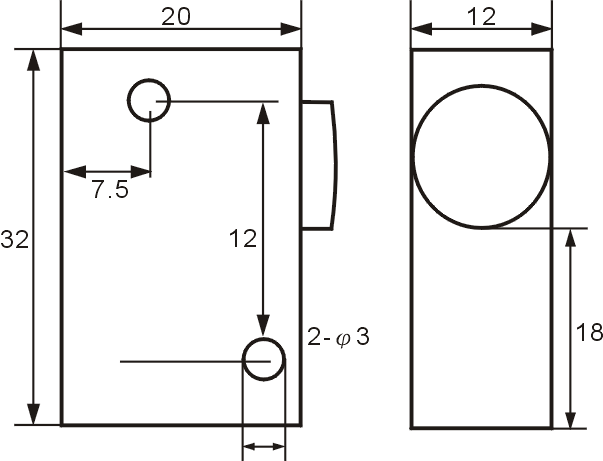

Overall dimensions
Flush	Detection distance			5mm	4mm
	DC 6~ 36 VDC	NPN	NO	LT11-3005NA	LT21-3004NA
			NC	LT11-3005NB	LT21-3004NB
			NO+NC	LT11-3005NC
		PNP	NO	LT11-3005PA	LT21-3004PA
			NC	LT11-3005PB	LT21-3004PB
			NO+NC	LT11-3005PC
		two wire system	NO	LT11-3005LA	LT21-3004LA
		two wire system	NC	LT11-3005LB
	AC 90~ 250 VAC	SCR Control- label silicon	NO
			NC
			NO+NC
		Relay output
N0n-flush	Detection distance					8mm
	DC 6~ 36 VDC	NPN	NO			LMF27-3008NA
			NC			LMF27-3008NB
			NO+NC			LMF27-3008NC
		PNP	NO			LMF27-3008PA
			NC			LMF27-3008PB
			NO+NC			LMF27-3008PC
		two wire system	NO			LMF27-3008LA
		two wire system	NC			LMF27-3008LB
	AC 90~ 250 VAC	Control- label silicon	NO			LMF27-2008A
			NC			LMF27-2008B
			NO+NC
		Relay output
Control output		DC		200mA	200mA	200mA
Control output		SCR Relay				500mA
Output voltage dropDC/AC				DC < 3V、AC < 10V
Consumption current				DC < 15mA AC < 10mA
Standard detected object				20×20×1(A3 iron)	12×12×1(A3 iron)	18×18×1(A3 iron)
Repeated precision				0.05	0.05	0.05
DC/AC Response frequency				500Hz	500Hz/5Hz	500Hz/10Hz
Working environment temperature				-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃
Insulation resistance				50MΩ	50MΩ	50MΩ
Shell material				ABC Plastic
Protection grade				IP67	IP67	IP67
Alterative model at home and abroad				PL-05N PL-05P

Structural category				Connector type
Outward appearance code				LMF60	LMF14	LMF340	LMF380
Outward appearance illustration

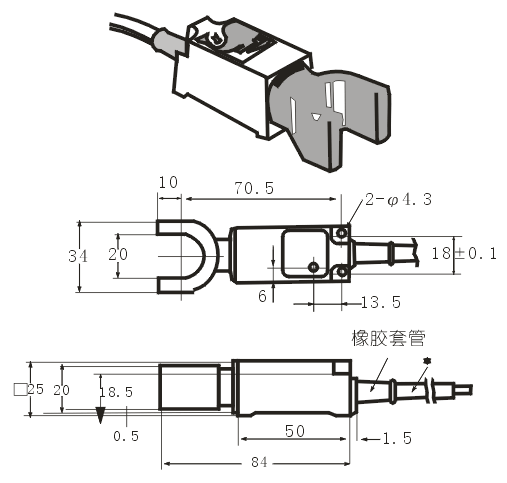

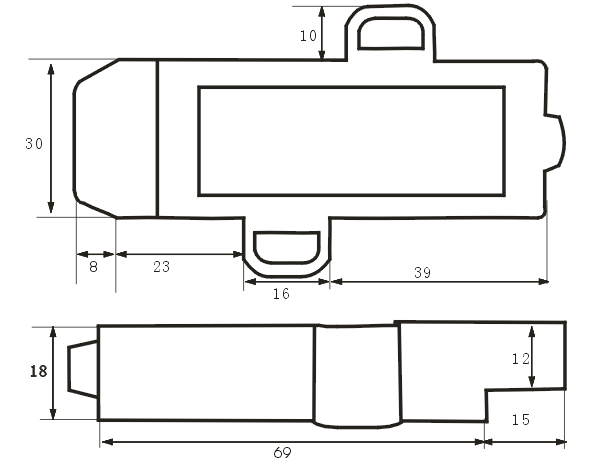

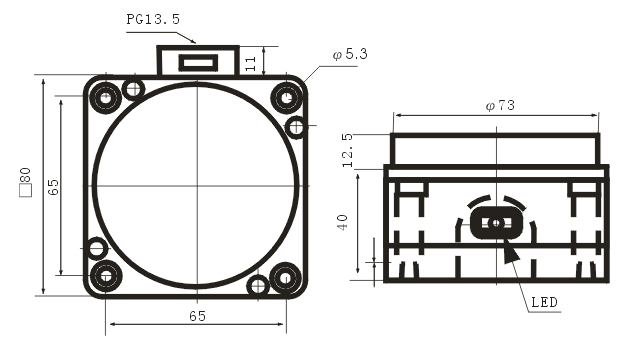

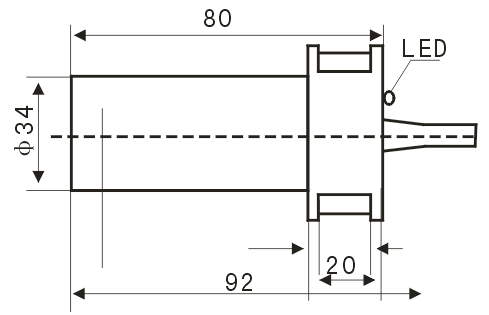

Overall dimensions
Flush	Detection distance
	DC 6~ 36 VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
		two wire system	NC
	AC 90~ 250 VAC	SCR Control- label silicon	NO
			NC
			NO+NC
		Relay output
N0n-flush	Detection distance			12mm	10mm	20mm	40mm
	DC 6~ 36 VDC	NPN	NO	LMF60-3020NAR	LMF14-3010NA	LM340-3020NA	LMF380-3040NA
			NC	LMF60-3020NBR	LMF14-3010NB	LM340-3020NB	LMF380-3040NB
			NO+NC	LMF60-3020NCR	LMF14-3010NC	LM340-3020NC	LMF380-3040NC
		PNP	NO	LMF60-3020PAR	LMF14-3010PA	LM340-3020PA	LMF380-3040PA
			NC	LMF60-3020PBR	LMF14-3010PB	LM340-3020PB	LMF380-3040PB
			NO+NC	LMF60-3020PCR	LMF14-3010PC	LM340-3020PC	LMF380-3040PC
		two wire system	NO	LMF60-3020LAR	LMF14-3010LA	LM340-3020LA	LMF380-3040LA
		two wire system	NC	LMF60-3020LBR	LMF14-3010LB	LM340-3020LB	LMF380-3040LB
	AC 90~ 250 VAC	Control- label silicon	NO	LMF60-2020AR	LMF14-2010A	LM340-2020A	LMF380-2040A
			NC	LMF60-2020BR	LMF14-2010B	LM340-2020B	LMF380-2040B
			NO+NC
		Relay output
Control output		DC		200mA	200mA	200mA	200mA
Control output		SCR Relay		300mA	300mA	300mA	500mA
Output voltage dropDC/AC				DC < 3V、AC < 10V
Consumption current				DC：<15mA AC：<10mA
Standard detected object				φ18(A3 iron)	30×30×1(A3 iron)	35×35×1(A3 iron)	50×50×1(A3 iron)
Repeated precision					0.05	0.05	0.05
DC/AC Response frequency				500Hz/25Hz	300Hz/10Hz	300Hz/10Hz	500Hz/10Hz
Working environment temperature				-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃
Insulation resistance				50MΩ	50MΩ	50MΩ	50MΩ
Shell material				Plastic
Protection grade				IP67	IP67	IP67	IP67
Alterative model at home and abroad							NJ40P-FP-A2-P1
