PROGRAMMABLE TIME SWITCH   PAGE1   PAGE2



Product code: DHC8A

TIME Range 1week Display LCD
Supply Voltage AC220V 50Hz 75%-110% Dimensions 50HX100WX66Dmm
Accuracy ¡Ü2s/Day (at 20¡æ) Memory Backup 15day
Programmable 8time/week or day ¡¡ ¡¡

Output control

1a: 25A AC250V(Resistive)

1c: 25A AC250V(Resistive)

2a: 25A AC250V(Resistive)

Detailed data: DHC8A

 Product code: DHC8A-2a

 TWIN  PROGRAMMABLE TIMER SWITCH

  •  DIN rail installation

  • Advanced pre-setting one week before.

  • Latest technology COMS quartz micro-controller

  • Digital electronics general purpose time switch with daily and weekly programs

  • Repeat programs with 4 ON/OFF settings of twin set

  • To-the-minute setting accuracy.

  • LCD displays real time to Hour/Minute/Second an ON/AUTO/OFF

Detailed data: DHC8A-2a



Product code: DHC15A

TYPE A

¡¡

TIME Range 1week Display LCD
Supply Voltage AC220V 50Hz 75%-110% Accuracy ¡Ü2s/Day (at 20¡æ)
Output control 16A AC250V(Resistive) Dimensions 36HX81WX66Dmm
Programmable 8time/week or day Memory Backup 15day

Detailed data: DHC15A

 NEW    PROGRAMMABLE LATITUDINAL TIMER

Product code: DHC15B

  • Automatically adjust the set time along with seasonal variation to control ON/OFF for lighting on purpose of realizing that light is turned on when sun sets & turned off when sun rises.

  • 6 sets of ON/OFF timing can be set. It can be also set to revise functions according to latitude variation.

  •  It is most suitable to be used for controls of advertisement lantern box, street lights etc.

  •  DIN standard dimension, guide rail assembly

Detailed data: DHC15B

¡¡

Product code: DHC15A

TYPE B

¡¡

TIME Range 1week Display LCD
Supply Voltage AC220V 50Hz 75%-110% Accuracy ¡Ü2s/Day (at 20¡æ)
Output control 16A AC250V(Resistive) Dimensions 36HX81WX66Dmm
Programmable 8time/week or day Memory Backup 15day

¡¡

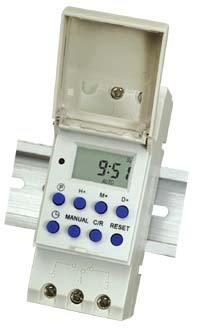

Product code: TP8B16/DHC15 with transparent cover

dimension: 36X86.5X65.5(mm)
switch rating: 16(10)A@250 V
Switching contacts: 1 changeover switch(SPDT)
battery backup(Li-HM): 15 days
Shortest switching time: 1 min
Program Date: 7 days,24 hours (15 kinds)
mode: 8 On/Off
¡¡ 24/12 Hours

Detailed data: DHC15
