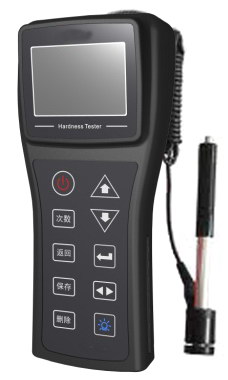

Hardness tester HL200
1 Overview
* Wide measuring range. Based on the principle of Leeb hardness testing
theory. It can measure the Leeb hardness of all metallic materials.
* Large screen(128¡Á64 dot matrix LCD), showing all functions and
parameters.
* Test at any angle, even upside down.
* With EL background light
* Direct display of hardness scales HRB, HRC, HV, HB, HS,
HL
* Seven impact devices are available for special application.
Automatically identify the type of impact devices.
*
Large capacity memory could store 500 groups (Relative to average
times32¡«1) information including single measured value,
mean value, testing date, impact direction, impact times, material and
hardness scale etc.
* Upper and lower limit can be preset.It will alarm automatically when
the result value exceeding the limit
* Battery information indicates the rest capacity of the battery.
* Software calibration function.
*
Software to connect with PC via USB port.
* Compact metal case, suitable for use under poor working conditions
* Continuous working period of no less than 50 hours with two alkaline
batteries(AA size)£»Auto power off to save energy.
* Outline dimensions: 132 X 76.2 mm
|
|
No. |
Item |
Quantity |
Remarks |
|
Standard
Configuration |
1 |
Main body |
1 |
|
|
2 |
D type impact device |
1 |
With cable |
|
3 |
Standard test block |
1 |
|
|
4 |
Cleaning brush (I) |
1 |
|
|
5 |
Small support ring |
1 |
|
|
6 |
Alkaline battery |
4 |
AA size |
|
7 |
Manual |
1 |
|
|
8 |
Instrument case |
1 |
|
|
9 |
DataPro software for HL200 |
1 |
|
|
10 |
Communication cable |
1 |
|
|
11 |
Tool for battery cover |
1 |
|
|
12 |
Belt |
1 |
|
|
Optional
Configuration |
11 |
Cleaning brush (II) |
1 |
For use with other type of impact device |
|
12 |
Other type of impact devices |
7 |
Refer to pictures blew |
|
13 |
Tool for impact ball |
1 |
|
|
14 |
Min-printer |
1 |
|
|
15 |
Other type of support rings |
1 |
Refer to pictures blew |
|
16 |
Other type of impact ball / body |
1 |
|
¡¡
¡¡
¡¡
* Bearings and other parts
* Failure analysis of pressure
vessel,
steam generator and other equipment
* The installed machinery and
permanently assembled parts.
* Testing surface of a small hollow
space
* Material identification in the
warehouse of metallic materials
* Rapid testing in large range and
multi-measuring areas for large-scale work piece
¡¡
4 Technical Specifications
Error and repeatability of displayed value
|
|
|
Hardness value of hardness block
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Measuring range: (170-960)HLD,
(17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS,
(59-85)HRA, (13-100)HRB
* Measuring direction: 360¡ã£¨¡ý¨I¨J¨K¨L¡ú¡û¡ü£©
* Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS
* Display: dot matrix LCD, 128¡Á64 dots
* Data memory: max. 500 groups£¨relative to impact times 32¡«1£©
* Working voltage: 3V£¨2 AA size alkaline battery£©
* Continuous working period: about 50 hours£¨With backlight off£©
* Communication interface: USB1.1 ¡¡
5 Testing range
Other type of
impact devices
|
Material |
Method |
Impact device |
|
D/DC |
D+15 |
C |
G |
E |
DL |
|
Steel and cast steel
|
HRC |
20¡«68.5 |
19.3¡«67.9 |
20.0¡«69.5 |
|
22.4¡«70.7 |
20.6¡«68.2 |
|
HRB |
38.4¡«99.6 |
|
|
47.7¡«99.9 |
|
37.0¡«99.9 |
|
HRA |
59.1¡«85.8 |
|
|
|
61.7¡«88.0 |
|
|
HB |
127¡«651 |
80¡«638 |
80¡«683 |
90¡«646 |
83¡«663 |
81¡«646 |
|
HV |
83¡«976 |
80¡«937 |
80¡«996 |
|
84¡«1042 |
80¡«950 |
|
HS |
32.2¡«99.5 |
33.3¡«99.3 |
31.8¡«102.1 |
|
35.8¡«102.6 |
30.6¡«96.8 |
|
Cold work
tool steel |
HRC |
20.4¡«67.1 |
19.8¡«68.2 |
20.7¡«68.2 |
|
22.6¡«70.2 |
|
|
HV |
80¡«898 |
80¡«935 |
100¡«941 |
|
82¡«1009 |
|
|
Stainless steel
|
HRB |
46.5¡«101.7 |
|
|
|
|
|
|
HB |
85¡«655 |
|
|
|
|
|
|
HV |
85¡«802 |
|
|
|
|
|
|
Grey cast iron
|
HRC |
|
|
|
|
|
|
|
HB |
93¡«334 |
|
|
92¡«326 |
|
|
|
HV |
|
|
|
|
|
|
|
Nodular cast iron |
HRC |
|
|
|
|
|
|
|
HB |
131¡«387 |
|
|
127¡«364 |
|
|
|
HV |
|
|
|
|
|
|
|
Cast aluminium alloys |
HB |
19¡«164 |
|
23¡«210 |
32¡«168 |
|
|
|
HRB |
23.8¡«84.6 |
|
22.7¡«85.0 |
23.8¡«85.5 |
|
|
|
BRASS(copper-zinc alloys)
|
HB |
40¡«173 |
|
|
|
|
|
|
HRB |
13.5¡«95.3 |
|
|
|
|
|
|
BRONZE(copper-aluminium/tin alloys) |
HB |
60¡«290 |
|
|
|
|
|
|
Wrought copper alloys |
HB |
45¡«315 |
|
|
|
|
|
|
Available type of impact device |
|
DC:
Test hole or hollow cylindrical
|
D+15:
Test groove or reentrant surface
|
C:Test
small, light, thin parts and surface of hardened
layer |
G:Test
large, thick, heavy and rough surface steel |
E:
Test super high hardness material |
DL:
Test slender narrow groove or hole |
¡¡
5 Testing
conditions:
|
Type of impact device |
DC(D)/DL |
D+15 |
C |
G |
E |
|
Impacting energy
Mass of impact body |
11mJ
5.5g/7.2g |
11mJ
7.8g |
2.7mJ
3.0g |
90mJ
20.0g |
11mJ
5.5g |
|
Test tip hardness:
Dia. Test tip:
Material of test tip: |
1600HV
3mm
Tungsten carbide |
1600HV
3mm
Tungsten carbide |
1600HV
3mm
Tungsten carbide |
1600HV
5mm
Tungsten carbide |
5000HV
3mm
synthetic diamond |
|
Impact device diameter:
Impact device length:
Impact device weight: |
20mm
86(147)/ 75mm 50g |
20mm
162mm
80g |
20mm
141mm
75g |
30mm
254mm
250g |
20mm
155mm
80g |
|
Max. hardness of sample |
940HV |
940HV |
1000HV |
650HB |
1200HV |
|
Mean roughness value of sample surface Ra: |
1.6¦Ìm |
1.6¦Ìm |
0.4¦Ìm |
6.3¦Ìm |
1.6¦Ìm |
|
Min. weight of sample:
Measure directly
Need support firmly
Need coupling tightly |
>5kg
2¡«5kg
0.05¡«2kg |
>5kg
2¡«5kg
0.05¡«2kg |
>1.5kg
0.5¡«1.5kg
0.02¡«0.5kg |
>15kg
5¡«15kg
0.5¡«5kg |
>5kg
2¡«5kg
0.05¡«2kg |
|
Min. thickness of sample Coupling tightly
Min. layer thickness for surface hardening |
5mm
¡Ý0.8mm |
5mm
¡Ý0.8mm |
1mm
¡Ý0.2mm |
10mm
¡Ý1.2mm |
5mm
¡Ý0.8mm |
¡¡
|
Size of tip indentation |
|
Hardness 300HV |
Indentation diameter
Depth of indentation |
0.54mm
24¦Ìm |
0.54mm
24¦Ìm |
0.38mm
12¦Ìm |
1.03mm
53¦Ìm |
0.54mm
24¦Ìm |
|
Hardness 600HV |
Indentation diameter
Depth of indentation |
0.54mm
17¦Ìm |
0.54mm
17¦Ìm |
0.32mm
8¦Ìm |
0.90mm
41¦Ìm |
0.54mm
17¦Ìm |
|
Hardness 800HV |
Indentation diameter
Depth of indentation |
0.35mm
10¦Ìm |
0.35mm
10¦Ìm |
0.35mm
7¦Ìm |
--
-- |
0.35mm
10¦Ìm |
¡¡
6 Data proceeding software:
Save: Save data from the tester
Out put: Out put the data from the tester
Print: Print the data out
Limit: Preset the limitation
Connect: Set connection to PC
Cut off: Cut off the tester with PC
Download: Large capacity of storage
|
