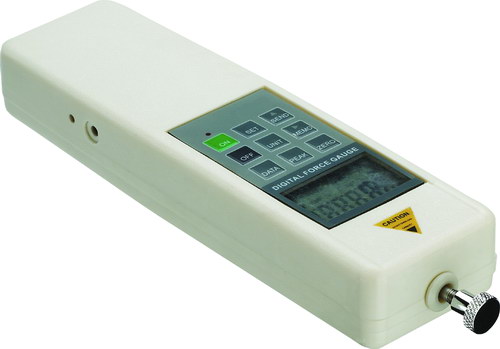

HP Digital Force Gauge

Function & Specification :
-High accuracy & high resolution;
-Having 5 kinds of test modes, 3 kinds of display usages for selection;
-Units : N, Kg and Ibf for your selection, which can make conversion each;
-Function of reset the acceleration of gravity;
-Peak hold function;
-Peak automatic clearance function;
-Set the tolerance limit (Max/Min);
-Super memory function - deposit 888 test values.
-Automatic power off function ;
-With 2 sets of different installation size;
-LCD screen turn direction function ;
-Inductive background light;
-RS-232 output;
a. match a free software for analysis ( without graph).

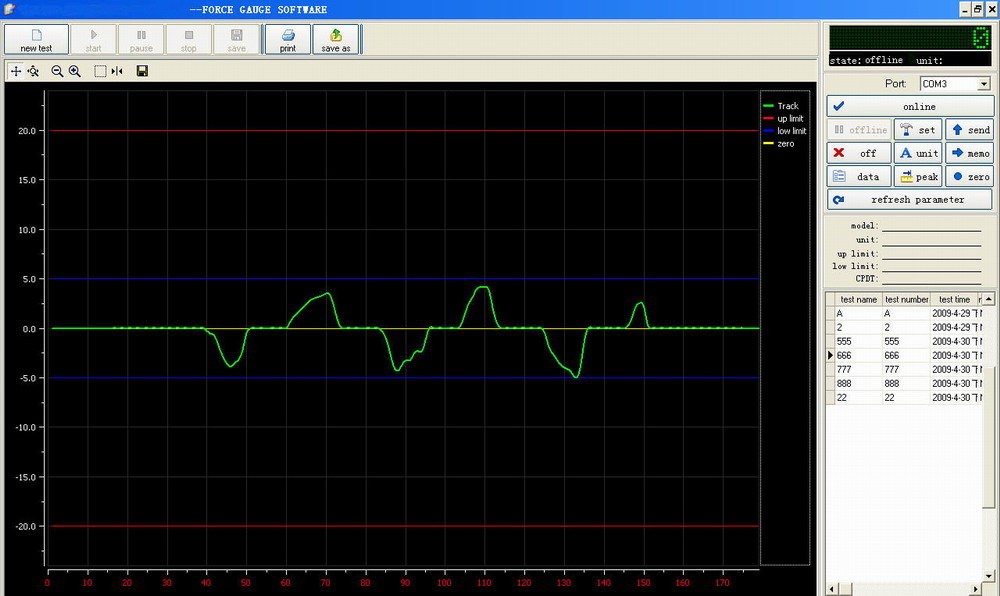

b. match a synchronous test software ( software is optional ), it can connect to PC to get synchronous graph, and also can reserve ,print,analysis, and so on.

Parameter:

 Model: HP-2 HP-3 HP-5 HP-10 HP-20 HP-30 HP-50 HP-100 HP-200 HP-300 HP-500 HP-1K
 Capacity: 2N 3N 5N 10N 20N 30N 50N 100N 200N 300N 500N 1000N
 Resolution: 0.001N 0.001N 0.001N 0.01N 0.01N 0.01N 0.01N 0.1N 0.1N 0.1N 0.1N 1N
 Sensor: Sensor Inside
 Accuracy: ¡À0.5%
 Dimension: 230x66x36mm

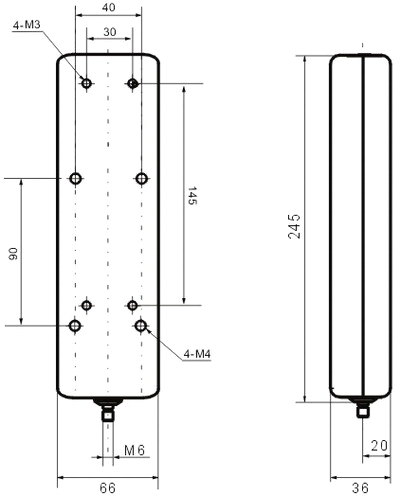

Dimension :

¡¡

¡¡

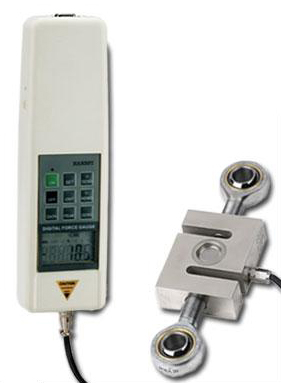

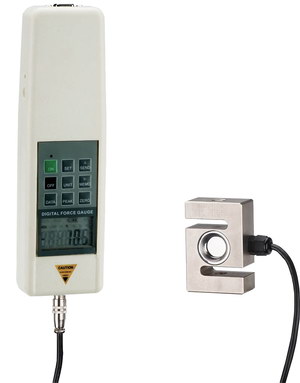

HP Digital Force Gauge
Function & Specification :
-High accuracy & high resolution;
-Having 5 kinds of test modes, 3 kinds of display usages for selection;
-Units : N, Kg and Ibf for your selection, which can make conversion each;
-Function of reset the acceleration of gravity;
-Peak hold function;
-Peak automatic clearance function;
-Set the tolerance limit (Max/Min);
-Super memory function - deposit 888 test values.
-Automatic power off function ;
-With 2 sets of different installation size;
-LCD screen turn direction function ;
-Inductive background light;
-RS-232 output;
a. match a free software for analysis ( without graph).
b. match a synchronous test software ( software is optional ), it can connect to PC to get synchronous graph, and also can reserve ,print, analysis, and so on.

Parameter:

Model: HP-2K HP-3K HP-5K HP-10K HP-20K HP-30K HP-50K HP-100K HP-200K HP-300K HP-500K HP-1000K
Capacity:  2K 3K 5K 10KN 20KN 30KN 50KN 100KN 200KN 300KN 500KN 1000KN
Resolution: 1N 1N 1N 0.01KN 0.01KN 0.0K1N 0.1KN 0.1KN 0.1KN 0.1N 0.1KN 1KN
Sensor: Sensor Outside(S beam) Sensor Outside(Spoke type)
Accuracy: ¡À0.5% ¡À1%
Dimension: 230x66x36mm

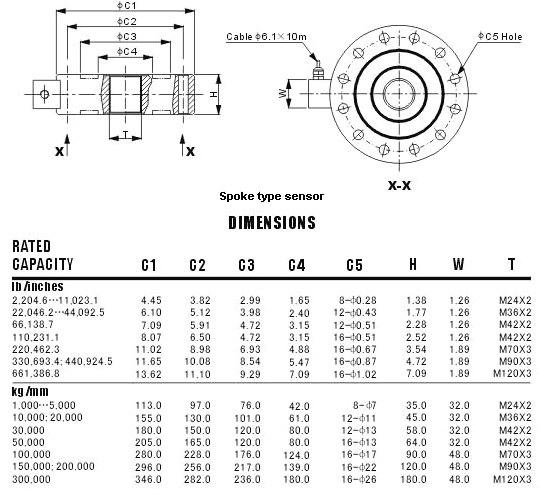

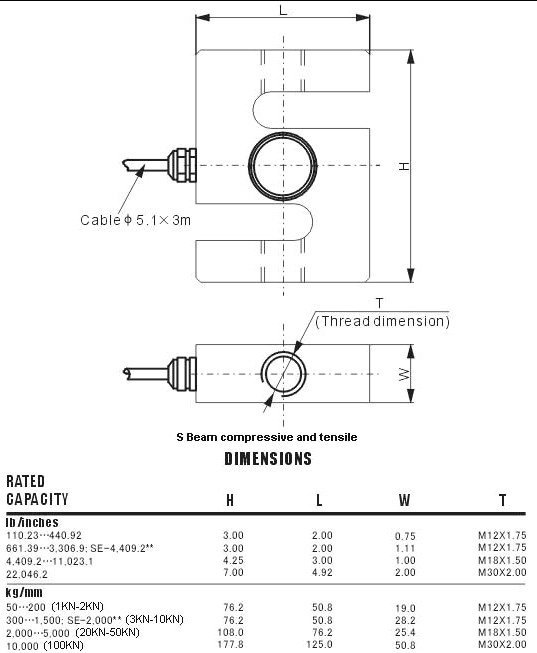

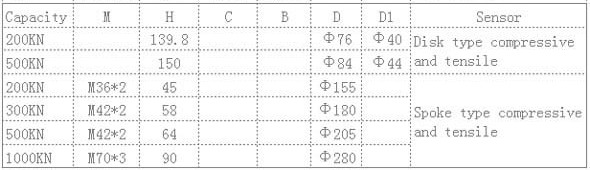

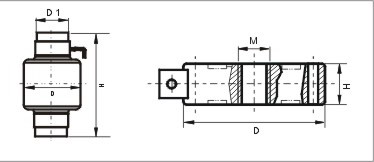

Sensor dimension:

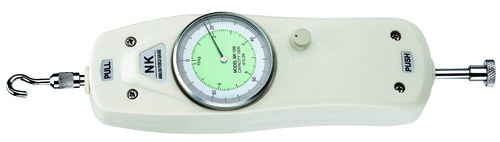

NK Analog Force Gauge
Function:
NK series are Analog Force Gauge with compact size and high accuracy. They are easy to operate and handy to carry out. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force)to the tracking indication(the needle moves in accordance with change of force).As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your meadsurement purpose.

Specification:
-High accuracy and high resolution;
-Compact size, easy to operate and handy to carry out;
-Peak hole and track mode;
-Two units: Newton and Kilogram;
-Match to all kinds of test stand and grips.

Parameter:

 Model: NK-10 NK-20 NK-30 NK-50 NK-100 NK-200 NK-300 NK-500
 Capacity: 10N 20N 30N 50N 100N 200N 300N 500N
 Resolution: 0.05N 0.1N 0.2N 0.2N 0.5N 1.0N 2.0N 2.0N
 Accuracy: ¡À1%

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
