Inclinometers

Digital Angle Meter Digital Protractor

(Digital Protractor, Inclinometer)

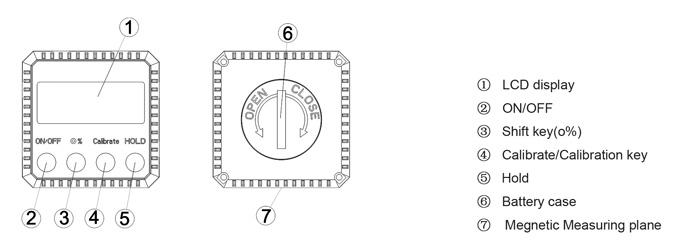

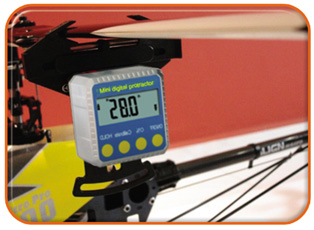

Mini Digital Protractor / Mini Digital Inclinometer Protractor Bevel Box

FEATURES
1. Magnetic base securely attaches gauge to any metal surface 2. Large LCD display reads upright at any angle.
3. Degree & slope conversion, 4. data hold. 5. Calibrate button 6. Runs on by 3 pcs CR2032 3V batteries

Order Code	Range	Resolution	Repeatability	Remarks
810-100	4*90°	0.1°	±0.1°

Working Temp.	Relative Humidity.
0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
392423cm	120pcs	15.6/16.5Kgs	30pcs

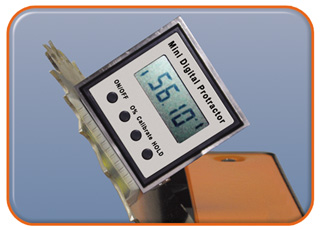

Mini Digital Protractor W/ Stainess Steel Basic

Easy set the angle of your jointer fences and bandsaw table

FEATURES

1) Magnetic base securely attaches gauge to any metal surface
2) Large LCD display reads upright at any angle
3) Degree & slope conversion,
4) Data hold.
5) Calibrate button
6) Runs on by 3 pcs CR2032 3V batteries

Order No.	Range	Resolution	Working Temp.	Remarks
810-111	4x90 °	0.05°/0.01%	0-40℃

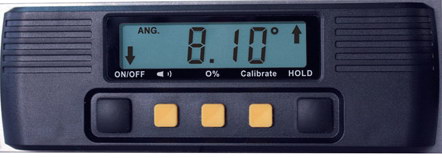

Digital Protractor

FEATURES
2. Large LCD display reads upright
at any angle.
3. With backlight and buzzer
4. Degree & slope conversion,
5. data hold.
6. Calibrate button
7. Runs on by 3 pcs CR2032 3V batteries

Order Code	Range	Resolution	Repeatability	Remarks
810-200	4*90°	0.1°	0.1°

Working Temp.	Relative Humidity.
0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
63823.5cm	50pcs	15.5/16.6Kgs	10pcs

Single Packing:Paper box

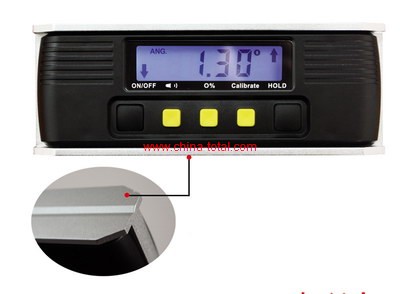

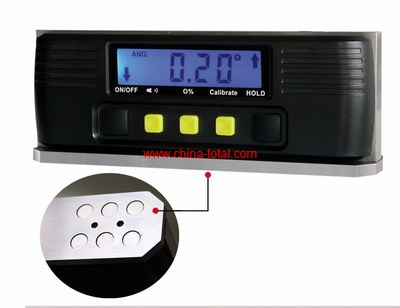

Digital Protractor

FEATURES
1. 810-200P and 810-200V have magnet in measuring faces which can be easy attracted to the object to be measured.
2. Large LCD display reads upright
at any angle.
3. With backlight and buzzer
4. Degree & slope conversion,
5. data hold.
6. Calibrate button
7. Runs on by 3 pcs CR2032 3V batteries

Order Code	Range	Resolution	Repeatability	Remarks
810-200P	4*90°	0.1°	0.1°

Working Temp.	Relative Humidity.
0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
63823.5cm	50pcs	15.5/16.6Kgs	10pcs

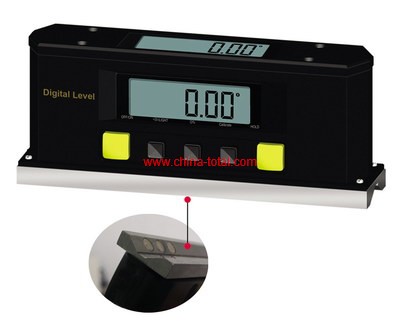

Digital Protractor

Order Code	Range	Resolution	Repeatability	Remarks
810-200V	4*90°	0.1°	±0.1°

Working Temp.	Relative Humidity.
0ºC-40ºC	40%-80%

FEATURES
1. Magnetic base securely attaches
gauge to any metal surface
2. Large LCD display reads upright
at any angle.
3. With backlight and buzzer
4. Degree,mm/m and slope conversion,
5. data hold.
6. Calibrate button
7. Auto power off
8. Runs on by 3 pcs CR2032 batteries

Order Code	Range	Resolution	Basic Length	Remarks
810-300	4*90°	0.05°/0.01%/mm/m	150mm

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
