Digital Angle Meter Digital Protractor

(angle meter, angle tester, digital angle level, digital laser levels, spirit laser level, digital angle finder, angle tools, angle laser digital level, measuring angle level)

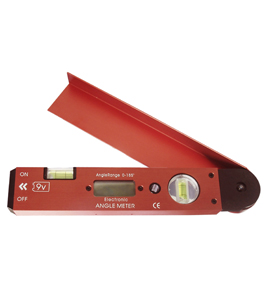

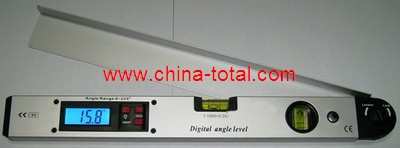

ST99G DIGITAL ANGLE LEVEL

TECHNICAL SPECIFICATION:

1. Length: 400mm or 450mm or 500mm (when you order, please indicate)

2. Measuring angle range: 00~225º.

3. Increase/decrease angle: 0.1º.

4. Automatically shut off after five minutes.

5. Measuring precision: ±0.5º

6. Working temperature: -10ºC~﹢50ºC

7. Battery: 9V6F22

packing: WHITE PAPER BOX

CTN SIZE: 45.5*40*65CM, 20PCS/CTN, G.W./N.W:11.5/10KGS

click it for big picture

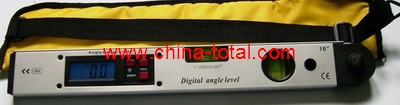

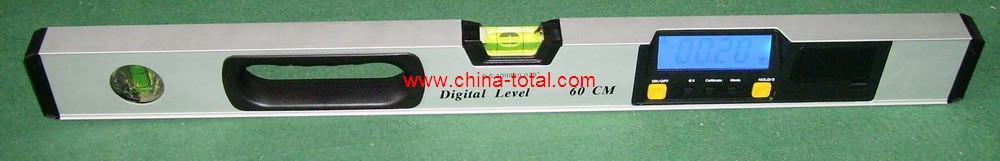

ST98D DIGITAL LEVEL

Technical Parameter:

1. Large LCD. Back light for easy reading in dark place.

2. Beeper will sound at 0. 45. 90º.

3. Display always reads upright, no matter which way the unit is turned.

4. Manual ON/OFF, auto power off.

5. Degree and slope conversion.

6. Absolute/ relative measurement conversion.

7. Measure data holding.

8. Low power warning

9. Battery type: one 9v battery (included)

10. packing: cloth bag

CTN SIZE: 64*37*16.5CM,20PCS/CTN,GW/NW: 12/10KGS

Range	Resolution	Accuracy
4* 90º	0.1º	0,90 +,-0.1 1—89 +,-0.2
Length of spirit level.	Working Temp.	Humidity
600mmm/24”	0ºC-40ºC	<80%

click it for big picture

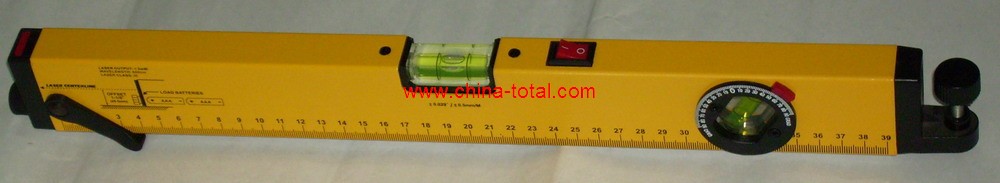

ST1B SPIRIT LASER LEVEL
* The length is 16"(40cm)
* Class II, less than 1mw/Class III A, less than 5mw
* Wave length: 650nm
* 2×1.5v AAA batteries.
* Working distance: 50m.
* Accuracy: 0.05˙

BLISTER PACKING.

CTN SIZE: 54*26*36CM, 20PCS/CTN, GW/NW:12/10KGS

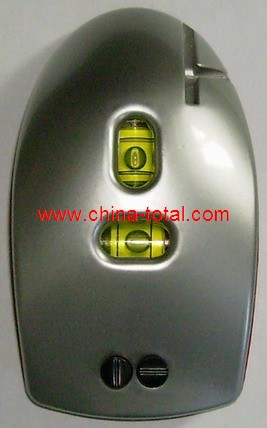

SL2B LASER LEVEL 2 LINE
* Laser wavelength: 625-670nm.
* Max power output 5mw.
* Accuracy: ± 0.55" @ 30 feet ( ±1.4mm/M).
* Accuracy: 90˙ ± 0.1˙.
* Power: 2×1.5v AAA batteries.
* Lawer class: US class IIIA, EU class IIIR.

BLISTER PACKING.

CTN SIZE: 46*38*28CM, 40PCS/CTN, GW/NW:7/5KGS

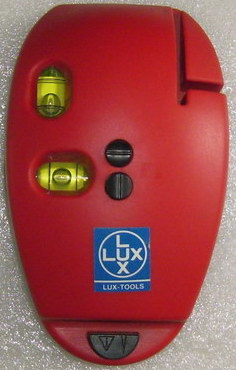

SL2 LASER LEVEL 2 LINE
* Laser wavelength: 625-670nm.
* Max power output 5mw.
* Accuracy: ± 0.55″ @ 30 feet ( ±1.4mm/M).
* Accuracy: 90° ±0.1° .
* Power: 2×1.5v AAA batteries.
* Lawer class: US class IIIA, EU class IIIR.

BLISTER PACKING.

CTN SIZE: 56*52*26CM,40PCS/CTN, GW/NW:10/7KGS

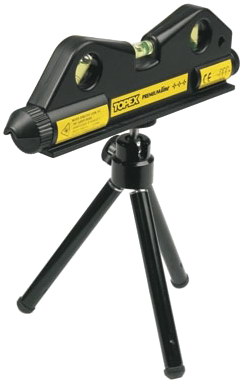

TD8 MINI LASER LEVEL
* The length is 7 inch
* Class II, less than 1 mw/class IIIA less than 5mw
* Wave length: 650nm
* 3×LR 44 batteries
* Working distance: 50m
* Accuracy: 0.05°

BILISTER PACKING

CTN SIZE: 51*30*30CM,40PCS/CTN, GW/NW:10/8KGS

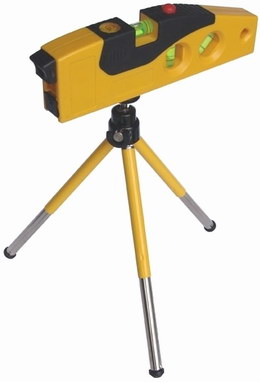

TD9B LASER LEVEL (LINE)
* Laser wavelength: 625-670nm
* Max power output 5mw.
* Accuracy: ±1mm/M 90° 　±0.05°
* Prower: 2×1.5v AAA batteries.
* The length is 7 inch
* Laser class: US class IIIA, EU class IIIR

WARNING
* Improper use of this product may result in hazardous exposure.
* Read all instructions carefully before using.
* Lasers are harmful to the eyes.
* Never look directly into the laser beam or its direct reflection.

BILISTER PACKING

CTN SIZE: 51*30*30CM,40PCS/CTN, GW/NW:11/8KGS

　

Electronic Spirit level

FEATURES
1. Large LCD; Backlight for easy reading in darkness place.
2. Beeper will sound at 0°, 10°, 20°, 30°, 40°, 50°, 60°, 70°, 80°, 90°
5. Display always reads upright,no matter which way the unit is turned.
7. Manual ON/OFF, auto power off.
8. Degree and slope conversion.
9. Absolute /relative measurement conversion.
10. Measure data holding
11. Low battery warning.
12. Battery Type: one 9V battery( included)

Order Code	Range	Resolution	Repeatability	Remarks

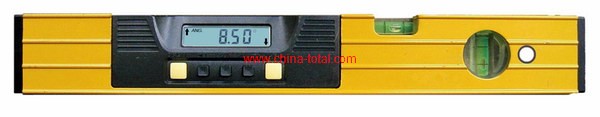

810-400	4*90°	0.1°	0.1°

length of Spirit Level.	Working Temp.	Relative Humidity.
400mm/16"	0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
443230cm	30pcs	18.5/19.5Kgs

Packing method:Paper Box

Order Code	Range	Resolution	Repeatability	Remarks
810-600	4*90°	0.1°	0.1°

length of Spirit Level.	Working Temp.	Relative Humidity.
600mm/24"	0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
662325cm	25pcs	20.5/21.5Kgs

Order Code	Range	Resolution	Repeatability	Remarks
810-800	4*90°	0.1°	0.1°

length of Spirit Level.	Working Temp.	Relative Humidity.
800mm/32"	0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
882320cm	20pcs	18.5/19.5Kgs

Order Code	Range	Resolution	Repeatability	Remarks
810-1000	4*90°	0.1°	0.1°

length of Spirit Level.	Working Temp.	Relative Humidity.
1000mm/40"	0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
1082315cm	15pcs	17/18Kgs

Order Code	Range	Resolution	Repeatability	Remarks
810-1200	4*90°	0.1°	0.1°

length of Spirit Level.	Working Temp.	Relative Humidity.
1200mm/48"	0ºC-40ºC	40%-80%

Packing list

MEAS.	QTY.	N.W./G.W.	QTY./Inner Box
1281315cm	15pcs	20/21Kgs

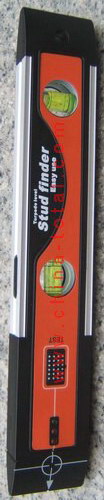

MODEL: SRSF9715 Electronic Stud Finder & 10'Torpedo Level (Economic)

Features:

- It is used to find the wood, metal studs and joists, AC live wires when you are doing the following jobs:
   a. Hang cabinets and shelves securely
   b. Hang pictures and mirrors
   c. Install ceiling fans and chandeliers
   d. Install drapery rods and closet organizers
   e. Install plant hangers, towel bars
   f. Anchor machinery or furniture to walls
   g. Find metal pipes behind tile and in concrete
   h. Locates standard household wiring
- Ergonomically designed hand-grips provide comfort for prolonged use.
- No guesswork, LED and audio signal indicate precisely when the edge of a stud has been found
- Automatic calibration
- Pencil line to easily mark location of stud edges
- Low battery indication

Specifications:

Detecting depth	19mm
Detecting accuracy	3mm
Safety approval	CE/EMC
Battery	1.5V*2
Operating temperature	0ºC~45ºC
Humidity	80%RH

Packing:

	No. of units	L (cm)	W (cm)	H (cm)	Gross Wgt kg
Inner Carton Dimentions	15	36.5	19	37
Outer Carton Dimentions	30	38	33.5	33	GW/NW7.6/6.3

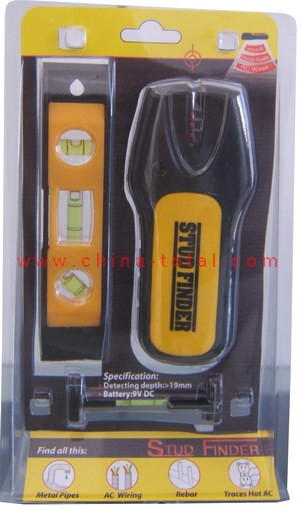

MODEL: SRSF9805B Electronic Stud Finder+Torpedo Level (Economic)

Features:

Specifications:

Detecting depth	19mm
Detecting accuracy	3mm
Safety approval	CE/EMC
Battery	9v/6f22
Operating temperature	0ºC~45ºC
Humidity	80%RH

Packing:

	No. of units	L (cm)	W (cm)	H (cm)	Gross Wgt kg
Inner Carton Dimentions	10	25	16.5	22	1.5kgs
Outer Carton Dimentions	40	41	25	33	GW/NW6.75/6kg

Kindly be noted, for SRSF series meters, our MOQ is 500pcs (for LCD display models) and 100pcs (for LED display models) at least for bulk order after you confirm the sample. We can supply samples qty 1-5pcs by charging, but we won't accept order between 5-500pcs (for LCD display models) and 5-100pcs (for LED display models).

If you confirm sample, but your future order is less than our MOQ askings, we can't supply you.

Please consider to deal these meters or not, based on our MOQ askings. We don't want to waste your value time and marketing investment.

We notice here in advance. Thank you for your kind understanding.

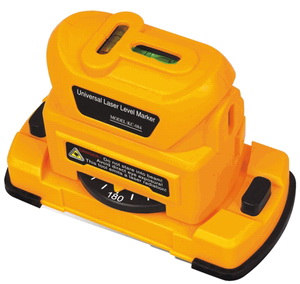

MODEL: SRC084 Universal Laser Level Marker

Product Description:
SRC084 Universal Laser Level Marker can generate a striking red laser line on the surface of objects. It is suitable for use in construction and indoor decoration, facture of doors and windows, machining on wood and stone materials, installation of pipelines and machinery to provide various basis and necessary detecting and lofting tools. It is convenient for taking, easy to operate and with rapid measurement. It is saving time, energy, of high efficiency and assures quality of construction.
Specifications:
CLASS 2 Laser Product;

Creating a red line on the surface; 360°turnable; Pins for fixation;

Laser length: 2m;

Precision:±1mm/m;

Packing:
Blister package;
Standard Quantity Per Carton: 20PCS;
Standard Carton Size: 50*46*20 CM

Угломеры являются приборами, предназначенными для проведения измерений углов – наружных и внутренних – разного рода изделий. Прибор дает возможность выполнять точную разметку рабочей поверхности изделия. Посредством применения электронного угломера была значительно упрощена процедура монтирования трудных элементов конструкций: каркасов, стропил, перил и других объектов, требующих при устройстве точно выдержанного угла. Универсальный уровень SRC084, оснащенный лазером, устанавливается вручную с применением двух пузырьковых уровней, вмонтированных в корпус. Корпус оснащен специализированными крепежными элементами, позволяющими закреплять лазерный уровень практически на любой поверхности. Применение радиальной шкалы, расположенной на одном из элементов прибора, позволяет нацеливать лазерный уровень на определенный угол. Лазерный луч способен указать не только горизонталь/вертикаль, но и отмерить произвольный угол. Уровень SRC084 является универсальным лазерным построителем углов.

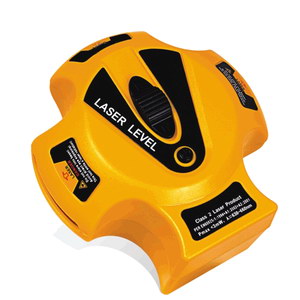

MODEL: SRC084Z Automatically Level LaserMarker

Product Description:
SRC084Z Automatically Level Laser Marker can emit two red laser beams in horizontal and vertical, which when used indoors. It is suitable for use in construction and indoor decoration, facture of doors and windows, machining on wood and stone materials, installation of pipelines and machinery to provide various basis and necessary detecting and lofting tools.
Specifications:

CLASS 2 Laser Product;

Self-leveling;

Creating level and plumb red line on the surface at the same time;

Pins or Sticker for fixation;

Packing:
Blister package;
Standard Quantity Per Carton: 20PCS;
Standard Carton Size: 68.5*55*21.5 CM

Уровень SRC084Z является автоматическим лазерным угломером, оснащенным встроенным модулем автоматического позиционирования. По способу функционирования, различают угломеры механического и электронного типа. Электронными угломерами являются устройства, посредством которых измерение углов можно полностью или частично автоматизировать. Электронные уровни применяются при проведении столярных и плотницких работ. Цифровые угломеры с успехом применяют при осуществлении контроля и приемки смонтированных элементов мебели и оборудования. Также прибор используется при переносе углов, при устройстве проемов, облицовке зданий. Угломер значительно упрощает процедуру проведения разметки и измерений углов. Прибор SRC084Z позволяет проводить построение двух горизонтальных и одного вертикального лазерного луча. Такой лазерный уровень можно применять как в помещении, так и на открытых пространствах. Питание прибора SRC084Z осуществляется батарей 9В.

Kindly be noted, for SRC series meters (only SRC series), our MOQ is 500pcs at least for bulk order after you confirm the sample. We can supply samples qty 1-5pcs by charging, but we won't accept order between 5-500pcs.

If you confirm sample, but your future order is less than 500pcs, we can't supply you.

Please consider to deal these meters or not, based on our MOQ askings. We don't want to waste your value time and marketing.

We notice here in advance. Thank you for your kind understanding.

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
