Laser range finder SR40D
|
Specifications & Functions |
|
Measurement Range |
0.1m~40m (4 in ~131
ft) |
|
Accuracy |
¡À1.5mm (¡À0.06inch£© |
|
Measuring units |
m, in, ft, m², ft²,
m³, ft³ |
|
Work principal |
Photoelectric (not
shake while measuring) |
|
Measurement Speed |
3time/s |
|
Waterproof & Dustproof |
IP54 |
|
History measurement
record |
20 records |
|
Laser type |
635nm, <1mW, ClassII |
|
Battery Life |
>5000 times |
|
Key Life |
>1 million times |
|
Area, Volume
Calculations |
Yes. |
|
Indirect measurement
using Pythagoras |
Yes. Support 2, 3
indirect measurements |
|
Addition/Subtraction |
Yes |
|
Continuous Measurement |
Yes |
|
Min/Max Distance
Tracking |
Yes |
|
Display illumination
and multi-line display. |
Yes. Max 4 displays |
|
Datum Option |
Yes. Can choose Front
edge or end piece edge as datum |
|
Buzzer indication |
Yes |
|
Backlight Display |
Yes. White, can auto
switch off |
|
Auto Bias Technology |
Yes. Support for
external calibration |
|
Error indicaton |
Yes. Display error
code |
|
Data Hold |
Yes. Automatic |
|
Data Clear |
Yes |
|
Battery indicaton |
Yes. High, mid, low |
|
laser Auto. switch-off |
Yes. 30s without any
operation |
|
Auto instrument
switch-off |
Yes. 3minutes without
any operation |
|
CERTIFICATE |
CE, ROHS, FCC, LVD for
Laser (60825-1-2007), LVD (EN 61010-1-2001) |
|
Warranty |
12months |
|
GENERAL CHARACTERISTICS |
|
Battery Supply |
2pcs 1.5V AAA battery |
|
Product Color |
Yellow+Black |
|
Product Weight |
131.2g (Including
battery) |
|
Dimension |
128*50*28 mm |
|
Standard Accessories |
Pouch bag, batteries,
screwdriver |
|
Packing Method |
Gift box packing |
|
Standard Packing |
Gift box, Manual,
Warranty card |
|
Standard quantity per
Outer Carton |
40 |
|
Dimension for Standard
Outer Carton |
67.5*29.4*36cm |
|
Weight for Stander
Outer Carton |
8.7kg |
¡¡ |
|
¡¡ |
¡¡ |
|
 |

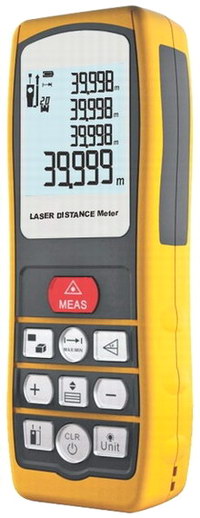

Laser range finder SR60D
|
Specifications &
Functions |
|
Measurement Range |
0.1m~60m (4 in ~197 ft) |
|
Accuracy |
¡À1.5mm (¡À0.06inch£© |
|
Measuring units |
m, in, ft, m², ft², m³,
ft³ |
|
Work principal |
Photoelectric |
|
Measurement Speed |
3time/s |
|
Waterproof & Dustproof |
IP54 |
|
History measurement
record |
20 records |
|
Laser type |
635nm, <1mW, ClassII |
|
Battery Life |
>5000 times |
|
Key Life |
>1 million times |
|
Area, Volume
Calculations |
Yes. |
|
Indirect measurement
using Pythagoras |
Yes. Support 2, 3
indirect measurements |
|
Addition/Subtraction |
Yes |
|
Continuous Measurement |
Yes |
|
Min/Max Distance
Tracking |
Yes |
|
Display illumination and
multi-line display. |
Yes. Max 4 displays |
|
Datum Option |
Yes. Can choose Front
edge or end piece edge as datum |
|
Buzzer indication |
Yes |
|
Backlight Display |
Yes. White, can auto
switch off |
|
Auto Bias Technology |
Yes. Support for
external calibration |
|
Error indicaton |
Yes. Display error code |
|
Data Hold |
Yes. Automatic |
|
Data Clear |
Yes |
|
Battery indicaton |
Yes. High, mid, low |
|
laser Auto. switch-off |
Yes. 30s without any
operation |
|
Auto instrument
switch-off |
Yes. 3minutes without
any operation |
|
GENERAL CHARACTERISTICS |
|
Battery Supply |
2pcs 1.5V AAA battery |
|
Product Color |
Yellow+Black |
|
Product Weight |
100g (Including battery) |
|
Dimension |
109X49X28 mm |
|
Standard Accessories |
Bag, batteries,
screwdriver |
|
Standard Packing |
Gift box, Manual,
Warranty card |
|
Standard quantity per
Outer Carton |
40 |
¡¡ |
|
¡¡ |
¡¡ |
|
 |

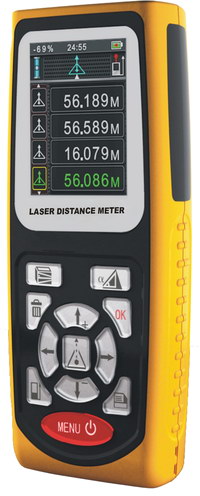

Laser range finder SR100D
|
Specifications &
Functions |
|
Distance Range |
0.1m~100m (4 in ~328
ft) |
|
Tilt measurement |
Yes (¡À0.3º) |
|
Temperature
measurement |
Yes |
|
Accuracy of distance |
¡À1.5mm (¡À0.06inch£© |
|
Measuring units |
m, in, ft, m², ft²,
m³, ft³ |
|
LCD display |
2 inch large color
screen |
|
Software |
mOS Visible software |
|
Work principal |
Photoelectric (not
shake while measuring) |
|
Measurement Speed |
3time/s |
|
Waterproof & Dustproof |
IP54 |
|
History measurement
record |
30 records |
|
Laser type |
635nm, <1mW, Class II |
|
Battery Life |
>15000 times |
|
Key Life |
>1 million times |
|
Area, Volume
Calculations |
Yes. |
|
Indirect measurement
using Pythagoras |
Yes. Support 2, 3
indirect measurements |
|
Addition/Subtraction |
Yes |
|
Continuous Measurement |
Yes |
|
Triangle measurement |
Yes |
|
Auto horizontal
measurement |
Yes |
|
Auto height
measurement |
Yes |
|
Edit Measuring data
Function |
Yes |
|
Min/Max Distance
Tracking |
Yes |
|
Record lock/ Unlock/ |
Yes |
|
Display illumination
and multi-line display. |
Yes. Max 4 displays |
|
Datum Option |
Yes. Can choose Front
edge or end piece edge as datum |
|
Buzzer indication |
Yes |
|
Backlight display |
Yes. |
|
Auto Bias Technology |
Yes. Support for
external calibration |
|
Error indication |
Yes. Display error
code |
|
Personal setup |
Level, Timer, Stacking
out, Bubble, Beep, Measure unit, Time, Brightness of backlight,
Off-set, Time format, Factory reset, Angle unit |
|
Data Hold |
Yes. Automatic |
|
Data Clear |
Yes |
|
Battery indication |
Yes. High, mid, low |
|
laser Auto. switch-off |
Yes. 30s without any
operation |
|
Auto instrument
switch-off |
Yes. 3minutes without
any operation |
|
Operating Temperature |
0¡ãC to 40¡ãC |
|
Storage Temperature |
-10¡ãC to 60¡ãC |
|
CERTIFICATE |
CE, ROHS, FCC, LVD for
Laser (60825-1-2007), LVD (EN 61010-1-2001) |
|
Warranty |
12months |
|
GENERAL CHARACTERISTICS |
|
Battery Supply |
Li-ion
battery/1200mAh (Rechargable) |
|
Product Color |
Yellow + Black |
|
Product Weight |
137g (Including
battery) |
|
Dimension |
125*55*29 mm |
|
Standard Accessories |
Pouch bag, Li-ion
battery, Battery charger , screwdriver |
|
Standard Packing
Method |
Gift box |
|
Standard quantity per
Outer Carton |
40 |
|
Dimension for Standard
Outer Carton |
67.5*29.4*36cm |
|
Weight for Stander
Outer Carton |
8.9kg |
|
|
¡¡ |
¡¡ |
|
 |
Laser range finder SR100DU
|
Specifications &
Functions |
|
Distance Range |
0.1m~100m (4 in ~328
ft) |
|
Tilt measurement |
Yes (¡À0.3º) |
|
Temperature
measurement |
Yes |
|
Accuracy of distance |
¡À1.5mm (¡À0.06inch£© |
|
Measuring units |
m, in, ft, m², ft²,
m³, ft³ |
|
LCD display |
2 inch large color
screen |
|
Software |
mOS Visible software |
|
Work principal |
Photoelectric (not
shake while measuring) |
|
Measurement Speed |
3time/s |
|
Waterproof & Dustproof |
IP54 |
|
History measurement
record |
1000 records |
|
Laser type |
635nm, <1mW, ClassII |
|
Battery Life |
>15000 times |
|
Key Life |
>1 million times |
|
Area, Volume
Calculations |
Yes. |
|
Indirect measurement
using Pythagoras |
Yes. Support 2, 3
indirect measurements |
|
Addition/Subtraction |
Yes |
|
Continuous Measurement |
Yes |
|
Triangle measurement |
Yes |
|
Auto horizontal
measurement |
Yes |
|
Auto height
measurement |
Yes |
|
Edit Measuring data
Function |
Yes |
|
Min/Max Distance
Tracking |
Yes |
|
Record lock/ Unlock/ |
Yes |
|
Display illumination
and multi-line display. |
Yes. Max 4 displays |
|
Datum Option |
Yes. Can choose Front
edge or end piece edge as datum |
|
Buzzer indication |
Yes |
|
Backlight display |
Yes. |
|
Auto Bias Technology |
Yes. Support for
external calibration |
|
Error indicaton |
Yes. Display error
code |
|
Personal setup |
Level, Timer, Stacking
out, Bubble, Beep, Measure unit, Time, Brightness of backlight,
Off-set, Time format, Factory reset, Angle unit |
|
Data Hold |
Yes. Automatic |
|
Data Clear |
Yes |
|
Battery indicaton |
Yes. High, mid, low |
|
laser Auto. switch-off |
Yes. 30s without any
operation |
|
Auto instrument
switch-off |
Yes. 3minutes without
any operation |
|
Operating Temperature |
0¡ãC to 40¡ãC |
|
Storage Temperature |
-10¡ãC to 60¡ãC |
|
USB interface
(Connected to Computer) |
The history record can
be export to EXCEL FILE, Real-time data export. |
|
CERTIFICATE |
CE, ROHS, FCC, LVD for
Laser (60825-1-2007), LVD (EN 61010-1-2001) |
|
Warranty |
12months |
|
GENERAL CHARACTERISTICS |
|
Battery Supply |
Li-ion
battery/1200mAh (Rechargable) |
|
Product Color |
Yellow+Black |
|
Product Weight |
137g (Including
battery) |
|
Dimension |
125*55*29 mm |
|
Standard Accessories |
Pouch bag, Li-ion
battery, Battery charger , screwdriver |
|
Standard Packing
Method |
Gift box |
|
Standard quantity per
Outer Carton |
40 |
|
Dimension for Standard
Outer Carton |
67.5*29.4*36cm |
|
Weight for Stander
Outer Carton |
8.9kg |
|
|
¡¡ |
¡¡ |
|
 |

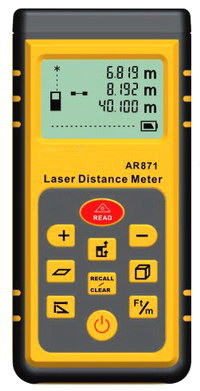

Laser Distance Meter AR871
Feature
Laser Range Finder Laser range finder is a instrument to measure the
accurate distance to the goal by utilizing laser. While working, laser
range finder projects bunch of very thin lasers to the goal, the
photoelectric element receive goal reflection's laser beam, the timer
determination laser beam receive time from the launch, calculates the
distance from the observer to the goal. Laser finder weight is light,
the volume is small, simply operation, quickly and accurate, its error
is only other range finder¡¯s 1/5 to1%. Thus it is widely used in the
topographic measure, battlefield measure, tank, airplane, naval vessel
and artillery to goal range, and measure the height of cloud layer,
airplane, missile as well as satellite and so on. It is important
technical equip to enhance the tank, the airplane, the naval vessel and
the artillery precision.
Measuring range: 0.3to 40m
Accuracy: ¡À2mm
Measure in Imperial/ Metric
30 data store/recall function
Measurement function Length/Area/Volume measurement
Triangulation measurment
Laser guided system
Laser class 2
Data Store/Recall function
Key sound Beeps for wrong Reading and Reading Confirmation |
|
¡¡ |
¡¡ |
|
 |

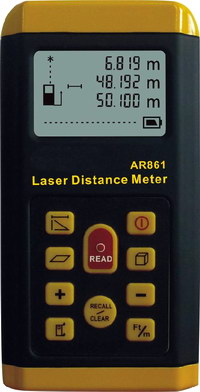

Laser Distance Meter AR861
Feature
Laser Range
Finder Laser range finder is a instrument to
measure the accurate distance to the goal by
utilizing laser. While working, laser range
finder projects bunch of very thin lasers to
the goal, the photoelectric element receive
goal reflection's laser beam, the timer
determination laser beam receive time from
the launch, calculates the distance from the
observer to the goal. Laser finder weight is
light, the volume is small, simply
operation, quickly and accurate, its error
is only other range finder¡¯s 1/5 to1%. Thus
it is widely used in the topographic
measure, battlefield measure, tank,
airplane, naval vessel and artillery to goal
range, and measure the height of cloud
layer, airplane, missile as well as
satellite and so on. It is important
technical equip to enhance the tank, the
airplane, the naval vessel and the artillery
precision.
|
Specification |
|
|
Measuring Range |
0.3~60m |
|
Accuracy |
¡À2mm |
|
Imperial/Metric Selection |
¡Ì |
|
Resolution |
1mm |
|
Laser Class |
2 class |
|
Laser Power
and Wavelength |
P¡Ü1mW
¦Ë=635nm |
|
Triangulation Measurement |
¡Ì |
|
Low Power
Indicatioon |
¡Ì |
|
Backlight |
¡Ì |
|
Continueing
Measurement |
¡Ì |
|
Measuring
Benchmark Setup |
¡Ì |
|
Length
Summation |
¡Ì |
|
Area/ Volume
Measurement Function |
¡Ì |
|
Data Store |
30groups |
|
Packing
Information |
|
|
Power |
AA*2 battery |
|
Product Net
Weight |
217g |
|
Product Size |
129*69*40mm |
|
Packing |
Gift box |
|
Standard
Quantity Per Carton |
20pcs |
|
Standard
Carton Size |
62.5*45*28.5cm |
|
Standard
Carton Gross Weight |
17kg |
|
|
¡¡ |
¡¡ |
|
 |

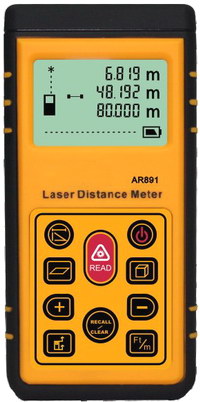

Laser Distance Meter AR891
Feature
Laser Range Finder Laser range finder is a instrument to measure the
accurate distance to the goal by utilizing laser. While working, laser
range finder projects bunch of very thin lasers to the goal, the
photoelectric element receive goal reflection's laser beam, the timer
determination laser beam receive time from the launch, calculates the
distance from the observer to the goal. Laser finder weight is light,
the volume is small, simply operation, quickly and accurate, its error
is only other range finder¡¯s 1/5 to1%. Thus it is widely used in the
topographic measure, battlefield measure, tank, airplane, naval vessel
and artillery to goal range, and measure the height of cloud layer,
airplane, missile as well as satellite and so on. It is important
technical equip to enhance the tank, the airplane, the naval vessel and
the artillery precision.
¡¡
Measuring range: 0.3to 80m
Accuracy: ¡À2mm
Measure in Imperial/ Metric
30 data store/recall function
Measurement function Length/Area/Volume measurement
Triangulation measurment;
Laser guided system
Laser class 2
Data Store/Recall function
Key sound Beeps for wrong Reading and Reading Confirmation
¡¡ |
|
¡¡ |
¡¡ |
|
 |

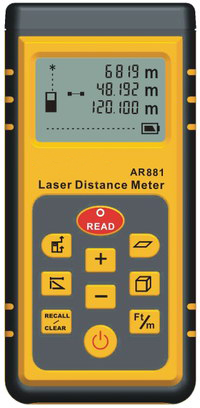

Laser Distance Meter AR881
SPECIFICATIONS:
|
Measuring Range |
0.3~100m |
|
Accuracy |
¡À2mm |
|
Imperial/Metric
Selection |
¡Ì |
|
Resolution |
1mm |
|
Laser Class |
2 class |
|
Laser Power and
Wavelength |
P¡Ü1mW ¦Ë=635nm |
|
Triangulation
Measurement |
¡Ì |
|
Low Power
Indicatioon |
¡Ì |
|
Backlight |
¡Ì |
|
Continueing
Measurement |
¡Ì |
|
Measuring
Benchmark Setup |
¡Ì |
|
Length Summation |
¡Ì |
|
Area/ Volume
Measurement Function |
¡Ì |
|
Data Store |
30groups |
|
PACKING
INFORMATION |
|
|
Power |
AA*2 battery |
|
Product Net
Weight |
230g |
|
Product Size |
132*63*34.5mm |
|
Packing |
Gift box |
|
Standard
Quantity Per Carton |
20pcs |
|
Standard Carton
Size |
62.5*45*28.5cm |
|
Standard Carton
Gross Weight |
8kg |
|
|
¡¡ |
¡¡ |
|
 |

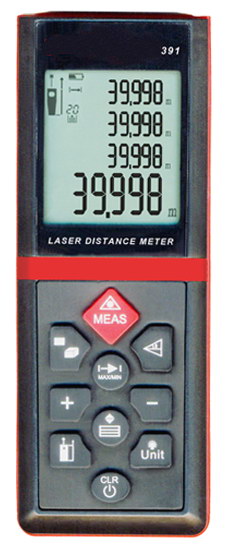

Laser range finder SRU391
Standard: EN61326-1; EN60825-1
Dimension is 109x49x28 mm
32PCS/CTN, CTN SIZE: 53*33*38.5CM, G.W: 8.6KGS;
volume weight: 13.5kgs
|
Basic Function |
Range |
Accuracy |
|
Measurement Distance |
0.1m~60m |
¡À 1.5 mm |
|
4 in ~197 ft |
¡À 0.06 in |
|
Measuring units |
m,in,ft. 4 types units displays |
|
Special Function |
|
Area, Volume Calculations |
Has m2/ft2/m3/ft3 units |
|
Indirect measurement using Pythagoras |
Support 2, 3 indirect measurements |
|
Addition/Subtraction |
Yes |
|
Continuous Measurement |
Yes |
|
Min/Max Distance Tracking |
Yes |
|
Display illumination and multi-line
display. |
Max 4 displays |
|
Datum Option |
Can choose Front edge or end piece edge
as datum |
|
Buzzer indication |
Yes |
|
Backlight Display |
White, can auto switch off |
|
Auto Bias Technology™ |
Support for external calibration |
|
Error indicator |
Display error code |
|
Data Hold |
Auto |
|
History measurement records |
20 |
|
Data Clear |
Yes |
|
Battery indicator |
High, mid, low |
|
laser Auto. switch-off |
after 0.5 min |
|
Auto instrument switch-off |
after 3 min |
|
Waterproof |
IP54 |
|
Laser type |
635nm, <1mW, ClassII |
|
Battery Life |
>5000 times |
|
Key Life |
>1 million times |
|
Packing |
32PCS/CTN, CTN SIZE: 53*33*38.5CM, G.W:
8.6KGS,VOLUME WEIGHT: 14KGS |
|
|
¡¡ |
¡¡ |
|
 |

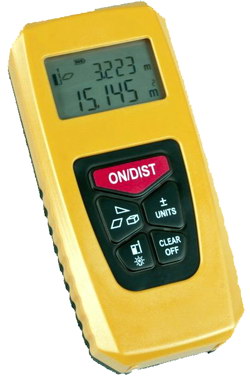

Laser range finder AR23|
Product Model |
AR23 | |
Measuring Range |
40m | |
Accuracy |
±3mm | |
Least show units |
1mm | |
Laser level Class |
2 | |
Laser style |
635nm | |
Laser power |
<1 mw | |
Measuring functions |
Continuous, Pythagorean
Surface area, volume measurement
Built-in level vial | |
Waterproof & Dustproof |
IP54 | |
Packing |
10PCS/CTN, CTN SIZE: 40*28*20CM, N.W/G.W:
3.5/5KGS |
¡¡ |
|
¡¡ |
¡¡ |
|
 |

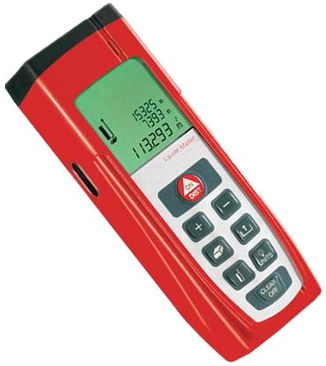

Laser range finder AR851A
|
Range (use target plate
for longer distances) |
0. 05m to 80m |
|
0.02 ft to 263 ft |
|
Measuring accuracy up to
30m(in the room) |
Typ.: ¡À2mm* |
|
Smallest unit displayed |
1mm |
|
Laser class |
II |
|
Laser type |
635nm, <1mW |
|
¦µlaser spot (at
distance) |
6/30/60mm |
|
(10/15/100m) |
|
Automatic switch off |
After 180s |
|
Illumination of display |
Yes |
|
Minimum, Maximum,
Continuous Measuring |
Yes |
|
Addition/Subtraction |
Yes |
|
Historical storage |
Yes(20) |
|
Battery life, Type AAA,
2*1.5V |
up to 10000 measurements |
|
IP rating |
IP 54 Splash proof, dust
proof |
|
Dimension and weight |
137*45*31mm, 150g |
|
Storage Temperature range |
-25ºC
to +70ºC |
|
(-13ºF to +158ºF) |
|
Operating Temperature
range |
-10ºC
to +50ºC |
|
(-14ºF to +122ºF) |
*maximum deviation
occurs under unfavourable conditions such as bright sunlight or
when measuring to poorly reflecting or very rough surfaces. For
distances over 30m ¨C without using a target plate ¨C the maximum
deviation may increase to a maximum of ¡À10mm
Packing: 10PCS/CTN, CTN SIZE:
35.5*32.5*23CM, N.W/G.W: 4/5.3KGS |
|
¡¡ |
¡¡ |
