TEMPERATURE METER AND THERMOMETER

K Thermocouple type Thermometer/Temperature meter	Food Thermometer, Pocket (Pen type) Thermometer

Digital thermometer, thermo-hygrometer, weather station	Aquarium Thermometer

Solar Cell Digital Thermometer

For thermocouples, click here: thermocouple

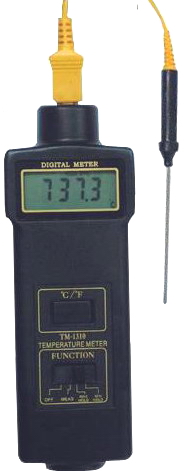

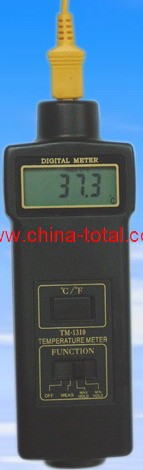

Model: TM1310

1 inputs

Measuring range: -50-1300℃ -58-2372℉

Data hold: max/min/value

Resolution: 0.1/1

Accuracy: ±0.3%n+1℃

Display: LCD

Power supply: 4x1.5V AA (UM-3) battery

Battery indicator: low battery indicator

Dimensions: 220x77x43mm

Weight (not including probe): 174g

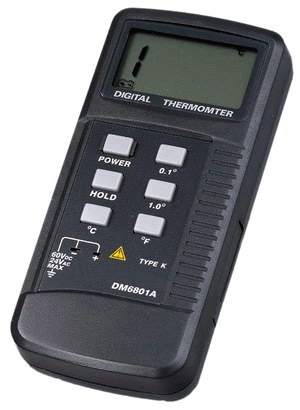

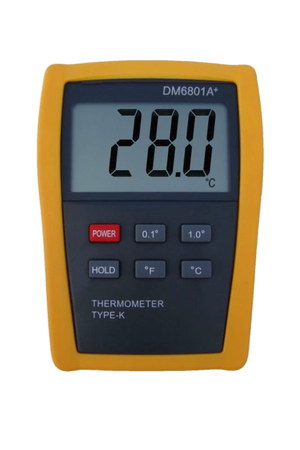

DM6801A Digital thermometer
Features:
1.Large LCD display, make reading clearly.
2.With antimagnetic and anti-interferential function.
3.High resolution, 0.1℃/℉.
4.High steady ,high accuracy.
5.Data hold.

Size: 149 x 71 x 41mm
Weight: approx. 200g (including battery)

|Technical data|

Basic function	Range	Accuracy
Celsius	-50℃～199℃	±(0.2%+1)
Celsius	200℃～1300℃	±(0.3%+2)
Fahrenheit	-50℉～199℉	±(0.2%+1)
Fahrenheit	200℉～1800℉	±(0.3%+2)

Special function	DM6801A
Low battery display	Lower 7.5V
Data hold	√
Unit,symbol display	√
Function protection	√
Input impedance	10MΩ
Sampling rate	3times/s
Operation way	Manual range
Max.display	1999(3 1/2)
LCD size	56x33mm
battery	9V (6F22)
Power supply	Static current approx.3.5mA

General characteristic (PACKING FOR DMxx SERIES)

Color	Dark grey
Weight	210g（including battery）
Size	135mm×72mm×31mm
Standard accessory	Battery, manual, TP01　K type temperature probe
Packing	Gift box
Standard packing per carton	50pcs
Carton size
Standard G.W per carton	17.5kg

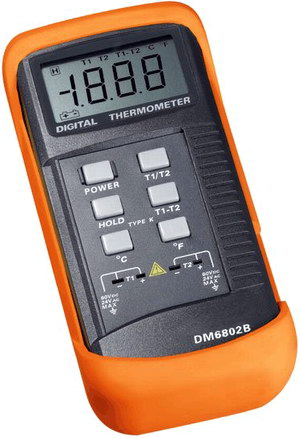

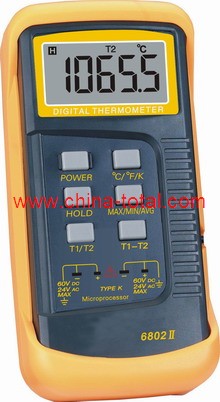

DM6802B Digital thermometer

Features:
1.Large LCD makes the reading clearly;
2.Strong antimagnetic and anti-jamming performance;
3.Data hold,
4.Dual input,
5.High stability, high accuracy: 0.5%.
Technical data:
Display: 3 1/2 digit 15mm LCD
Range: -50℃~1300℃
　　　 -58℉~1999℉
HOLD,℉/℃
Measurement is selected by pressing the T1-T2 key.

Resolution	Range	Accuracy
1℃	-50℃~1200℃ 1200℃~1300℃	±(0.3%+2℃) ±(0.6%+2℃)
1℉	-58℉~1200℉ 1200℉~1999℉	±(0.3%+2℉) ±(0.6%+2℉)

Special function	DM6802B
Low battery indication	Approx less than 7.5V
Data hold	√
Unit symbol display	√
Function protect	√
Sampling rate	3times/s
Operation way	Manual range
Max. display	1999(3 1/2 digit)
LCD size	50mm×17mm
Battery	9V (6F22)
Power dissipation	Quiescent current approx. 3.5mA

General characteristic

Color	Dark grey
Weight	210g（including battery）
Size	160L x 79W x 43H(mm)
Standard accessory	Battery, manual, TP01　K type temperature probe
Packing	Gift box
Standard packing per carton	50pcs
Carton size
Standard G.W per carton	17.5kg

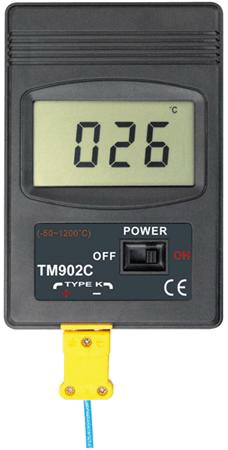

TM902C Digital thermometer (same as below Model: DM6902)
Features:
1.Large LCD makes the reading clearly;
2.Strong antimagnetic and anti-jamming performance.
Technical data:
　

Basic function	Range	Basic function
temperature	-50℃～400℃	≤3℃
temperature	400℃～1200℃	±(0.75%+1℃)

Special function	TM902C
Accuracy	± 3%
Low battery indication	Approx less than 7.5V
Function protect	√
Sampling rate	3times/s
Operation way	Manual range
Max. display	1999(3 1/2 digit)
LCD size	46mm×20mm
Battery	9V (6F22)
Power dissipation	Quiescent current approx. 1mA

General characteristic:

Color	Dark grey
Weight	120g（including battery）
Size	105mm×70mm×20mm
Standard accessory	Battery, manual, TP01　K type temperature probe
Packing	Gift box
Standard packing per carton	96pcs
Carton size	45.5×32.5mm×43.5cm
Standard G.W per carton	15kg

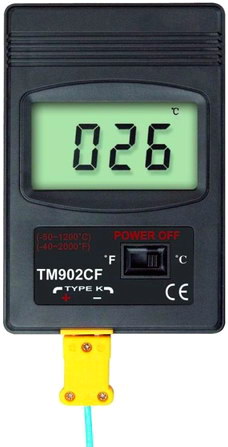

TM902CF  Digital thermometer
Features:
1.Large LCD makes the reading clearly;
2.Strong antimagnetic and anti-jamming performance.
Technical data:
　

Basic function	Range	Basic function
temperature	-50℃～12000℃	± 2%
	-40℉～32℉	≤2℉
	32℉～1999℉	±(0.75%+1℉)

Special function	TM902CF
Low battery indication	Approx less than 7.5V
Function protect	√
Sampling rate	3times/s
Operation way	Manual range
Max. display	1999(3 1/2 digit)
LCD size	46mm×20mm
Battery	9V (6F22)
Power dissipation	Quiescent current approx. 1mA

General characteristic:

Color	Dark grey
Weight	120g（including battery）
Size	105mm×70mm×20mm
Standard accessory	Battery, manual, TP01　K type temperature probe
Packing	Gift box
Standard packing per carton	96pcs
Carton size	45.5×32.5mm×43.5cm
Standard G.W per carton	15kg

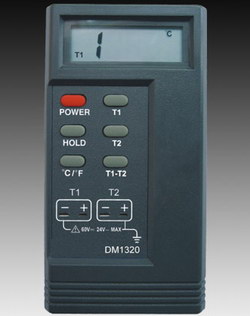

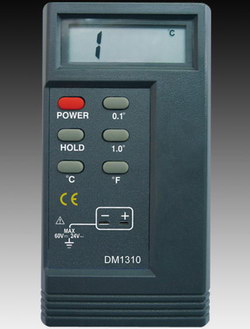

The DM1310 is with same funtion as DM6802A, but it is CHEAPER in price. The DM1320 is with same funtion as DM6802B, but it is CHEAPER in price.

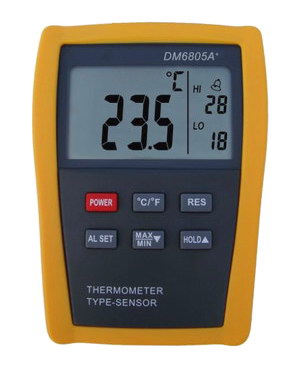

DM6805A+ Digital thermometer
Features:
1.Good quality with lower price;
2.Large LCD display, make reading clearly,
3.Stronger antimagnetic and anti-interferential function,
4.Popular design ,make operation simply,
5.Fast speed measure temperature, with the function of Max./ Min./ data hold and alarm function.

Technical data

Basic function	Range	Basic accuracy
Temperature	-50℃～300℃	±1℃
Temperature	-58℉～572℉	±1.8 ℉

Special function	DM6805A⁺
Clock function	-
announce hour function	-
clock function	-
Memory the Max./Min. value	√
Data hold, temperature alarm valve setting	√
frost point alarm	-
Long distance measuring	Line length: about 1 meter
sensor	external connect a temperature sensor
LCD size	67x40mm
battery	9V(6F22)

TM6902D DIGITAL THERMOMETER

(large LCD display) (very economical model)

Display: 3 1/2 digit 18mm LCD
Range: -50℃~750℃
Accuracy: ≤4℃　　 (-50℃ to -20℃)
　　　　　≤3℃　　 (-20℃ to 0℃)
±(0.75%rdg+1℃) 　　(0℃ to 750℃)
Sampling time: 0.4second
Dimensions: 118LX70WX29H(mm)

9881 PRINTING/DATALOGGING 2K TYPE THERMOMETER

Backlight for operating in dark area.
Tripod mountable for long time logging temperature.
Power off time selectable.
Matrix LCD.
Powered by 4pcs AA batteries or 9V DC adaptor.
3 measurement modes:
a) Single Measurement .
b) Multiple Measurement with Memory .
c) Datalogging function

Measurement Range : -200℃~1370℃(-328℉~2498℉)
Accuracy :±0.3% rdg + 0.7℃(±0.3% rdg + 1.3℉)
Measurement with Memory:99 points
Resolution : All range 0.1℃
Datalogging Measurement : 4000 points

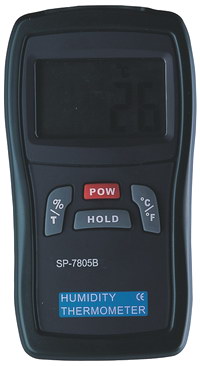

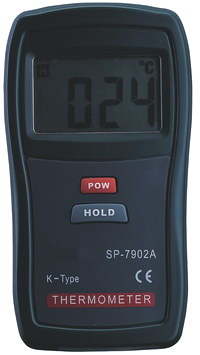

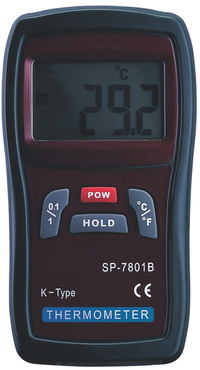

The below models 7801B and 7805B are with AUTO POWER OFF function than above thermometers Models. The model 7902A is an economical model.

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
