Bench-top PH Meter

Bench-top PH Meter, Bench-top pH / ORP / Temp Meter, Bench-Top Conductivity / Temp Meter

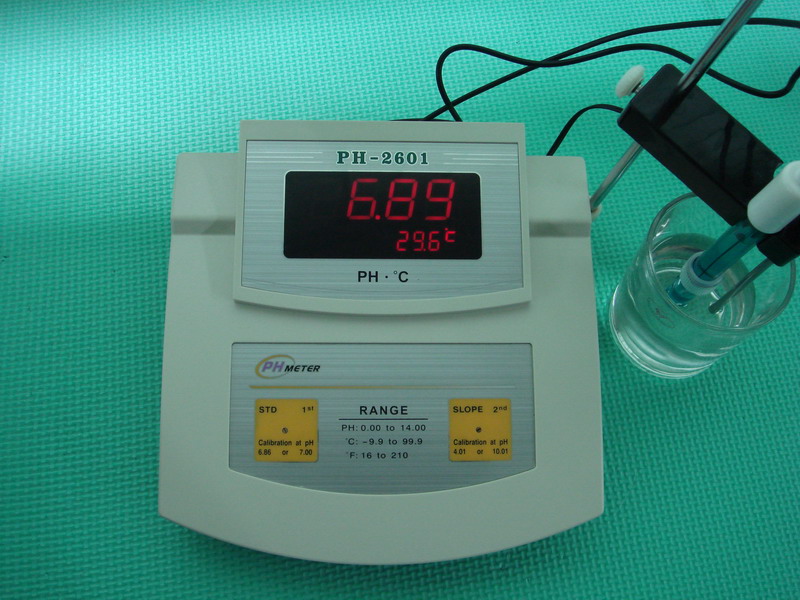

PH-2601 PH/Temp Meter

Range	PH: 0.00～14.00; °C:﹣9.9～99.9°C; ºF:16～210ºF
Resolution	PH :0.01PH; °C:±0。1 °C; ºF:±1ºF
Accuracy	PH :±0.05PH; °C:±1 °C; ºF:±2ºF
Calibration	1point or 2point
Power	DC9V 100mA
Operating Conditions	Temperature: 5～60°C Humidity: 95% maximum
Dimensions	208×200×76mm
Weight	390g
Standard electrode with	PH electrode, thermo electrode

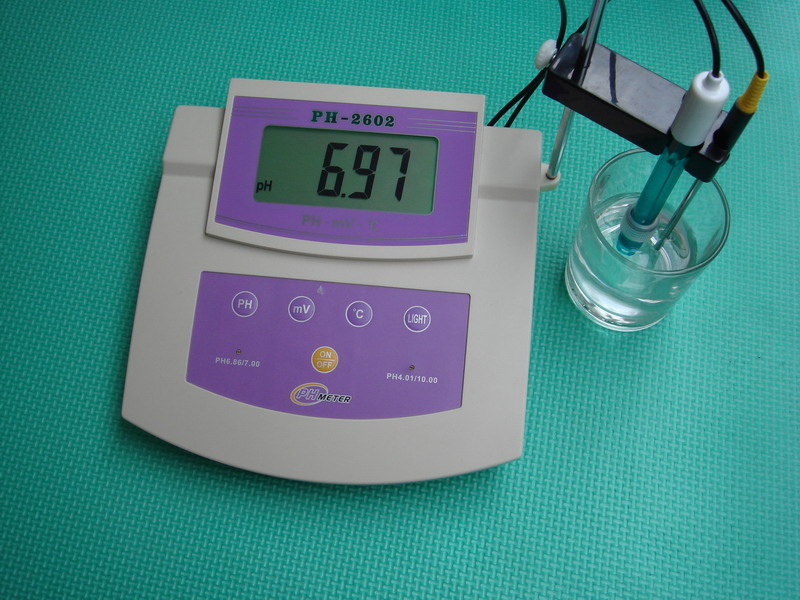

PH-2602 PH/ORP/Temp Meter

Range	PH:0.00～14.00; mV:0～±1999mV; °C:0～100°C
Resolution	PH:0.01PH; mV:1mV; °C:0.1°C
Accuracy	PH:±0.01PH; mV:±1mV; °C:±0.4°C
Calibration	1point or 2point
A T C	0～95°C
Power	DC9V/200mA or Rechargeable battery
Operating Conditions	Temperature: 5～60°C Humidity: 95% maximum
Dimensions	208×200×76mm
Weight	480g
Standard electrode with	PH electrode, thermo electrode

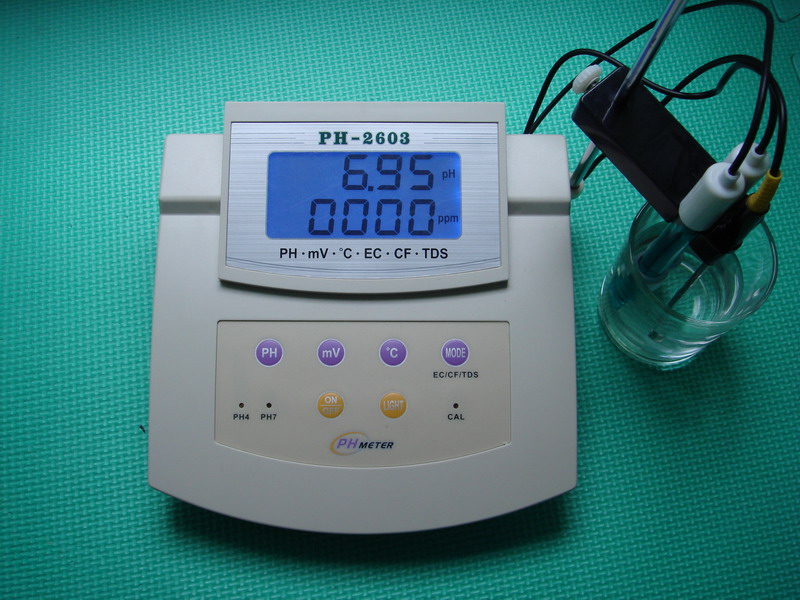

PH-2603 PH/ORP/Temp/EC/CF/TDS Meter

Range	PH: 0.00～14.00 mV: 0～±1999mV °C: 0～100°C EC: 0.00～19.99ms/cm CF: 0.0～199.9CF TDS: 10～19990ppm
Resolution	PH: 0.01PH mV: 1 mV °C: 1°C EC: 0.01 ms/cm CF: 0.1CF TDS: 10 ppm
Accuracy	PH: ±0.01PH mV: ±1mV °C: ±0.4°C EC.CF.TDS: ±2%F·S
Calibration	1point or 2point
A T C	0°C～95°C
Power	DC9V/200mA or Rechargeable battery
Operating Conditions	Temperature: 5～60°C Humidity: 95% maximum
Standard electrode with	PH electrode, thermo electrode
Dimensions	208×200×76mm

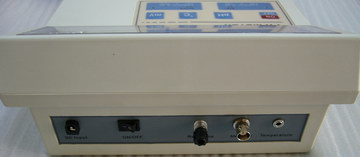

KL-016 Bench-top pH Meter
Measuring range:PH:0.00~14.00PH; mV:0~±1999mV; Temp:0~ 100℃
Accuracy: PH:±0.01pH; mV:±0.1% F.S ±1 digit; Temp: ±0.4℃
Resolution: PH: 0.01pH; mV: 1mV; Temp: 0.1℃
Environment Temperature: 0 ℃ ~ 50℃, Humidity:≤95%
Display: 4-digital LCD
Power Supply: AC110V/220V, 50/60Hz
Input Impedance: 1012Ω
Dimensions: 240×185×100mm3
Weight: 660g
Note: Standard packing without ORP probe.

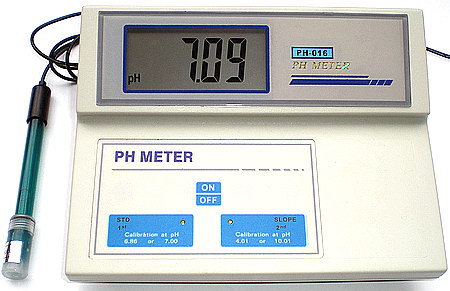

KL-016A Bench-top PH Meter
This model is designed based on KL-016, only with ph function.
Technical Specification:
Measuring rang: 0.00~14.00PH
Accuracy: ±0.05PH
Resolution: 0.01PH
Environment Temperature: 0℃~50℃ Humidity: ≤95%
Display: 4-digital LCD
Power Supply: Input AC220V, Output DC6V
Input Impedance: 1012
Dimensions: 240×185×100(mm3) Weight: 736g

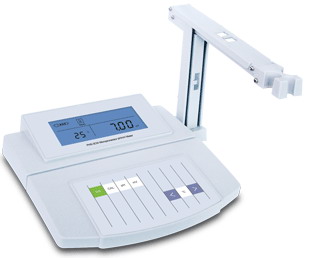

PHS-W series have three models, The meters measure the value of liquid acidity and alkalinity.
Product Features:
Multi-point push-button calibration (up to 3 points).
Auto-buffer recognition.
Viewing of electrode slope and offset value.
Automatic temperature compensation.
Large custom LCD display.

Model: PHS-25CW PH/ORP Meter
pH Range: 0.00 to 14.00pH
Resolution & Accuracy: 0.01 & 0.05pH
Range: 1999mV
Resolution & Accuracy: 1mV & 10mV
Calibration Points: 2 points
pH Buffer Options: pH4.00, pH6.86, pH9.18
Temperature Compensation: 0 to 99°C, Manual
Dimensions: 210mm(L) 205mm(W) 65mm(H)
Power: 9VDC, using AC adapters 110VAC/220VAC, 60/ 50Hz

Model: PHS-3CW PH/ORP Meter
pH Range: 0.00 to 14.00pH
Resolution & Accuracy: 0.01 & 0.01pH
Range: 1999mV
Resolution & Accuracy: 1mV & 2mV
Calibration Points: 2 points
pH Buffer Options: pH4.00, pH6.86, pH9.18
Temperature Compensation: 0 to 99°C, Manual
Dimensions: 210mm(L) 205mm(W) 65mm(H)
Power: 9VDC, using AC adapters 110VAC/220VAC, 60/ 50Hz

Model: PHS-3BW PH/ORP/Temp Meter
pH Range: 0.00 to 14.00pH
Resolution & Accuracy: 0.01 & 0.01pH
Range: 1999mV
Resolution & Accuracy: 1mV & 2mV
Temperature Range: 0 to 99 °C
Resolution & Accuracy: 1 °C & +1 °C
Calibration Points: 2 points
pH Buffer Options: pH4.00, pH6.86, pH9.18
Temperature Compensation: 0 to 99 °C, Manual or Automatic
Dimensions: 210mm(L) 205mm(W) 65mm(H)
Power: 9VDC, using AC adapters 110VAC/220VAC, 60/ 50Hz

PHS-W series pH/mV meter with electrode holder, pH buffer, refillable glass pH electrode and power adapter.

PHS-3WB with temperature probe.

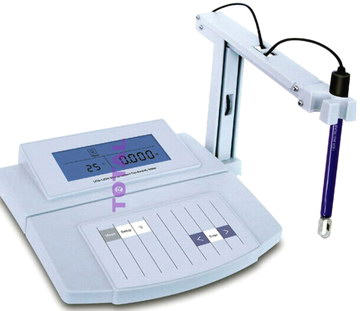

DDS-W series have three models, The electrical conductivity meters measure the capacity of ions in an aqueous solution to carry electrical current.
Product Features:
Single point push-button calibration.
Auto-ranging for conductivity measurements.
Selectable temperature coefficient and cell constant.
Automatic temperature compensation.
Large Custom LCD Display.
　

Model: DDS-11AW Conductivity Meter
Conductivity Range: 0 to 2.000, 20.00, 200.0uS/cm; 2.000, 20.00mS/cm
Accuracy: +1.5% Full Scale
Calibration Point for Conductivity: 1 point
Cell Constant: 0.1, 1.0 or 10.0 (selectable)
Temperature Coefficient: 2% per °C

Normalization Temperature: 25 °C
Dimensions: 210mm(L) 205mm(W) 65mm(H)
Power: 9VDC,using AC adapters 110VAC/220VAC, 60/ 50Hz

Model: DDS-307W Conductivity Meter
Conductivity Range: 0 to 2.000, 20.00, 200.0uS/cm; 2.000, 20.00mS/cm
Accuracy: +1% Full Scale
Calibration Point for Conductivity: 1 point
Cell Constant: 0.1, 1.0 or 10.0 (selectable)
Temperature Compensation: 0 to 50 °C, Manual
Temperature Coefficient: 0.0 to 3.9% per °C
Dimensions: 210mm(L) 205mm(W) 65mm(H)
Power: 9VDC,using AC adapters 110VAC/220VAC, 60/ 50Hz

Model: DDS-12DW Conductivity/Temp Meter
Conductivity Range: 0 to 2.000, 20.00, 200.0uS/cm; 2.000, 20.00mS/cm
Accuracy: +1% Full Scale
Temperature Range: 0 to 99 °C
Accuracy: 1 °C
Calibration Point for Conductivity: 1 point
Cell Constant: 0.1, 1.0 or 10.0 (selectable)
Temperature Compensation: 0 to 50 °C, Manual
Temperature Coefficient: 0.0 to 3.9% per °C
Dimensions: 210mm(L) 205mm(W) 65mm(H)
Power: 9VDC,using AC adapters 110VAC/220VAC, 60/ 50Hz
DDS-W series conductivity meter with electrode holder, conductivity electrode and power adapter.

Model DDS-12DW with temperature probe.

DDS-307 Conductivity Meter

Model	DDS-307
Range	0.001～2μS/cm 0.01～20μS/cm 0.1～200μS/cm 0.001～2ms/cm 0.01～20ms/cm 0.1～200mS/cm
Accuracy	±1% Full Scale
Power	DC9V 100mA
Operating Conditions	Temperature: 5～40℃ Humidity: 90% maximum
Dimensions	208×200×76mm
Weight	390g

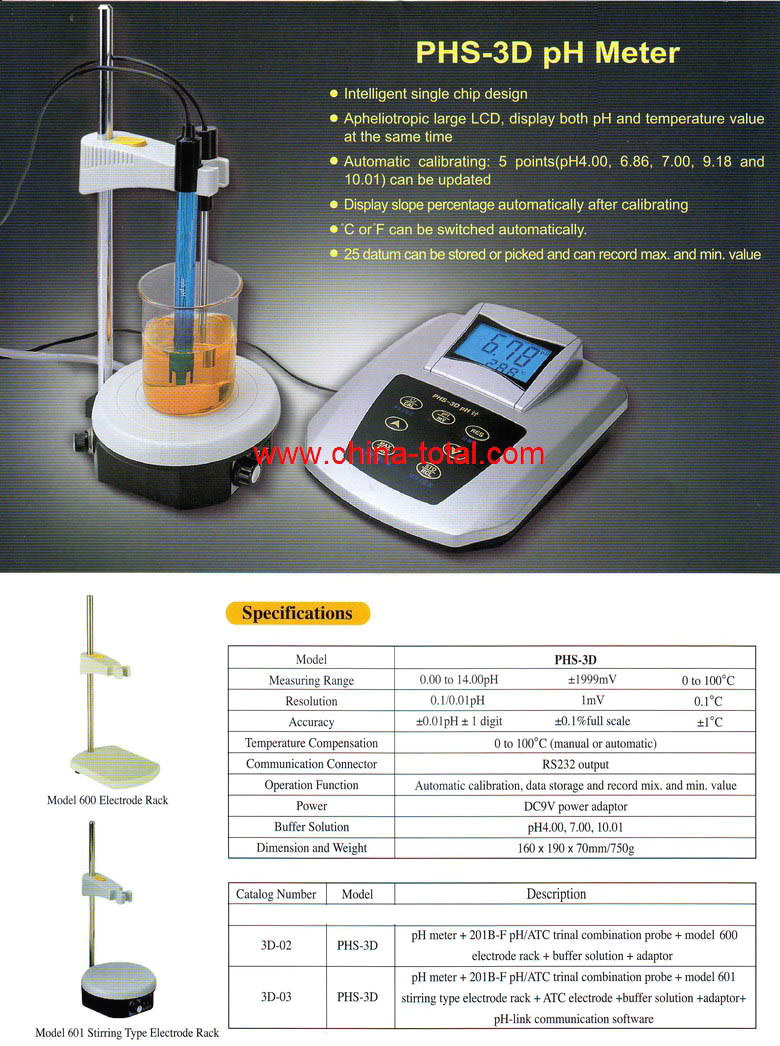

PHS-3D PH/ORP/Temp Meter

1) Microprocessor based with splash proof housing; Double-slope automatic calibrating and indicate percentage of slope (PTS) after calibration

2) Automatic/manual temperature compensation; Displays pH and temperature at the same time

3) Stores/recalls five pH auto-calibration points in memory; Min./max. storage and recall; RS-232 output lets you interface the meter with your personal computer

4) Equipped with PH-Link communication software (3D-03 only), it can display both pH and time curve on PC.

5) Equipped with model 601 stirring type electrode holder (3D-03 only)

Remarks:

Please see below drawing of model 101 electrode holder.
