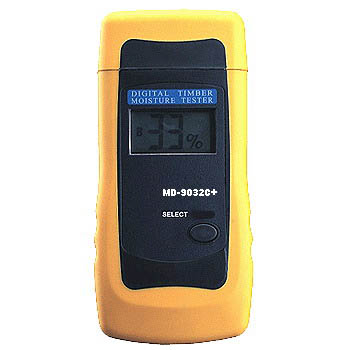

MD-9032C+
Intelligent wood moisture tester |
|
Product Features |
|
Secondary injection Shell, aesthetics solid |
|
Three species of intelligent choice, remove the user
computing |
|
Wide measurement range to 5% ~ 40% |
|
Onboard zero and calibration functions, simple operation |
|
LCD figures show that the visual clarity |
|
Two or three acupuncture needles, to meet different user
needs |
|
General characteristics |
|
Show : 2 LCD figures show that the character height of 15mm |
|
Sampling rate : 3 times / second |
|
Resolution : 1% |
|
Its range : 5% ~ 40% |
|
Measurement accuracy : ± 1% RDG d +1 |
|
Instrument Size : 147 (L), Brewer (W) x32 devices (H) mm |
|
Annex : Packed boxes Power : 9V batteries stacked one, the
models : 6F22 |
|
Weight : About Motorola (excluding batteries) |
|
|
MD-9034C+
Intelligent wood moisture tester |
|
Product Features |
|
Secondary injection Shell, aesthetics solid |
|
Three species of intelligent choice, remove the user
computing |
|
Wide measurement range to 5% ~ 40% |
|
Onboard zero and calibration functions, simple operation |
|
LCD figures show that the visual clarity |
|
Two or three acupuncture needles, to meet different user
needs |
|
General characteristics |
|
Show : 2 LCD figures show that the character height of 15mm |
|
Sampling rate : 3 times / second |
|
Resolution : 1% |
|
Its range : 5% ~ 40% |
|
Measurement accuracy : ± 1% RDG d +1 |
|
Instrument Size : 147 (L), Brewer (W) x32 devices (H) mm |
|
Annex : Packed boxes Power : 9V batteries stacked one, the
models : 6F22 |
|
Weight : About Motorola (excluding batteries) |
|
|
 |
 |
|
MD-9132C+ Several
significant new European standards LCD Wood Moisture |
|
Product Features |
|
Secondary injection Shell, aesthetics solid |
|
Double standard display options, so users can choose to show
5% to 40% or 0 to 100 (the European standard), to meet
different customer needs |
|
Onboard zero and calibration functions, simple operation |
|
LCD figures show that the visual clarity |
|
Two or four acupuncture needles, to meet different customer
needs |
|
General characteristics |
|
Show : 2 LCD figures show that the character height of 15mm |
|
Resolution : 1 or 1% |
|
Range : 1 ~ 100 or 5% ~ 40% |
|
Accuracy : ± d +1% RDG |
|
Power : 9V batteries stacked one, the models : 6F22 |
|
|

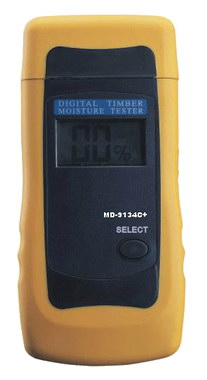

MD-9134C+
Several significant new European standards LCD Wood
Moisture |
|
Product Features |
|
Secondary injection Shell, aesthetics solid |
|
Double standard display options, so users can choose to show
5% to 40% or 0 to 100 (the European standard), to meet
different customer needs |
|
Onboard zero and calibration functions, simple operation |
|
LCD figures show that the visual clarity |
|
Two or four acupuncture needles, to meet different customer
needs |
|
General characteristics |
|
Show : 2 LCD figures show that the character height of 15mm |
|
Resolution : 1 or 1% |
|
Range : 1 ~ 100 or 5% ~ 40% |
|
Accuracy : ± d +1% RDG |
|
Power : 9V batteries stacked one, the models : 6F22 |
|
|
 |
 |
|

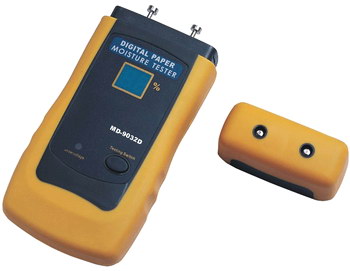

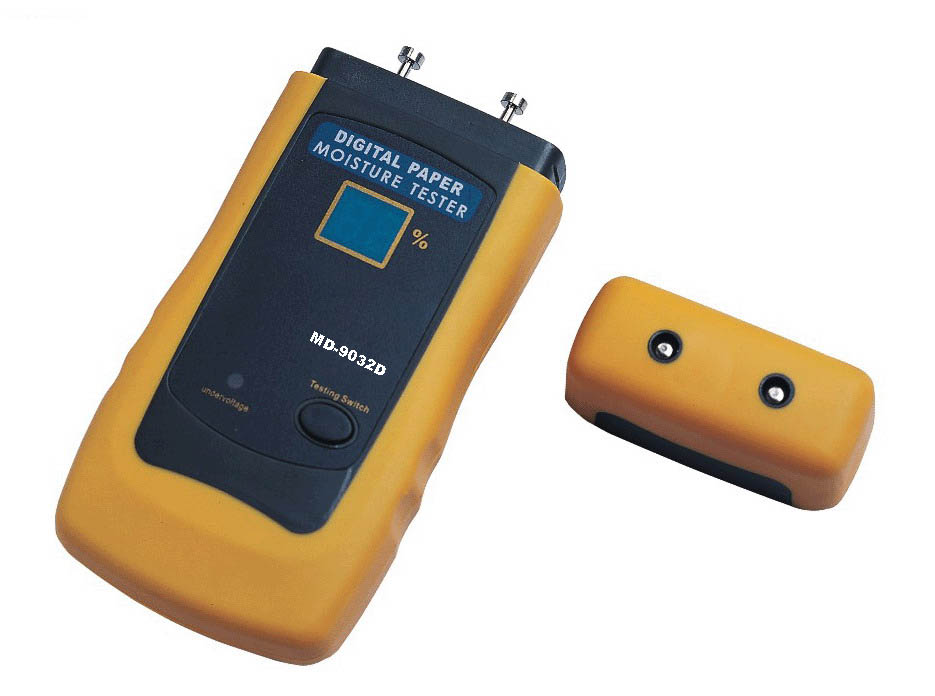

MD-9032D Paper
moisture tester |
|
Product Features |
|
Secondary injection Shell, aesthetics solid |
|
Wide measurement range to 5% ~ 40% |
|
Onboard zero and calibration functions, simple operation |
|
LCD figures show that the visual clarity |
|
General characteristics |
|
Show : 2 LCD figures show that the character height of 15mm |
|
Resolution : 1% |
|
Its range : 5% ~ 40% |
|
Accuracy : ± 1% RDG d +1 |
|
Power : 9V batteries stacked one, the models : 6F22 |
|
|
MD-9032E Intelligent
smart optional paper
moisture tester |
|
Product Features |
|
Secondary injection Shell, aesthetics solid |
|
Three species of intelligent choice, remove the user
computing |
|
Wide measurement range to 5% ~ 40% |
|
Onboard zero and calibration functions, simple operation |
|
LCD figures show that the visual clarity |
|
General characteristics |
|
Show : 2 LCD figures show that the character height of 15mm |
|
Resolution : 1% |
|
Its range : 5% ~ 40% |
|
Accuracy :±d +1% RDG |
|
Power : 9V batteries stacked one, the models : 6F22 |
|
|
|
 |
|
|

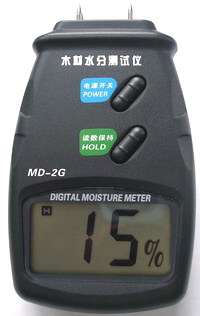

MODEL |

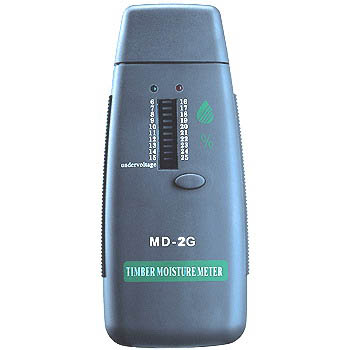

MD-2G 2pin |
|
Display
|
2X10
LED
|
|
Humidity
Range
|
7~35%
|
|
Resolving
Rate
|
1%
|
|
Accuracy
|
±1%
|
|
Voltage
|
15V
|
|
Dimension
|
215*65*38MM
|
|
|
MODEL |
MD-4G
4pin
|
|
Display
|
2X10
LED
|
|
Humidity
Range
|
7~35%
|
|
Resolving
Rate
|
1%
|
|
Accuracy
|
±1%
|
|
Voltage
|
15V
|
|
Dimension
|
215*65*38MM
|
|
MC-2G (2pin)
Display form : 2 x10 LED
Measurement scope:
Range I:7-15 %
Range II:16-35%
Resolution: 1%
Accuracy: ±1%
Working voltage:D/C9V (1x 6F-22 battery )
Conditions for application: Temperature 0-40℃
Relative Humidity ≤85%
Dimension:135x 43ⅹ21 mm
Weight: 110g
|
|
 |
 |
|
|

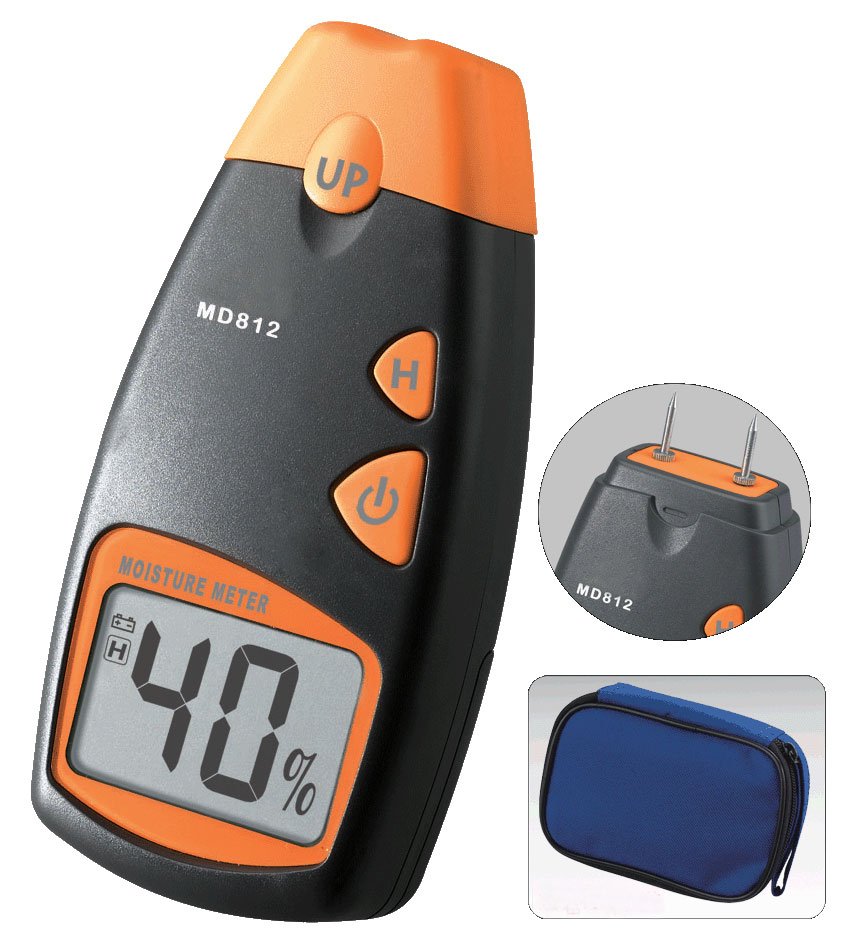

WOOD
Moisture meter
MD812 |
|
Digital large size LCD
display
Test Range:5% to 40%
Accuracy:±1%
Date hold and can hold value
Low battery symbol " "
Power:one 9V battery
Dimension:130Lx64Wx31H(mm) |
|
|

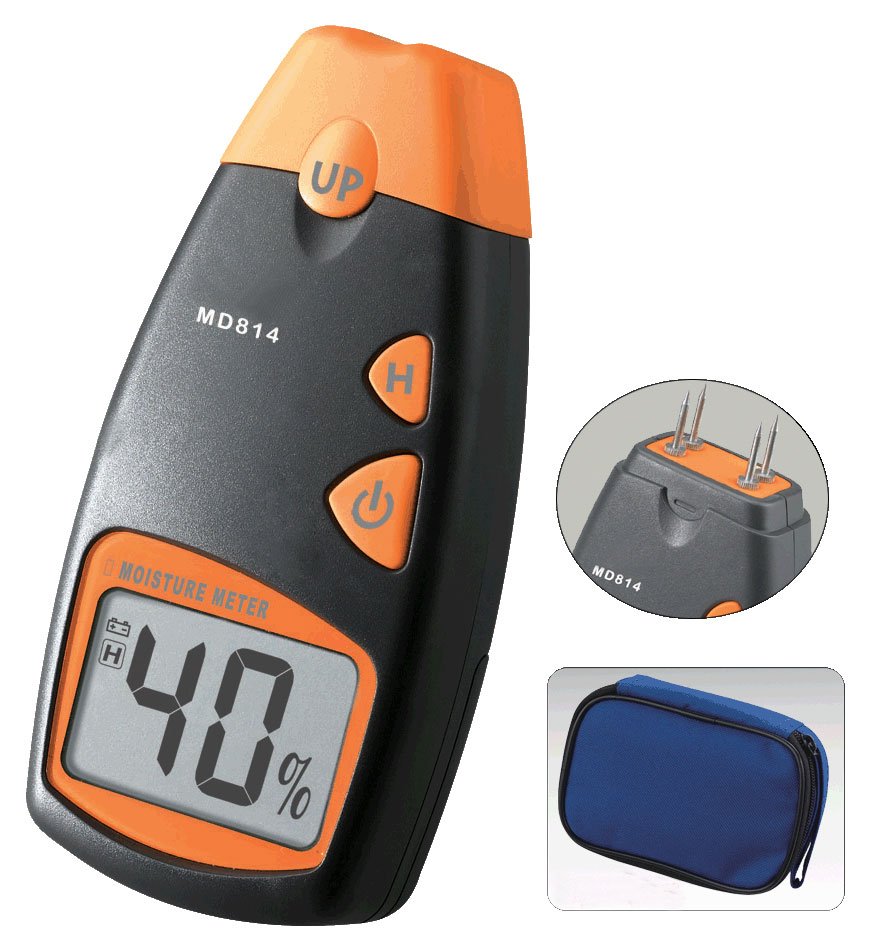

WOOD
Moisture meter
MD814 |
|
Digital large size LCD
display
Test Range:5% to 40%
Accuracy:±1%
Date hold and can hold value
Low battery symbol " "
Power:one 9V battery
Dimension:130Lx64Wx31H(mm)
|
|
MC-4G (4pin)
Display form : 2 x10 LED
Measurement scope:
Range I: 7-15 %
Range II:16-35%
Resolution: 1%
Accuracy: ±1%
Working voltage:D/C9V (1x 6F-22 battery )
Conditions for application: Temperature 0-40℃
Relative Humidity ≤85%
Dimension: 195×50×27 mm
Weight: 180g |
|
 |
 |
 |
|

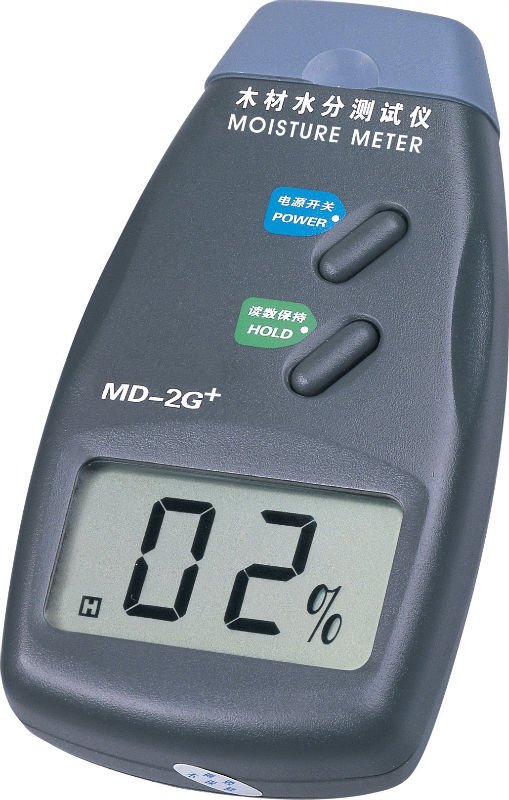

WOOD
Moisture meter
MD-2G+ |
|
Display: Large LCD
display
Measuring Range: 5%～40%
Resolution: 1%
Accuracy: ±1%
Battery: A 9V battery
Dimensions: 126×70×29mm
Data Hold, contact by 2 pins
|
|
|
WOOD Moisture meter
MD-4G+ |
|
Display: Large LCD display
Measuring Range: 5%～40%
Resolution: 1%
Accuracy: ±1%
Battery: A 9V battery
Dimensions: 126×70×29mm
Data Hold, contact by 4 pins
|
|
|

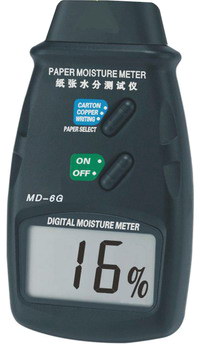

PAPER
Moisture meter
MD-6G |
|
Digital intelligent MCU
paper moisture meter can work on 3 types paper (carton, copperplate
paper, writing paper) through the spring contact precise measuring.
Display: Large LCD display
Range: 0-40%
Resolution: 1%
Operation temperature: 0℃～50℃ 20～90%RH
Battery consumption: approx.7.5mA
Power: 9V battery
Dimension: 126×70×29mm
Weight: Approx.82g(exclude the battery） |
|
