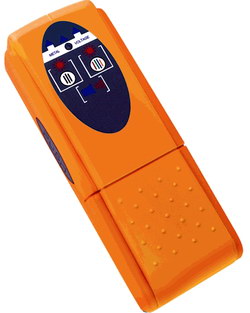

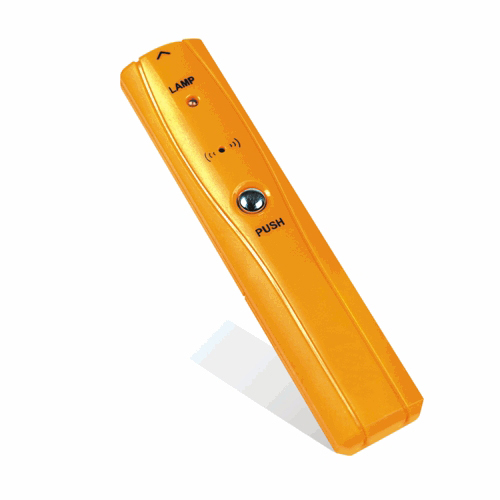

JDT-01 2 in 1 Metal/Voltage Detector

1. Function
The detector can test the location of metal and electrified wire inside wall
LCD will shine when the detector test metal or electrified wire
Operating temperature:0° to 60°C
Humidity: 90% RH (noncondensing)
Battery: 6F229V
•Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension:
Ctn size:        595×333×490
Q’TY / Ctn:      25
Gw/Nw:         15.5/14.5
Minimum Q'ty: 100pcs

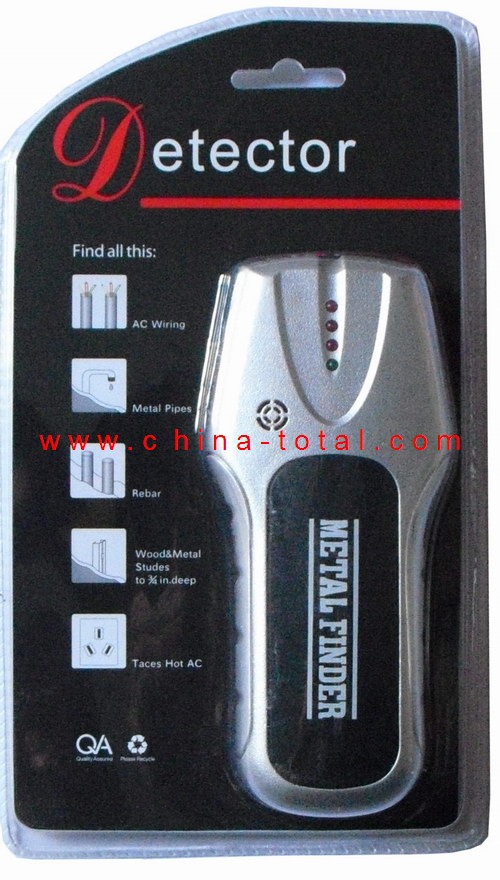

JDT-02 2 in 1 Metal/Voltage Detector

SPECIFICATION
Dimension:150×24×78mm
Weight:110g
Battery: 9V
Ambient Condition:-20C~60C
The detector can test the location of metal and electrified wire inside wall
The LED will light continuously(steadily)and with continuous buzzer sound while metal is being detected.
The LED will shine discontinuously and with discontinuous buzzer sound while electrified wire.

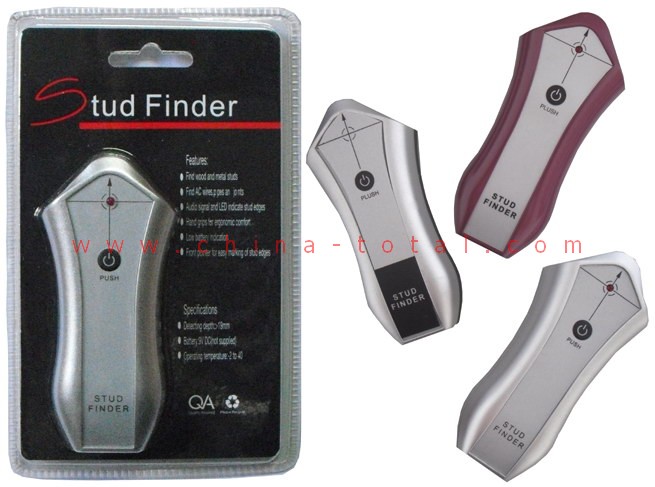

JDT-02A Stud Detector

Uses a special sensor that pinpoints the edges of wood studs behind walls or ceilings.
Calibrates instantly for immediate use.
Bright LEDs and an audio signal indicate stud edges.
Made to withstand daily jobsite use.
Fashionable design for easy to use and hold
Dimensions:150*70*35mm
Battery type:9-V alkaline (not included)
Accuracy: typically within 1/8 in. (3 mm) using the dual scan and mark procedure
Depth:Up to 3/4 in. (19 mm) in Stud Scan mode
Operating temperature: 20° to 120°F (-7° to 49°C)
Storage temperature: -20° to 150°F (-29° to 66°C)
Humidity:80% RH (noncondensing)
Water resistance:Splash and water resistant, not waterproof

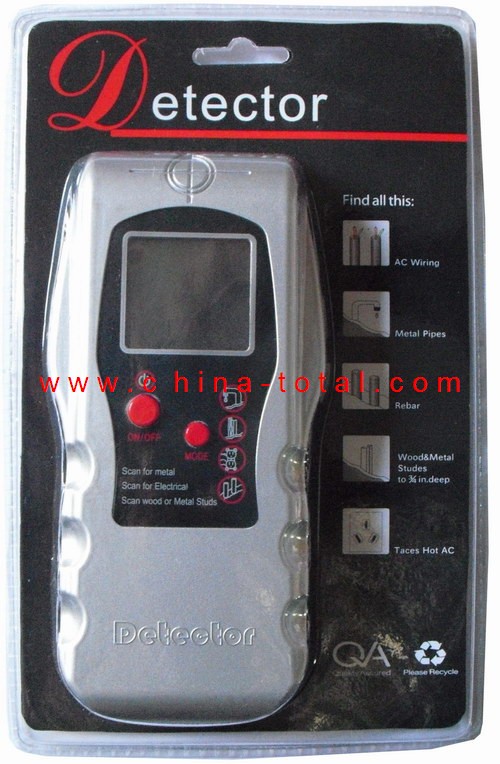

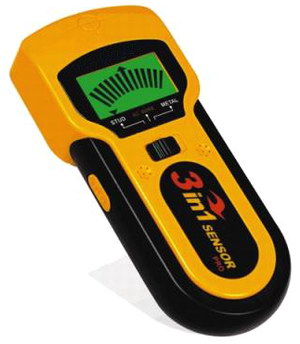

JDT-03 3 in 1 Metal/ Voltage/ Stud Detector

1. Function
JDT-03 uses electronic signals to locate the exact position of studs, ceiling joist AC wires and metal through drywall, concrete and other common wall materials. Once the edge of a stud has been detected, JDT-03 emits audio and visual signals (LED Display) that allow you to easily pinpoint its center position.
Utilizing the procedure of scanning and marking from two sides, JDT-03 will find the center of wood or metal studs or live wires through 3/4 inch surfaces within 1/8 inch accuracy.
Battery Life　　　　 : 1 year with normal use
Water Resistance　　 : Water resistant, but not waterproof.
Operating Temperature : +20℉ to + 120℉(-7℃ to +49℃)
Storage Temperature　: -20℉ to + 150℉(-29℃ to +66℃)
•Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension:     223×92×45mm
Ctn size:        595×333×490
Q’TY / Ctn:      25
Gw/Nw:         15.5/14.5
Minimum Q'ty: 100pcs

GC-3015 Metal/AC/Stud Detector with LED Display and Deep Stud Mode

Key Specifications/Special Features:

Auto balance for better operation

LED lights when the calibration achieved

Operation modes: AC, metal, stud, deep stud

Select the deep stud mode to enable the detection for studs hidden deeper in the wall

Sensitivity: 8cm (90 to 250V)

Metal: 6cm (for iron of dia 8mm)

Stud: 2.5cm

Deep stud: 3cm

Target indication: audio, LED

One 9V battery required

GC-3017 Metal/AC/Stud Detector with LCD and Power of 9V

Key Specifications/Special Features:

Operation modes: AC, metal, stud, deep stud

LCD indication

Sensitivity:

AC: 8cm(220V)

Metal: 6cm (for iron of dia 8mm x 15cm)

Stud: 2.5cm; deep stud: 3cm

Power: 1 x 9V

Unit size: 174 x 84 x 45m

GC-3018 Rebar Locater with LCD Display and Depth Indication

Key Specifications/Special Features:

Two modes are seperately used to detect ferrous, nonferrous metal

Auto balance

Indicate the location and depth of target with LCD and buzzer

Max sensitivity for metal is 15cm (for 12mm rebar of copper pipe, defecting in air)

Depth indication accuracy: +/-1"

Auto power-off

Low battery indication

One 9V battery required

GC-3019 Stud Detector with LED Display

Key Specifications/Special Features:

Operation mode: stud

Sensitivity: 25mm

Indication: LED and buzzer

Stud finder gives beam to locate the stud detected

Antihumidity ability as its core competitiveness superior to all others

Economical price

Static current: 6mA

Power: 1 x 9V battery

Unit size: 143 x 60 x 31mm

AR-903 Stud Detector

GENERAL FEATURES &SPECIFICATIONS
	AR-903
Detectable Distance	20mm
Detectable Metal Size	>2*10mm
Power On Indication	√
Quick Detect With Audio/LEDINDICATION	√
Adjustable Detection Control	________
Low Battery Indication	√
Auto Caliberation When Power On	√

GENERAL CHARACTERISTICS
Power	9v Battery(6F22)
Product Color	Dark Gray
Product Net Weight	167.5g
Product Size	17368.533.5mm

PACKING INFORMATION
Packing way	Blister
Standard Quantity Carton	40
Standard Carton Size	40.634.525.7cm
Standard Carton Gross Weight	10.2Kg

AR-904 Metal Detector

GENERAL FEATURES &SPECIFICATIONS

	AR-904
Detectable Distance	90mm
Detectable Metal Size	>2*10mm
Power On Indication	√
Detection Indication	Audio & Visiable
Adjustable Detection Control	√
Low Battery LED Indication	√
Supper Bright LED For Locking PositionLED	√


GENERAL CHARACTERISTICS
Power	9vBattery
Product Color	Dark Gray
Product Net Weight	250g
Product Size	28084.532mm

PACKING INFORMATION
Packing way	Blister
Standard Quantity Carton	40
Standard Carton Size	47.645.135.6cm
Standard Carton Gross Weight	14.9Kg

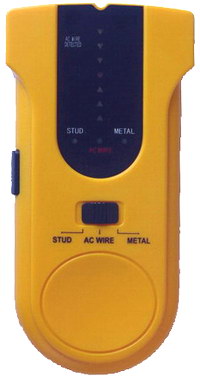

AR-906 3 in 1 Stud /Metal / AC Wire Detector

GENERAL FEATURES &SPECIFICATIONS
	AR-906
Single Button Operation	√
Detectalbe Item	Stud,Metal,AC Wire
General Detect Depth	0.5inch/12.7mm
Deeply Detect Depth	1.5inch/38.1mm
LCD Display	√
Different Audio Sounds As Different Items Is Detected	√
Automatic Caliberation When Power On	√
Automatic/Manual Power Shut Off	√
Low Battery Indication	√
LED Location Locking	√

GENERAL CHARACTERISTICS
Power	9v Battery(6F22)
ProductColor	Dark Gray
Product Net Weight	225g
Product Size	2017639.5mm

PACKING INFORMATION
Packing way	Blister
Standard Quantity Carton	40
Standard Carton Size	54.537.528.5cm
Standard Carton Gross Weight	12.84Kg

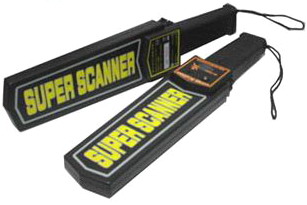

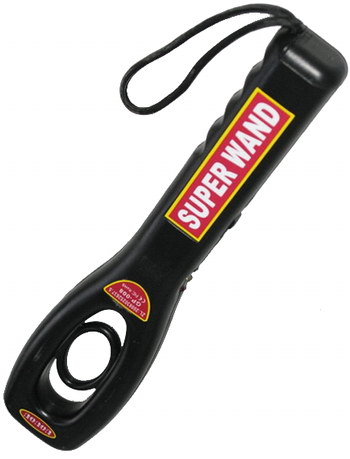

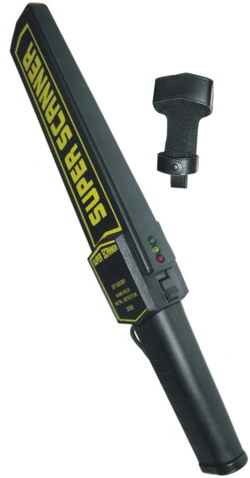

MD3003B1 Handheld Metal Detector with Red LED Alert

Red LED Indicator lights when the Metal Detector detects metal
Earphone Jack lets you connect an optional earphone to the security wand so you can scan in privacy
Sensitivity:A 25-cent coin: 2.5 inch(0.6 inch)
Iron pipe-tube in ?20mm: 4 inch(1.2 inch)
Adjustment:Continuous
Alert:Audio, LED light, Vibration(for TS90A)
Power:9V battery (6F22)
Dimensions(W×L×T):80×420×40 mm
Weight:430g (with battery)

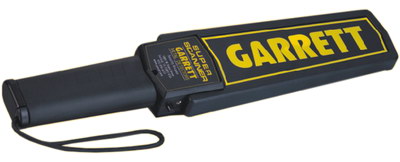

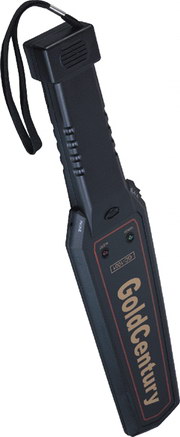

GC-1001 Handheld Metal Detector with Audio and Red LED Alert

Key Specifications/Special Features:

-Operating frequency: 52kHz +/- 10% (sine wave)

-Sensitivity: >5cm (for a US quarter)

-Indication: audio alert and LED (red) alert

-Audio tone changes as the metal size changes

-Blinking green indicator when the unit is working properly

-Headphone jack: 1/8-inch (for silent operation)

-Low sensitivity: to lower the sensitivity, used in place with interference

-LED indicators on both front and back faces are optional

-Low battery indication

-One 9V battery required

GC-1004 Metal Detectors with Portable Handle and Adjustable Sensitivity

Key Specifications/Special Features:

-Adjustable sensitivity

-LED lights only / buzzer and LED indication

-Low battery indication One 9V battery required

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
