Digital AC/DC Power Clamp Meter

¡¡

(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)

¡¡

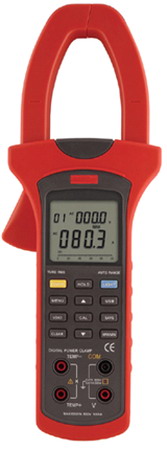

SRT231

SRT231 Digital Power Clamp Meters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

AC Voltage

15V/100V/300V/600V

¡À(1.2%+5)

AC Current

40A/100A/400A/1000A

¡À(2%+5)

Active Power

0.01kW-600kW

¡À(3%+5)

Apparent Power

0.01kVA-600kVA

¡À(3%+5)

Reactive Power

0.01kVAr-600kVAr

¡À(4%+5)

Power Factor

0.3~1(Capacitive or Inductive )

¡À(0.02+2)

Phase Angle

0¡ãC~360¡ãC

¡À1¡ã

Frequency

20Hz-500Hz

Yes

Active Energy

1~9999 kWh

¡À(3%+2)

Temperature

-50¡ãC~1000¡ãC
-50¡ãF~1832¡ãF

¡À(1%+3)
¡À(1%+5)

Special Functions





Auto Ranging



Yes

Single-phase 2-wire



Yes

True RMS

AC Voltage or Current

Yes

Calibration Feature



Yes

Data Logging

99

Yes

Data Recall



Yes

Max/Min Mode



Yes

Data Hold



Yes

USB



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

¡Ý10M¦¸

Yes

Max. Display

9999

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

1.5V Battery (LR6) x 4

LCD Size

46 x 42mm

Product Color

Red and Grey

Product Net Weight

601g

Product Size

303 x 112 x 39mm

Standard Accessories

Test Lead, Battery, English Manual, Point Contact Temperature Probe, Alligator Clips, USB Interface Cable, Software, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

480 x 372 x 315 mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

12kg

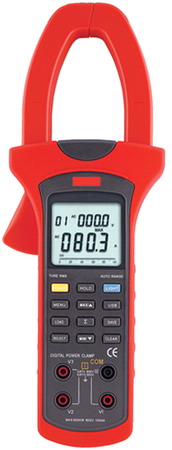

SRT232

¡¡

SRT232 Digital Power Clamp Meters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

AC Voltage

15V/100V/300V/600V

¡À(1.2%+5)

AC Current

40A/100A/400A/1000A

¡À(2%+5)

Active Power

0.01kW-600kW

¡À(3%+5)

Apparent Power

0.01kVA-600kVA

¡À(3%+5)

Reactive Power

0.01kVAr-600kVAr

¡À(4%+5)

Power Factor

0.3~1(Capacitive or Inductive )

¡À(0.02+2)

Phase Angle

0¡ãC~360¡ãC

¡À1¡ã

Frequency

20Hz-500Hz

Yes

Active Energy

1~9999 kWh

¡À(3%+2)

Special Functions





Auto Ranging



Yes

Single-phase 2-wire



Yes

3-phase 3-wire



Yes

3-phase 4-wire



Yes

True RMS

AC Voltage or Current

Yes

Calibration Feature



Yes

Data Logging

99

Yes

Data Recall



Yes

Max/Min Mode



Yes

Data Hold



Yes

USB



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

¡Ý10M¦¸

Yes

Max. Display

9999

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

1.5V Battery (LR6) x 4

LCD Size

46 x 42mm

Product Color

Red and Grey

Product Net Weight

601g

Product Size

303 x 112 x 39mm

Standard Accessories

4pcs of Test Lead, Battery, English Manual, 4pcs of Alligator Clips, USB Interface Cable, Software, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

480 x 372 x 315 mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

12kg

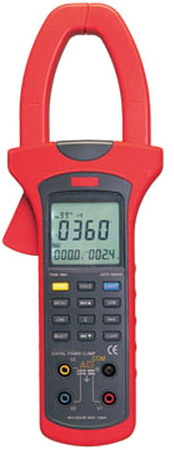

SRT233

¡¡

SRT233 Digital Power Clamp Meters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

AC Voltage

15V/100V/300V/600V

¡À(1.2%+5)

AC Current

40A/100A/400A/1000A

¡À(2%+5)

Active Power

0.01kW-600kW

¡À(3%+5)

Apparent Power

0.01kVA-600kVA

¡À(3%+5)

Reactive Power

0.01kVAr-600kVAr

¡À(4%+5)

Power Factor

0.3~1(Capacitive or Inductive )

¡À(0.02+2)

Phase Angle

0¡ãC~360¡ãC

¡À1¡ã

Frequency

20Hz-500Hz

Yes

Active Energy

1~9999 kWh

¡À(3%+2)

Special Functions





Auto Ranging



Yes

Single-phase 2-wire



Yes

3-phase 3-wire



Yes

3-phase 4-wire



Yes

Phase Rotation Test ¡¡ Yes

True RMS

AC Voltage or Current

Yes

Calibration Feature



Yes

Data Logging

99

Yes

Data Recall



Yes

Max/Min Mode



Yes

Data Hold



Yes

USB



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

¡Ý10M¦¸

Yes

Max. Display

9999

Yes

GENERAL CHARACTERISTICS

Power

1.5V Battery (LR6) x 4

LCD Size

46 x 42mm

Product Color

Red and Grey

Product Net Weight

601g

Product Size

303 x 112 x 39mm

Standard Accessories

4pcs of Test Lead, Battery, English Manual, 4pcs of Alligator Clips, USB Interface Cable, Software, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

480 x 372 x 315 mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

12kg

¡¡

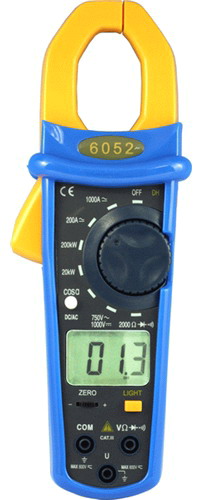

NAME: DT-6052 3 1/2 DIGITAL AC/DC POWER CLAMP MULTIMETER

* Function: AC /DC Voltage, AC/DC Current, AC/DC Watt and Cos¦Á test, Resistance, Diode test and Audible continuity test.
* Display: 3 1/2 digit LCD with a max. reading of 1999.
* AC/DC Current to 1000A
* AC/DC Voltage to 750V/1000V
* AC/DC Watt and Cos
¦Á test to 200KW
* Clamp opening size: 1.57" (40mm)
* Data Hold to freeze the displayed value
* Back light
* Safety: According to EN61010-1 protection class
¢ò overvoltage category (CAT ¢ó 600V) pollution degreen 2.
* Power supply: 9V Zinc-carbon battery.
* Dimension: 242(H)¡Á80(W)¡Á44(D)mm.

¡¡

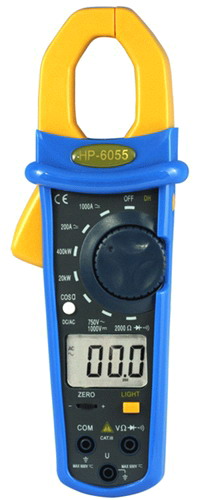

NAME: DT-6055 3 1/2 DIGITAL AC/DC POWER CLAMP MULTIMETER

* Function: AC /DC Voltage, AC/DC Current, AC/DC Watt and Cos¦Á test, Resistance, Diode test and Audible continuity test.
* Display: 3 1/2 digit LCD with a max. reading of 1999.
* AC/DC Current to 1000A
* AC/DC Voltage to 750V/1000V
* AC/DC Watt and Cos
¦Á test to 400KW
* Clamp opening size: 1.57" (40mm)
* Data Hold to freeze the displayed value
* Back light
* Safety: According to EN61010-1 protection class
¢ò  overvoltage category (CAT ¢ó 600V) pollution degreen 2.
* Power supply: 9V Zinc-carbon battery.
* Dimension: 242(H)¡Á80(W)¡Á44(D)mm.



( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
