Digital AC/DC Clamp Meter

﹛

(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)

﹛

SRT Series



SRT203

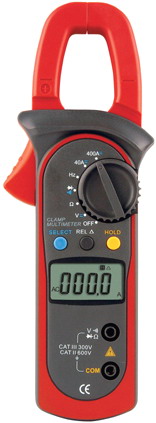

SRT203 Digital Clamp Multimeters

SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V ㊣(0.8%+1)
AC Voltage 4V/40V/400V/600V ㊣(1%+5)
DC Current 40A/400A ㊣(2%+3)
AC Current 40A/400A ㊣(2.5%+5)
Resistance 400次/4k次/40k次/400k次/4M次/40M次 ㊣(1%+2)
Frequency 10Hz~1MHz ㊣(0.1%+3)
Duty Cycle 0.1%~99.9% Yes
Special Functions
Auto Ranging         Yes
Diode         Yes
Continuity Buzzer         Yes
Relative Mode         Yes
Data Hold         Yes
Sleep Mode         Yes
Low Battery Display         Yes
Input Impedance for DC Voltage Measurement ≡10M次 Yes
Max. Display         3999
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 200g
Product Size 210 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 535 x 490 x 330mm (0.087 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg

SRT204

﹛

SRT204 Digital Clamp Multimeters

SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V ㊣(0.8%+1)
AC Voltage 4V/40V/400V/600V ㊣(1%+5)
DC Current 40A/400A ㊣(2%+3)
AC Current 40A/400A ㊣(2.5%+5)
Resistance 400次/4k次/40k次/400k次/4M次/40M次 ㊣(1%+2)
Frequency 10Hz~1MHz ㊣(0.1%+3)
Duty Cycle 0.1%~99.9% Yes
Special Functions
Auto Ranging         Yes
True RMS ﹛ Yes
Diode         Yes
Continuity Buzzer         Yes
Relative Mode         Yes
Data Hold         Yes
Sleep Mode         Yes
Input Impedance for DC Voltage Measurement ≡10M次 Yes
Max. Display         3999
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 200g
Product Size 210 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 535 x 490 x 330mm (0.087 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg

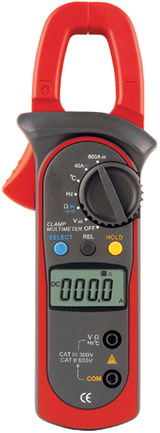

SRT204A

﹛

SRT204A Digital Clamp Multimeters

SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V ㊣(0.8%+1)
AC Voltage 4V/40V/400V/600V ㊣(1%+5)
DC Current 40A/600A ㊣(2.5%+5)
AC Current 40A/600A ㊣(2.5%+5)
Resistance 400次/4k次/40k次/400k次/4M次/40M次 ㊣(1%+2)

Capacitance

4nF/40nF/400nF/4µF/40µF/100µF

㊣(4%+3)
Frequency 10Hz~10MHz ㊣(0.5%+3)
Temperature (∼C) -40∼C ~ 1000∼C ㊣(2.5%+3)
Special Functions
Auto Ranging         Yes
Jaw Capacity 28mm Yes
Diode         Yes
Auto Power Off ﹛ Yes
Continuity Buzzer         Yes
Low Battery Display         Yes
Data Hold         Yes
MAX Mode         Yes
Setup         Yes
Input Impedance for DC Voltage Measurement ≡10M次 Yes
Max. Display         3999
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 260g
Product Size 208 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 535 x 490 x 330mm (0.087 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg

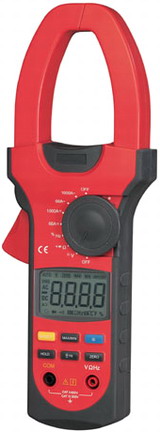

SRT207

﹛

SRT207 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

6.6V/66V/600V

㊣(0.8%+1)

AC Voltage

6.6V/66V/600V

㊣(1.2%+5)

DC Current

66A/1000A

㊣(1.5%+8)

AC Current

66A/1000A

㊣(2%+8)

Resistance

660次/6.6k次/66k次/660k次/6.6M次/66M次

㊣(1%+2)

Temperature

-40∼C~1000∼C (-40∼F~1832∼F)



Frequency

660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz

㊣(0.1%+3)

Duty Cycle

0.1% ~ 99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Max/Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10M次

Yes

Max. Display

6666

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery (1604A or 6LF22)

LCD Size

47 x 30mm

Product Color

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Alkaline Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Carton Gross Weight

5pcs

Standard Carton Gross Weight

480 x 372 x 315mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

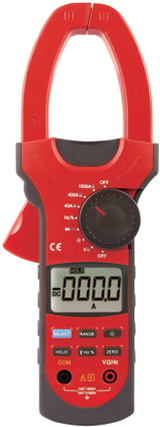

SRT207A

﹛

SRT207A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/1000V

㊣(0.8%+1)

AC Voltage

400mV/4V/40V/400V/750V

㊣(1.2%+3)

DC Current

40A/400A/1000A

㊣(1.5%+5)

AC Current

40A/400A/1000A

㊣(2%+2)

Resistance

400次/4k次/40k次/400k次/4M次/40M次

㊣(1%+2)

Temperature (∼C)

-40∼C ~ 1000∼C



Capacitance

4nF/40nF/400nF/4µF/40µF/100µF



Frequency

10Hz/100Hz/1kHz/10kHz/1MHz/10MHz

㊣(0.1%+3)

Duty Cycle

0.1% ~ 99,9%

Yes

Special Functions



Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC



Frequency Measurement by Conductor



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

≡10M次

Yes

Max. Conductor Diameter

55mm

Yes

Max. Display

4000

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

47 x 30mm

Product Colour

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

480 x 372 x 315mm (0.056CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT208

﹛

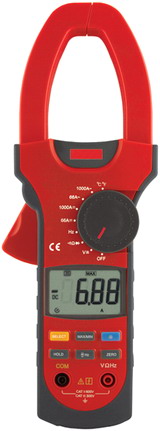

SRT208 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

6.6V/66V/600V

㊣(0.8%+1)

AC Voltage

6.6V/66V/600V

㊣(1.2%+5)

DC Current

66A/1000A

㊣(1.5%+8)

AC Current

66A/1000A

㊣(2%+8)

Resistance

660次/6.6k次/66k次/660k次/
6.6M次/66M次

㊣(1%+2)

Temperature

-40∼C~1000∼C
-40∼F~1832∼F

㊣(1%+3)
㊣(1%+4)

Frequency

660Hz/6.6kHz/66kHz/660kHz/
6.6MHz/66MHz

㊣(0.1%+3)

Duty Cycle

0.1% ~ 99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Max/Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10M次

Yes

Max. Display

6666

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery (1604A or 6LF22)

LCD Size

47 x 30mm

Product Color

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Alkaline Battery, English Manual, Point Contact Temperature Probe, Tool Box

Standard Individual Packing

Gift Box

Standard Carton Gross Weight

5pcs

Standard Carton Gross Weight

480 x 372 x 315mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT208A

﹛

SRT208A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/1000V

㊣(0.8%+1)

AC Voltage

400mV/4V/40V/400V/750V

㊣(1.2%+3)

DC Current

40A/400A/1000A

㊣(1.5%+5)

AC Current

40A/400A/1000A

㊣(2%+2)

Resistance

400次/4k次/40k次/400k次/4M次/40M次

㊣(1%+2)

Temperature (∼C)

-40∼C ~ 1000∼C

㊣(2.5%+3)

Capacitance

4nF/40nF/400nF/4µF/40µF/100µF

㊣(4%+3)

Frequency

10Hz/100Hz/1kHz/10kHz/1MHz/10MHz

㊣(0.1%+3)

Duty Cycle

0.1% ~ 99,9%

Yes

Special Functions



Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC



Frequency Measurement by Conductor



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

≡10M次

Yes

Max. Conductor Diameter

55mm

Yes

Max. Display

4000

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

47 x 30mm

Product Colour

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Battery,English Manual, Tool Box, Point Contact Temperature Probe

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

480 x 372 x 315mm (0.056CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT209

﹛

SRT209 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

㊣(0.8%+1)

AC Voltage

400mV/4V/40V/400V/600V

㊣(1.2%+5)

DC Current

40A/1000A

㊣(1.5%+8)

AC Current

40A/1000A

㊣(2%+8)

Resistance

400次 / 4k次 / 40k次 / 400k次 / 4M次 / 40M次

㊣(1%+2)

Temperature

-40∼C~1000∼C
-40∼F~1832∼F

㊣(1%+3)
㊣(1%+4)

Frequency

4kHz/40kHz/400kHz/4MHz/40MHz

㊣(0.1%+3)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Peak Max / Peak Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10MW

Yes

Max. Display

4000

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery (1604A or 6LF22)

LCD Size

47 x 30mm

Product Color

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Alkaline Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Carton Gross Weight

5pcs

Standard Carton Gross Weight

480 x 372 x 315mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT209A

﹛

SRT209A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/1000V

㊣(0.8%+1)

AC Voltage

400mV/4V/40V/400V/750V

㊣(1.2%+3)

DC Current

40A/400A/1000A

㊣(1.5%+5)

AC Current

40A/400A/1000A

㊣(2%+2)

Resistance

400次/4k次/40k次/400k次/4M次/40M次

㊣(1%+2)

Temperature (∼C)

-40∼C ~ 1000∼C



Capacitance

4nF/40nF/400nF/4µF/40µF/100µF



Frequency

10Hz/100Hz/1kHz/10kHz/1MHz/10MHz

㊣(0.1%+3)

Duty Cycle

0.1% ~ 99,9%

Yes

Special Functions



Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC

Yes

Frequency Measurement by Conductor



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

≡10M次

Yes

Max. Conductor Diameter

55mm

Yes

Max. Display

4000

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

47 x 30mm

Product Colour

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Battery,English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

480 x 372 x 315mm (0.056CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

﹛

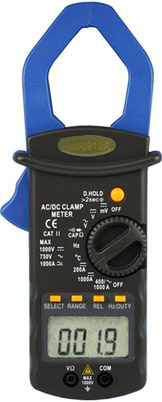

Product name: XHST6910A 3 3/4 DIGITAL AC/DC CLAMP MULTIMETER

1. Function
•AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency ,Diode Continuity Test
• Display: 3 3/4 digit LCD with a max. reading of 3999
• AC/DC Current to1000A
• DC Voltage to 1000V/ AC Voltage to 750V
• Clamp opening size: 1.89" (48mm)
• Data Hold to freeze the displayed value
• Back light
• Auto Power Off
• Safety:According to EN61010-1 protection class II overvoltage category(CAT III 600V) pollution degreen 2.
• Power supply: 9V Zinc-carbon battery
SPECIFICATIONS:
DC Current:40A,1000A
AC Current:40A,1000A
AC Voltage: 400mV , 4V , 40V , 400V ,750V
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
Resistance(次): 400次, 4K次, 40K次, 400K次, 4M次, 40M次
Capacitance: 40nF, 400nF, 4uF, 40uF, 100uF
Frequency: 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz
*Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension:   225(H)℅90(W)℅45(D)mm
Ctn size:       530℅310℅400
Q'TY / Ctn:     30pcs
Gw/Nw:        19/18KG

﹛

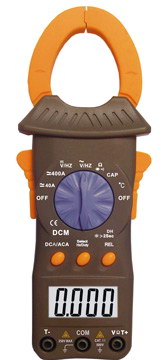

Product name: XHST6203 3 3/4 DIGITAL AC/DC CLAMP MULTIMETER (super thin)

1. Function
•AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency ,Diode Continuity Test, Temperature
• Display: 3 3/4 digit LCD with a max. reading of 3999
• AC/DC Current to1000A
• DC Voltage to 600V/ AC Voltage to 600V
• Clamp opening size(double open jaw):1.61" (41mm)
• Temperature: -20∼C~800∼C
• Data Hold to freeze the displayed value
• Back light
• Auto Power Off
• Safety:According to EN61010-1 protection class II overvoltage category(CAT III 600V) pollution degreen 2.
• Power supply: 9V Zinc-carbon battery
SPECIFICATIONS:
AC Current:40A,1000A
AC Voltage: 400mV , 4V , 40V , 400V ,600V
DC Voltage: 400mV, 4V, 40V, 400V,600V
Resistance(次): 400次, 4K次, 40K次, 400K次, 4M次, 40M次
Capacitance: 40nF, 400nF, 4uF, 40uF, 100uF
Frequency: 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz
*Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension: 179(H)℅73(W)℅26(D)mm
Ctn size: 478℅318℅315
Q'TY / Ctn:100pcs
Gw/Nw:   14.5/13.5KG
Minimum Q'ty: 40pcs

﹛

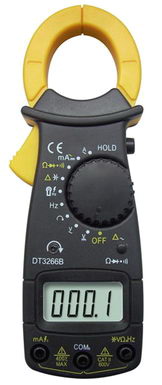

DT3266B 3 1/2 DIGITAL AC/DC CLAMP METER


 ﹛Function ﹛Range ﹛Accuracy
﹛DC voltage ﹛400m-4-40-400-600V ﹛㊣1.0%
﹛AC voltage ﹛400m-4-40-400-600V ﹛㊣1.2%
﹛DCA ﹛40m-400mA ﹛㊣1.5%
﹛ACA ﹛40m-400mA ﹛㊣1.5%
﹛CAP ﹛40n-100nF ﹛㊣4.5%
﹛OHM ﹛400-4K-40K-400K-4M-40M次 ﹛㊣1.0%
﹛ACA(CLAMP) ﹛400-600A ﹛㊣2.0%
﹛Frequency ﹛10Hz~10MHz ﹛㊣0.5%
﹛Frequency(CLAMP) ﹛10Hz~10KHz ﹛㊣1.0%
﹛Power supply ﹛(AAA) 1.5V℅2
﹛Max display ﹛3999
﹛Data hold ﹛YES
﹛Weight ﹛160g
﹛Dimension ﹛160L℅55W℅22Hmm
﹛Accessories ﹛operation manual, test leads

﹛

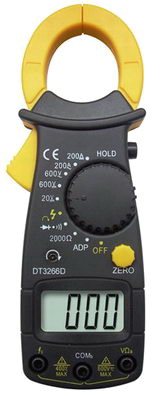

DT3266D 3 1/2 DIGITAL AC/DC CLAMP METER

﹛


﹛		 ﹛Function ﹛Range ﹛Accuracy
﹛DC voltage ﹛200-600V ﹛㊣1.0%
﹛AC voltage ﹛600V ﹛㊣1.2%
﹛OHM ﹛2000次 ﹛㊣1.0%
﹛ACA ﹛200 A ﹛㊣2.0%
﹛DCA ﹛200 A ﹛㊣2.0%
﹛Power supply ﹛(AAA) 1.5V℅2
﹛Max display ﹛1999
﹛Data hold ﹛YES
﹛Live wire detect ﹛YES
﹛Phase sequence test ﹛YES
﹛Audible continuity ﹛YES
﹛Diode test ﹛YES
﹛Weight ﹛160g
﹛Dimension ﹛160L℅55W℅22Hmm
﹛Accessories ﹛operation manual, test leads

﹛

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
