RESIDUAL CURRENT CIRCUIT BREAKER (RCCB)

¡¡

Type

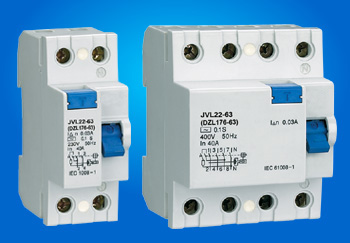

JVL22-63 I (DZL176-63)

Number of poles

2P, 4P

Rated Current(In)

25, 32, 40, 63A

Rated residual operating current( I¡÷n)

10, 30, 100, 300, 500mA

Rated residual non-operation Current( I¡÷no)

0.5I¡÷n

Rated Voltage(Un)

AC 2P: 230/240V 4P: 400/415V

Residual operating current scope

0.5I¡÷n~I¡÷n

Residual current off-time

¡Ü0.3s

Type

A, AC

Ultimate short-circuit breaking capacity (Inc)

3000A

Endurance

¡Ý4000

Terminal protection

IP20

¡¡

Type

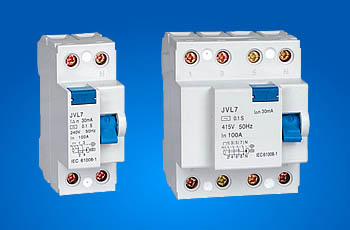

JVL7-125

Number of poles

2, 4

Rated Current(In)

25, 32, 40, 63A

Rated residual operating current(I¡÷n)

10, 30, 100, 300, 500mA

Rated Voltage(Un)

AC 230(240) / 400(415)V

Residual operating current scope

0.5I¡÷n~I¡÷n

Residual current off-time

¡Ü0.3s

Type

A, AC

Ultimate short-circuit breaking capacity (Inc)

6000A

Endurance

¡Ý4000

Terminal protection

IP20

¡¡

Type

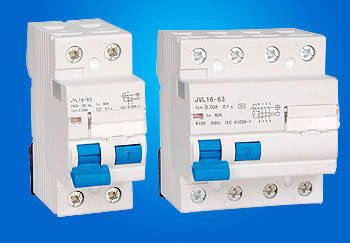

JVL16-63

Number of poles

2P, 4P

Rated Current(In)

25, 40, 63A

Rated residual operating current( I¡÷n)

30, 100, 300, 500mA

Rated residual non-operation Current( I¡÷no)

0.5I¡÷n

Rated Voltage(Un)

AC 230(240)/400(415)V

Residual operating current scope

0.5I¡÷n~I¡÷n

Residual current off-time

¡Ü0.3s

Type

A, AC

Rated conditional short-circuit current Inc

6000A

Endurance

¡Ý4000

Terminal protection

IP20

¡¡

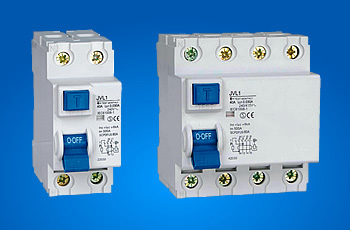

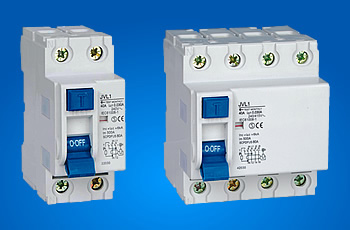

JVL1-63 I model

JVL1-63 II model

JVL1-63 III model

¡¡

Type

        JVL1-63

   Number of poles

         2P, 4P

   Rated Current(In)

         25, 40, 63, 80, 100A

   Rated residual operating current( I¡÷n)

         10, 30, 100, 300, 500mA

   Rated residual non-operation Current( I¡÷no)

         0.5I¡÷n

   Rated Voltage(Un)

    AC    2P: 230/240V    4P: 400/415V

   Residual operating current scope

         0.5I¡÷n~I¡÷n

   Residual current off-time

         ¡Ü0.3s

   Type

         A, AC

   Ultimate short-circuit breaking capacity (Inc)

         6000A

   Endurance

         ¡Ý4000

   Terminal protection

         IP20

¡¡

Type

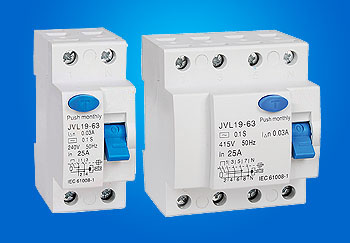

     JVL19-63

   Number of poles

     2, 4

   Rated Current(In)

     25, 32, 40, 63A

   Rated residual operating current(I¡÷n)

     10, 30, 100, 300, 500mA

   Rated Voltage(Un)

     AC  230(240) / 400(415)V

   Residual operating current scope

     0.5I¡÷n~I¡÷n

   Residual current off-time

     ¡Ü0.3s

   Type

     A, AC

   Ultimate short-circuit breaking capacity (Inc)

     6000A

   Endurance

     ¡Ý4000

  Terminal protection

     IP20
