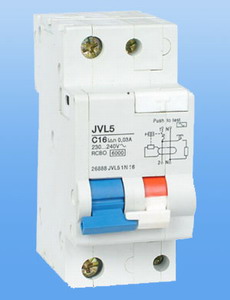

RCBO

Application scope

Protection against the effects of earth leakage overload and short circuit currents.
2P switching of ph&N, Phase only protected against overloads and short circuits.
In commercial, industrial and domestic electrical distribution systems.
Note: must mot be used as the sole means of providing protection against direct contact.
The RCBO incorporates a residual current operated electromagnetic release which operates without any auxiliary source of suppl to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to In.The RCBO combined MCB&RCCB provides:
Protection against indirect contact
Complementary protection against direct contact
Protection for the installation against in sulation faults

Standard

GB16917
IEC61009

Product's advantage

1.Our products have the guarantee period of 36 calendar months, that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Normal operation and mounting requirement :


	·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C. ·Altitude above sea level less than 2000 m. ·Humidity not exceeding 50% at

Construction features :


	1.Measuring component and buckling component of products is located between enter line end and entrance line end ; 2.Movement characteristic of products can not be changed with outside mechanical tool ; 3.The operating organization has the free function to take off and buckle; 4.Operate part can not be taken down from the shell

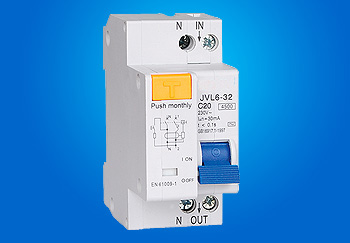

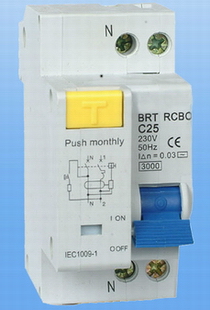

JVL6-32

Type	JVL6-32 RCCB
Number of poles	1P+N
Rated Current(In)	6, 10, 16, 20, 25, 32A
Rated operating current( I △ n)	30, 100, 300mA
Rated Current(In)	AC 230(240) V
Residual operating current scope	0.5I△n~I△n
Residual current off-time	≤0.3s
Type	A, AC
Ultimate short-circuit breaking capacity(Inc)	3000A
Endurance	≥ 4000
Terminal protection	IP20

	Application scope
	The products provide protection against earth leakage faults, overloads, short circuits and overvoltage in commercial and domestic installation. The RCBO with both disconnected neutral and phase guarantees its proper actuation against earth leakage fults even when the neutral and phase are wrongly connected. The electronic RCBO incorporate a filtering device preventing the risks of unwanted due to transient voltages and transient currents. Positive contact indication in accordance with 16th edition of the IEE wiring regulations.
	Standard
	GB16917 IEC61009
	Product's advantage
	1.Our products have the guarantee period of 36 calendar months, that is a high quality and reliability; 2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality; 3.The fast and flexible production form aim at the customer require; 4.The deliveries exactly in accordance with customer orders 5.The fast transportation. 6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Normal operation and mounting requirement :


	·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C. ·Altitude above sea level less than 2000 m. ·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C. ·Installation class II or III.

Construction features :

1.Measuring component and buckling component of products is located between enter line end and entrance line end ;
2.Movement characteristic of products can not be changed with outside mechanical tool ;
3.The operating organization has the free function to take off and buckle;
4.Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization

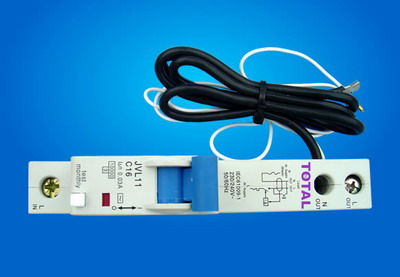

JVL11-32

Type	JVL11-32
Number of poles	1P+N
Rated Current(In)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32A
Rated operating current( I△n)	15, 30, 100, 300mA
Rated Voltage(Un)	AC 230(240) V
Residual operating current scope	0.5I△n~I△n
Residual current off-time	≤0.3s
Type	A, AC
Ultimate short-circuit breaking capacity(Icn)	10000A(10KA)
Endurance	≥4000
Terminal protection	IP20

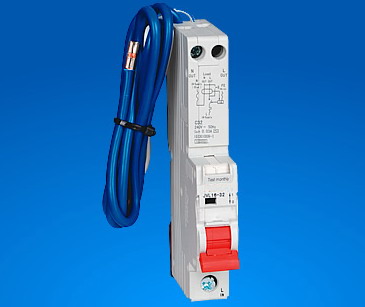

JVL16-32

·Elegant appearance; cover and handle in arc shape make comfortable operation.
·Contact position indicating window
·Transparent cover designed to carry label.
·In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.
·MCB handle can be locked either at “ON” position or at“OFF” position to prevent unwanted operation of the product.
·Provides protection against earth fault/leakage current, short-circuit and overload
·High short-circuit capacity
·Provides complementary protection against direct contact by human body.
·Effectively protects electric equipment against insulating failure
·Contact position indication
·Provides protection against over-voltage

·Type: electronic type
·Residual current characteristics: AC
·Pole No.: 1P+N
·Tripping curve: B, C
·Rated short-circuit capacity: 10000A
·Rated current (A): 6, 10, 16, 20, 25, 32
·Rated voltage: 230V AC
·Rated frequency: 50/60Hz
·Rated residual operating current(A): 0.03, 0.1
·Tripping duration: instantaneous≤0.1s
·Electro-mechanical endurance: 4000 cycles
·Connection terminal: pillar terminal with clamp
·Connection capacity:
Flexible conductor 10mm²
Rigid conductor 16mm²
·Installation:
On symmetrical DIN rail 35mm
Panel mounting

DZ47LE RCBO (ELCB+MCB)

Type	DZ47LE RCBO
Number of poles	2P, 4P
Rated Current(In)	25, 32, 40, 63A
Rated residual operating current( I △ n)	AC 230(240)/400(415)V
Rated residual non-operation Current( I △ n)	10, 30, 100, 300, 500mA
Rated Voltage(Un)	0.5I△n~I△n
Residual current off-time	≤0.3s
Type	A, AC
Ultimate short-circuit breaking capacity(Inc)	3000A
Endurance	≥ 4000
Terminal protection	IP20

	Application scope
	DZ47LE residual current circuit breaker simply fits onto the right hand side of any DZ47 miniature circuit breaker which forms DZ47LE to provide a high level of protection against earth leakage fauls in addition to the overload and over current protection by the MCB alone.
	Standard
	GB16916 IEC61008
	Product's advantage
	1.Our products have the guarantee period of 36 calendar months，that is a high quality and reliability; 2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality; 3.The fast and flexible production form aim at the customer require; 4.The deliveries exactly in accordance with customer orders 5.The fast transportation. 6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Normal operation and mounting requirement :


	·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C. ·Altitude above sea level less than 2000 m. ·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C. ·Installation class II or III. ·Pollution class II. ·Installation method DIN Rail mounting type. ·The external magnetism shall not

Construction features :


	1.Measuring component and buckling component of products is located between enter line end and entrance line end ; 2.Movement characteristic of products can not be changed with outside mechanical tool ; 3.The operating organization has the free
