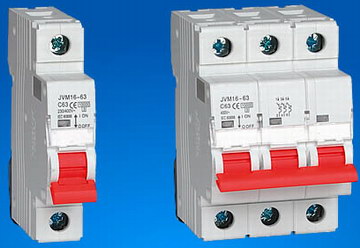

DZ47-63(C45N) MINI CIRCUIT BREAKER
APPLICATION
DZ47-63(C45N) series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching on&off electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & GB10963-1999.

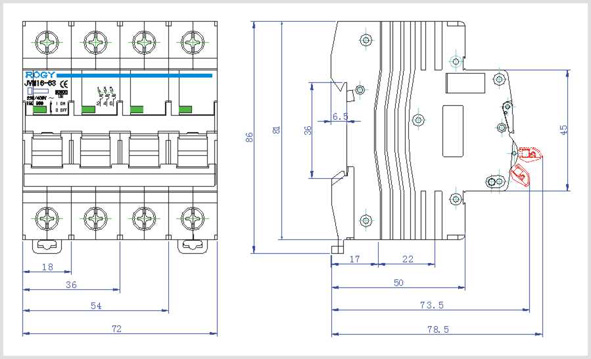

Specifications
| Setting temperature of protective characteristics at 400C |
| Rated Voltage:240V/415V |
| Rated Current:1,3,6,10,16,20,25,32,40,50,63A |
| Electrical life: no less than 6000 operations |
| Mechanical life:(O-C) on less than 20000 |
Rated making and breaking capacity
|
|
||||||||||||||||||||||||||||||||||||||||
Over current protective characteristic
|
Rated current of release In (A)
|
Initial state
|
Test current
|
Set time
|
Prospective result
|
Remarks
|
|
1¡«60
|
Cold position
|
1.13In
|
t¡Ý1
|
Non-trip
|
Current up to specified value smoothly in 5s
|
|
1¡«60
|
Made the test following closely
|
1.45In
|
t>1h
|
Trip
|
¡¡
|
|
In¡Ü32
|
Cold state
|
2.55In
|
1s<t<60s
|
Tripping
|
¡¡
|
|
In¡Ü32
|
Cold state
|
2.55In
|
1s<t<120s
|
Tripping
|
¡¡
|
|
1¡«60
|
Cold state
|
5In
|
t¡Ý0.1s
|
Non-triping
|
Model C
|
|
1¡«60
|
Cold state
|
10In
|
t¡Ý0.1s
|
Tripping
|
Model C
|
|
1¡«60
|
Cold state
|
10In
|
t¡Ý0.1s
|
Non-triping
|
Model D
|
|
1¡«60
|
Cold state
|
14In
|
t¡Ý0.1s
|
Tripping
|
Model D
|
