Rigid PVC Electrical Conduit and Fittings       PAGE1     PAGE2

¡¡

Conduit System II (UL651,UL514 standard)

PVC Conduit complying to UL651, UL514 Standard

Part Number

Trade size of Conduit

Average Outside diameter(Inch)

Average Outside diameter(MM)

Average wallthickness(Inch)

Average wallthickness(MM)

CC01050

1/2"

0.84

21.34

0.12

3.05

CC01075

3/4"

1.05

26.67

0.124

3.15

CC01100

1"

1.315

33.4

0.144

3.65

CC01125

1-1/4"

1.66

42.16

0.152

3.85

CC01150

1-1/2"

1.9

48.26

0.156

3.95

CC01200

2"

2.375

60.32

0.163

4.15

CC01250

2-1/2"

2.875

73.02

0.217

5.5

CC01300

3"

3.5

88.9

0.23

5.85

CC01400

4"

4.5

114.3

0.25

6.35

CC01500

5"

5.563

141.3

0.276

7

CC01600

6"

6.625

168.28

0.299

7.6

¡¡

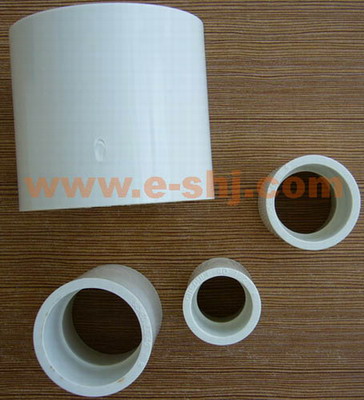

PVC Counduit fittings for Canada, USA and related markets

Color can be white or light grey

¡¡

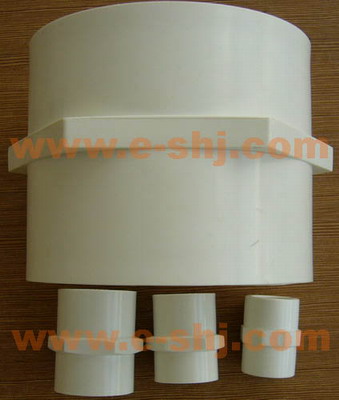

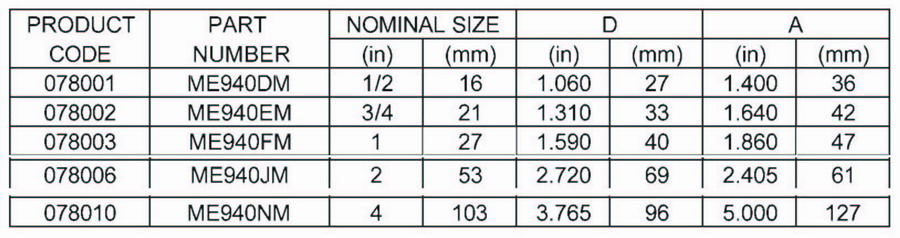

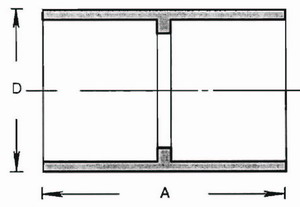

Rigid PVC Counduit Coupling

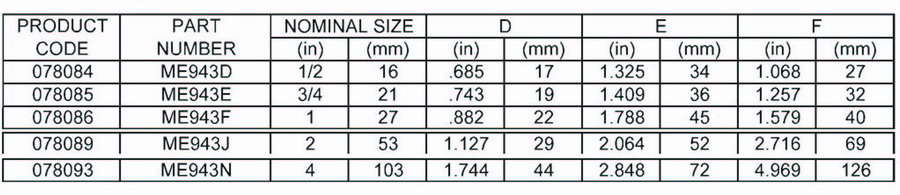

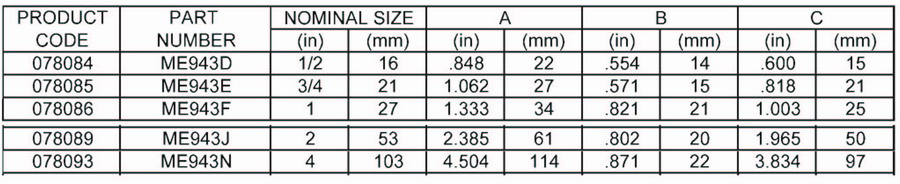

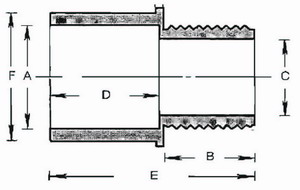

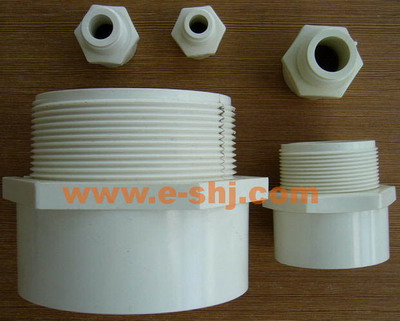

Rigid PVC Counduit Terminal Adaptor

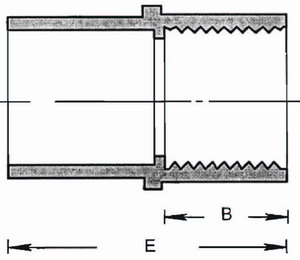

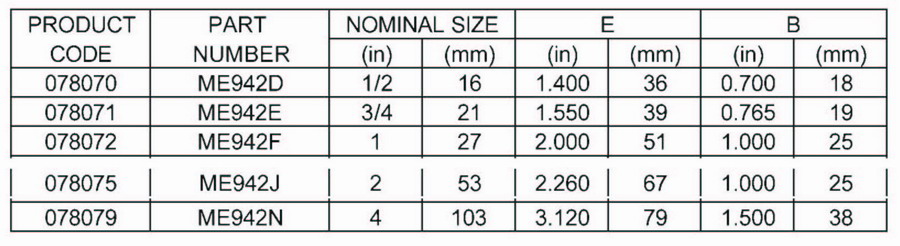

Rigid PVC Counduit Female Adaptor

¡¡

PVC Counduit fittings for Australia and related markets, totally same as Clipsal, Color can be white or light grey

Descirption

Size

Item No.

quantity/case

Case size(cm)

net weight/ case(Kg)

Gross weight/ case(Kg)

Nutlock

§¶20

AS12020

1980

46*33*25

19.8

20.6

§¶25

AS12025

1120

46*33*30

21.4

22.2

  Elbow 90¡ãtype I

§¶20

AS13020

850

48*36*30

14.5

15.3

§¶25

AS13025

540

48*36*30

12.7

13.5

Tee

§¶20

AS15020

860

48*36*30

13.8

14.6

§¶25

AS15025

460

48*36*30

11

11.8

Circular Junction Boxes (1-way)

§¶20

AS21020

245

48*36*31

16.9

17.7

§¶25

AS21025

196

48*30*31

14.1

14.9

Circular Junction Boxes (Through)

§¶20

AS22020

175

41*34*31

13

13.8

§¶25

AS22025

175

48*35*31

13.8

14.6

Circular Junctions Boxes (Angle)

§¶20

AS24020

196

49*32*31

14.3

15.1

§¶25

AS24025

168

43*38*31

13.3

14.1

Circular Junctions Boxes (Tee)

§¶20

AS23020

140

42*31*31

10.9

11.7

§¶25

AS23025

168

50*36*31

13.9

14.7

Circular Junctions Boxes (Cross)

§¶20

AS25020

140

43*34*31

11.3

12.1

§¶25

AS25025

140

46*38*31

12.3

13.1

¡¡

Here below Sweep Bends is still under developing

Name Spec. wall thickness (mm) QTY(pcs)/Ctn Ctn Size(cm) NWT/Ctn(KG) GWT/Ctn (KG)

Sweep BENDS



     20/90¡ã 2.3-2.6 600 75*46*37 23.4 24.7
    25/90¡ã 2.5-2.8 260 60*40*42 20.0 21.2
    32/90¡ã 2.7-3.0 140 72*32*42 20.3 21.6
    40/90¡ã 3.1-3.4 90 68*46*49 26.6 28.0
    50/90¡ã 3.4-3.9 40 51*48*47 19.6 21.1
    63/90¡ã 3.9-4.5 30 70*56*38 23.1 24.8
   114/90¡ã 5.9-6.7 6 90*48*41 20.5 22.6
    114/45¡ã 5.9-6.7 12 66*62*40 27.3 29.3
    114/22¡ã 5.9-6.7 16 59*44*53 22.2 23.8

¡¡

¡¡
