FLEXIBLE PVC NON HEAT SHRINKABLE INSULATION CONDUITS



PRODUCT DESCRIPTION

105¡ãUL PVC material
Operation temperature: -5¡ãC to 105¡ãC
Rated voltage 300V,600V
Flame retardant UL 224VW-1
Excellent insulation
Good flexibility
Resistance to acid & oil
Hook up wire & lead wire protection

Color: red, yellow, green, blue, black, white, transparent and etc according to order.

For general insulation and protection for appliance, wire harness, transformer, lead wire of motors, etc.

¡¡

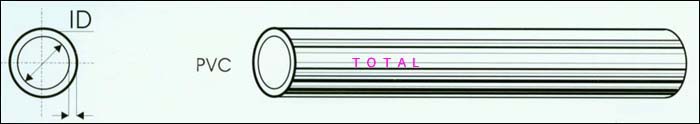

AWG

Inner diameter
(mm)

Wall Thickness(mm)

600V 105¡ãC    300V 105¡ãC

Package Length
(M/Roll)

18#

1.07¡À0.15

0.45-0.50        0.35-0.45

1000

17#

1.20¡À0.15

0.45-0.50        0.35-0.45

1000

16#

1.30¡À0.15

0.60-0.70        0.35-0.45

500

15#

1.50¡À0.20

0.60-0.70        0.35-0.45

500

14#

1.60¡À0.20

0.60-0.70        0.35-0.45

500

13#

1.90¡À0.20

0.60-0.70        0.35-0.45

500

12#

2.10¡À0.20

0.60-0.70        0.35-0.45

500

11#

2.40¡À0.20

0.60-0.70        0.35-0.45

500

10#

2.70¡À0.20

0.60-0.70        0.35-0.45

500

9#

3.00¡À0.20

0.60-0.70        0.45-0.55

500

8#

3.30¡À0.20

0.60-0.70        0.45-0.55

500

7#

3.80¡À0.30

0.60-0.70        0.45-0.55

400

6#

4.20¡À0.30

0.60-0.70        0.45-0.55

400

5#

4.80¡À0.30

0.60-0.70        0.45-0.55

400

4#

5.30¡À0.30

0.60-0.70        0.45-0.55

300

3#

5.90¡À0.30

0.60-0.70        0.45-0.55

300

2#

6.70¡À0.30

0.60-0.70        0.45-0.55

200

1#

7.40¡À0.30

0.60-0.70        0.45-0.55

200

0#

8.20¡À0.30

0.60-0.70        0.45-0.55

200

5/16¡±

8.00¡À0.30

0.60-0.70

200

3/8¡±

9.50¡À0.40

0.60-0.70

200

7/16¡±

11.10¡À0.40

0.60-0.70

150

1/2¡±

12.70¡À0.40

0.60-0.70

150

9/16¡±

14.30¡À0.40

0.80-0.90

150

5/8¡±

15.90¡À0.40

0.80-0.90

150

3/4¡±

19.00¡À0.50

0.80-0.90

50

7/8¡±

22.20¡À0.50

0.80-0.90

25

1¡±

25.40¡À0.50

0.80-0.90

25

¡¡

Non-Shrinkable Halogen Free Flame-Retardant Tube   PE

¡¡

Product introduction:
Thin product is made from Cross-Linked Halogen Free Flame-retardant Polyolefin material.
It supplies mechanical and insulation protection for bundles wires.
Its raw material is based on Halogen Free Environment friendly series. It don't include unwholesome Eight Bad Eight Bad Elements, PBB, PBDE and other substance, this product is the best product to replace PVC material.
1.Operating Temperature:-55¡æ¡« 125¡æ;
2.RoHS compliant.

Available Color:

Black(Other color available upon request.)

¡¡

Technical Data:

Performance

Test Method

Standard

Tensile Strength(MPa)

ASTM D2671

¡Ý10.4

Elongation(%)

ASTM D2671

¡Ý200

Volume Resistance

ASTM D876

¡Ý1014

Flammability

UL 224

Self extinct

Copper corrosion

UL 224

PASS

Water Absorption

ASTM D570

¡Ü0.5

Dielectric strength(kv/mm)

GB/1408

¡Ý15
¡¡

Specification:

Size(AWG)

I.D.(mm)

W.T.(mm)

Stantard(m/spool)

AWG18

1.00¡À0.10

0.40¡À0.06

200

AWG16

1.30¡À0.10

0.40¡À0.06

200

AWG14

1.65¡À0.10

0.40¡À0.06

200

AWG12

2.10¡À0.15

0.40¡À0.06

200

AWG10

2.60¡À0.15

0.50¡À0.08

200

AWG8

3.30¡À0.15

0.50¡À0.08

200

AWG6

4.10¡À0.20

0.50¡À0.08

100

AWG4

5.20¡À0.20

0.50¡À0.08

100

AWG2

6.50¡À0.20

0.50¡À0.08

100

AWG0

8.30¡À0.30

0.50¡À0.08

100

3/8"

9.50¡À0.40

0.50¡À0.08

100

7/16"

11.10¡À0.40

0.50¡À0.08

100

1/2"

12.70¡À0.40

0.50¡À0.08

100
