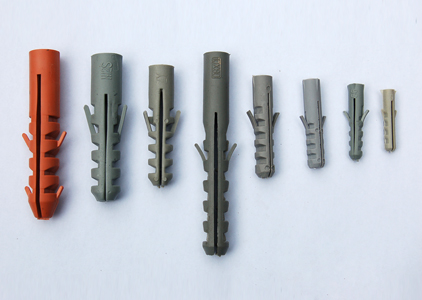

FISHLIKE ANCHOR (NYLON)

ITEM CODE

ANCHOR SIZE

DRILL SIZE

SCREW SIZE

FA525

M5 X  25mm

Ø5mm

Ø2.5-4mm

FA630

M6 X 30mm

Ø6mm

Ø3.5-5mm

FA840

M8 X 40mm

Ø8mm

Ø4.5-6mm

FA1050

M10 X 50mm

Ø10mm

Ø6-8mm

FA1260

M12 X 60mm

Ø12mm

Ø8-10mm

FA1475

M14 X 74mm

Ø14mm

Ø10-12mm

APPLICATION

It's ideal to be used for building materials, even thin. It endures temperature (-40--+80), rust, corrosion, aging, and chemical afftect. Meanwhile good at electric insulation, tensibility, and high pressure. The structure designed with gear can prevent itself sliding in the hole.





CONICAL ANCHOR (NYLON OR PP)



Used primarily for light duty fastening in concrete,brick, masonry or drywall, the conical anchor's ridged body helps eliminate spinning while the screw is inserted.Conicals are available in red and blue , and are conveniently packaged for all job sizes.

ITEM CODE

ANCHOR SIZE

DRILL SIZE

SCREW SIZE

NCA6

M6mm

Ø6mm

Ø4mm

NCA8

M8mm

Ø8mm

Ø5mm

NCA10

M10mm

Ø10mm

Ø6mm

NCA12

M12mm

Ø12mm

Ø8mm



ITEM CODE

DIAMETER & LENGTH

HOUSE WITH SCREW SIZES

HOLE SIZE

PKG QUANTITY

PCA31634

3/16 X 3/4"

#4, #6, #8

3/16"

1000

PCA31678

3/16 X 7/8"

#6, #8,#10

3/16"

1000

PCA141

1/4 X 1"

#10,#12

1/4"

1000

PCA516138

5/16 X 1-3/8"

#14, #16

5/16''

500

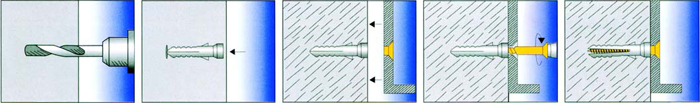

APPLICATION & INSTALLATION

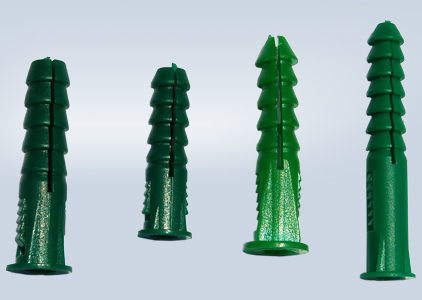

SUPER PLASTIC ANCHOR

One of the finest plastic anchors on the market today, the super plastic anchor has two tabs or "windows"on the neck of the anchor which expand out as the screw is driven in,e nsuring stability and holding strength. As the screw is driven further into the anchor, the ribbed body expands perpendicularly, producing a four-way expansion and a very dependable fixing. The super plastic anchor is used for medium and light duty fastening in concrete, masonry, drywall, etc.

ITEM CODE

DIAMETER & LENGTH

HOUSE WITH SCREW SIZES

HOLE SIZE

PACKAGE QUANTITY

SPA31678

3/16 X 7/8"

#4, #6, #8

3/16"

1000

SPA3161

3/16 X 1"

#4, #6, #8

3/16"

1000

SPA14114

1/4 X 1-1/4"

#6, #10, #12

1/4"

1000

SPA516112

5/16 X1-1/2"

#12, #14, #16

5/16"

500





NYLON NAIL ANCHORS OR LENGTHENED



Nylon nail anchors are ideal for a wide variety of light load fastening in wood. hardboard, plaster, metal, cinder block, brick, skate, marble, plastic, tile, glass and concrete, It's unique design allows the nail to expand the anchor uniformly in the hole.
1. The anchor body is manufactured from virgin nylon to withstand high impact or shock loads. And its great tensile strength males it unusually resistant to vibration loads.
2. The nylon is resistant to chemicals, fungus, moisture and other atmospheric conditions.
3. Electrical and thermal insulating properties are excellent. Thermal resistance ranges from -40<~F + 170<~F.
4. The pin is made of high strength steel and heavily zinc plated for maximum corrosion resistance

Item Code

Anchor Size

Box Qty

Master Qty

FFNA3161

3/16 X 1

100

10

FFNA3161112

3/16 X 1-1/2

100

10

FFNA1434

1/4 X 3/4

100

10

FFNA141

1/4 X 1

100

10

FFNA14112

1/4 X 1-1/2

100

10

FFNA142

1/4 X 2

100

10

FFNA143

1/4 X 3

100

10

FFNA144

1/4 X 4

100

10





Item Code

Anchor Size

Drill Size

Screw Size

FFNNAL530

5 X 30mm

Ø5mm

3.5 X 38mm

FFNNAL540

5 X 40mm

Ø5mm

3.5 X 48mm

FFNNAL550

5 X 50mm

Ø5mm

3.5 X 58mm

FFNNAL640

6 X 40mm

Ø6mm

4 X 48mm

FFNNAL660

6 X 60mm

Ø6mm

4 X 64mm

FFNNAL680

6 X 80mm

Ø6mm

4 X 88mm

FFNNAL860

8 X 60mm

Ø8mm

5 X 65mm

FFNNAL880

8 X 80mm

Ø8mm

5 X 85mm

FFNNAL8100

8 X 100mm

Ø8mm

5 X 105mm

FFNNAL8120

8 X 120mm

Ø8mm

5 X 125mm

FFNNAL10100

10 X 100mm

Ø10mm

7 X 110mm

FFNNAL10135

10 X 135mm

Ø10mm

7 X 145mm

FFNNAL10160

10 X 160mm

Ø10mm

7 X 170mm





APPLICATION & INSTALLATION

Drill hole same diameter as nylon anchor (3/16'' or 1/4") but slightly deeper than anchor length

Insert nylon anchor through object to be fastened and into drilled hole

Drive pin flush with head of anchor nylon anchor expands and is permanently anchored if desired the nylon anchor can be removed with a screwdriver and reused

Solid Application
The entire length of the nylon body is compressed against sidewalls of the hole

Hollow Application
A secure fastening is obtained when legs of anchor are expande





SPLIT RIBBED PLASTIC ANCHOR

Ribbed plastic anchors are used for light duty fastening in concrete , brick , masonry or drywall. The extra holding power afforded by the ribs along the body of the anchor make it a preferable alternative to the standard conical plastic anchor when better holding power is required . These anchors also offer the option of the flush mount "No Lip" version.



                     RIBBED PLASTIC ANCHORS WITHOUT LIP

ITEM CODE

DIAMETER & LENGTH

HOUSE WITH SCREW SIZES

HOLE SIZE

PKG QUANTITY

SPA31678

3/16X7/8"

#6, #8

3/16"

1000

SPA141

1/4X1"

#10, #12

1/4"

1000

SPA516114

5/16X1-1/4"

#14, #16

5/16"

500

APPLICATION & INSTALLATION



SPEED PLUG (NYLON)

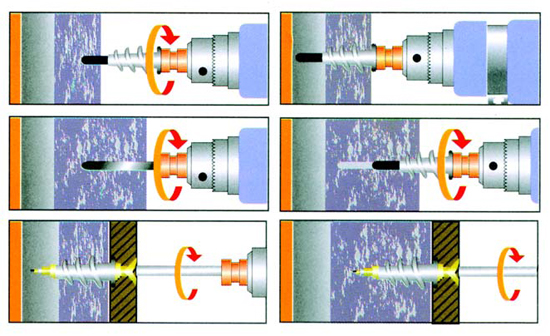

INSTALLATION
