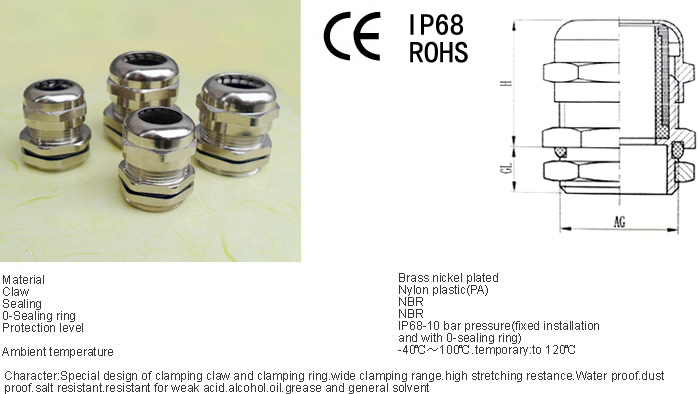

AG

Specification of thread

Cable Range

Outer diameter of thread

Mounting

hole diamet

GL

Thread length

Wrench diameter

M18×1.5

6×10

18mm

18-18.2

8m

20mm

M20×1.5

5×11.5

20mm

20-20.2

8m

22mm

M20×1.5

6.5×12

20mm

20-20.2

8mm

22mm

M20×1.5

6×14

20mm

20-20.2

8mm

24mm

M20×1.5

7×12

20mm

20-20.2

8mm

24mm

M20×1.5

7×14

20mm

20-20.2

8mm

24mm

M25×1.5

6×14

25mm

25-25.2

9mm

30mm

M25×1.5

7×14

25mm

25-25.2

9mm

30mm

M32×1.5

8×22

32mm

32-32.2

9mm

35mm

M40×1.5

10×28.5

40mm

40-40.2

10mm

50mm

M40×1.5

5.5×29

40mm

40-40.2

10mm

50mm

G3/8

6×10

16.6mm

7mm

18mm

G1/2

6.5×12

20.9mm

8mm

22mm

G1/2

6×14

20.9mm

8mm

22mm

G1/2

7×12

20.9mm

8mm

24mm

G1/2

7×14

20.9mm

8mm

24mm

G3/4

6×14

26.4mm

9mm

30mm

G3/4

7×14

26.4mm

9mm

30mm

G1

8×22

33.2mm

10mm

35mm

G11/4

10×28.5

41.9mm

10mm

50mm

G11/4

5.5×29

41.9mm

10mm

50mm

PG11

6×10

18.6mm

18.6-18.8

8mm

20mm

PG13.5

5×11.5

20.4mm

20.4-20.6

8mm

22mm

PG16

6.5×12

22.5mm

22.5-22.7

8mm

22mm

PG16

6×14

22.5mm

22.5-22.7

8mm

24mm

PG16

7×12

22.5mm

22.5-22.7

8mm

24mm

PG16

7×14

22.5mm

22.5-22.7

8mm

24mm

PG21

6×14

28.3mm

28.3-28.5

9mm

30mm

PG21

7×14

28.3mm

28.3-28.5

9mm

30mm

PG29

8×22

37mm

37-37.2

10mm

40mm

PG36

10×28.5

47mm

10mm

50mm

PG36

5.5×29

48mm

10mm

50mm

NPT3/8

6×10

17mm

8mm

18mm

NPT1/2

6.5×12

21.2mm

8mm

22mm

NPT1/2

6×14

21.2mm

8mm

24mm

NPT1/2

7×12

21.2mm

8mm

24mm

NPT1/2

7×14

21.2mm

8mm

24mm

NPT3/4

6×14

26.5mm

9mm

30mm

NPT3/4

7×14

26.5mm

9mm

30mm

NPT1

8×22

33.2mm

10mm

35mm

NPT11/4

10×28.5

42.2mm

10mm

50mm

NPT11/4

5.5×29

42.2mm

10mm

50mm
