distribution

Model:

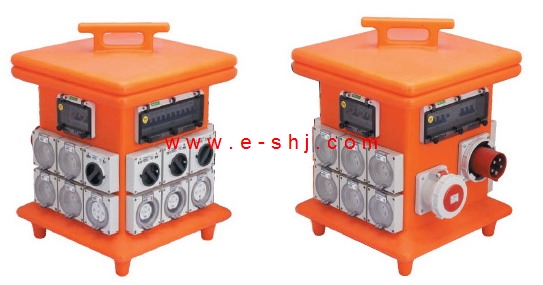

ASTTL001 Power box

Dimension:
400x400x570mm(H,W,D)

Side A
1xIEC 5P 63A IP67 plug and MCB(RCBO)
1xIEC 5P 63A IP67 socket and MCB(RCBO)

Side B
4x3P 15A IP66 Socket and RCBO
1x5P 32A IP66 Socket and switch and RCBO

Side C
2X 5P 20A IP66 Socket and waterproof
switch and MCBs(RCBO)
1x5P 32A IP66 Socket and waterproof switch

Side D
6x3P 15A Waterproof Socket and MCBs(RCBO)

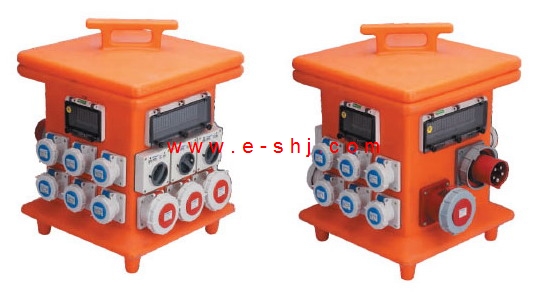

Model:

ASTTL002 Power box

Dimension:
400X400X570mm(H,W,D)

Side A
1XIEC 5P 63A IP67 plug and MCB(RCBO)
1XIEC 5P 63A IP67 socket abd MCB(RCBO)

Side B
6X3P 16A IP67 IEC Socket and RCBO

Side C
3X 5P 32A IP67 IEC Socket and
waterproof switch and MCBs(RCBO)

Side D
6X3P 16A IP67 IEC Socket and MCBs(RCBO)

Distribution Box M Series

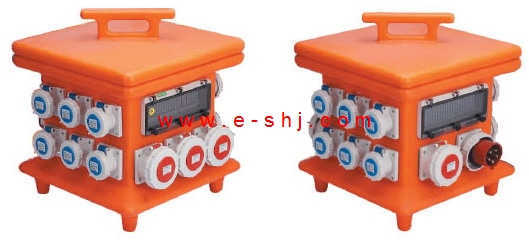

Model:

ASTTM001 Power box

Dimension:
400X400X460mm(H,W,D)

Side A
1XIEC 5P 32A IP67 plug and MCB(RCBO)
1XIEC 5P 32A IP67 socket abd MCB(RCBO)

Side B
6X3P 16A IP67 IEC Socket and RCBO

Side C
3X 5P 32A IP67 IEC Socket and MCBs(RCBO)

Side D
6X3P 16A IP67 IEC Socket and MCBs(RCBO

Model:

ASTTM002 Power box

Dimension:
400X400X460mm(H,W,D)

Side A
1XIEC 5P 32A IP44 plug and MCB(RCBO)
1XIEC 5P 32A IP44socket abd MCB(RCBO)

Side B
6X3P 16A IP44 IEC Socket and RCBO

Side C
3X 5P 32A IP44 IEC Socket and MCBs(RCBO)

Side D
6X3P 16A IP44 IEC Socket and MCBs(RCBO)

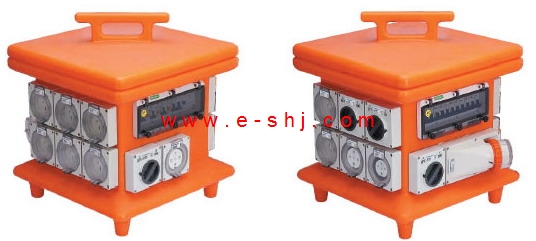

Model:

ASTTM003 Power box

Dimension:
400X400X460mm(H,W,D)

Side A
1X 5P 32A IP66 Plug and switch MCB(RCBO)

Side B
6X 15A IP66 Socket and MCBs (RCBO)

Side C
1X 5P 32A IP66 Socket and waterproof switch
and MCBs(RCBO)

Side D
2X3P 15A IP66 Socket and RCBO
1X5P 32A IP66 Socket and switch and RCBO
1X5P 20A IP66 Socket and switch and RCBO

Distribution Box S Series

Model:

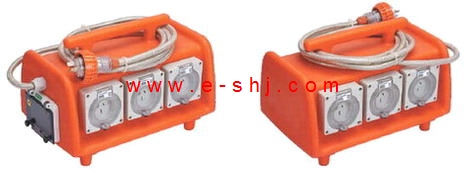

ASTTS001 Power box

Dimension:
400X400X460mm(H,W,D)

Side A
Enclosure complete with RCD/MCB 20Amp circuit breaker
1.8M leads
15A plug(IP66 waterproof)

Side B
6X250V 10A/15A outlets

Model:

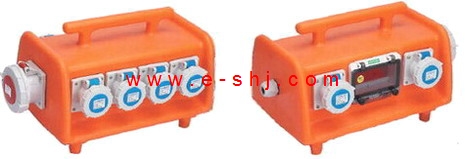

ASTTS002 Power box

Dimension:
380X250X260mm(H,W,D)

Side A
Enclosure complete with RCD/MCB 20Amp circuit breaker
1.8M leads
16A plug(IP67 waterproof)

Side B
6X16A outlets
Side C
1X32A 5P IEC Socket and MCB(RCBO)

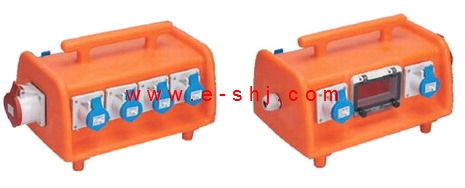

Model:

ASTTS003 Power box

Dimension:
380X250X260mm(H,W,D)

Side A
2X16A IEC socket and MCB(RCBO)

Side B
4X16A IEC socket

Side C
1X32A IEC socket

Distribution Box W Series

Pictures	Model	Dimension	Description

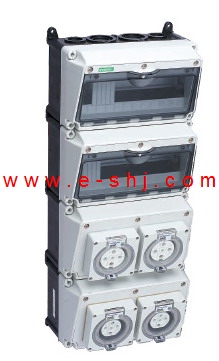

	ASTTW001 Power box	---	2X32A IP66 Socket and MCB (RCBO) 2X20A IP66 Socket and MCB (RCBO)
	ASTTW002 Power box	---	2X32A IP66 Socket and MCB (RCBO) 2X32A IP66 Socket and MCB (RCBO)
	ASTTW003 Power box	---	2X15A IP66 Socket and MCB (RCBO)

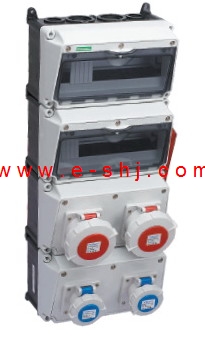

	ASTTW004 Power box	---	2X32A IP67 IEC Socket and MCB (RCBO) 2X16A IP67 IEC Socket and MCB (RCBO)

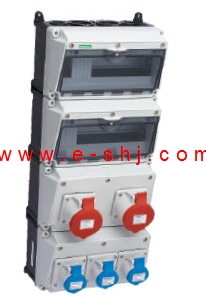

	ASTTW005 Power box	---	2X32A IP44 IEC Socket and MCB (RCBO) 3X16A IP44 IEC Socket and MCB (RCBO)
	ASTTW006 Power box	---	1X16A IP44 IEC Socket and MCB (RCBO) 1X32A IP44 IEC Socket and MCB (RCBO)
	ASTTW008 Power box	---	2X16A IP67 IEC Socket and MCB (RCBO)

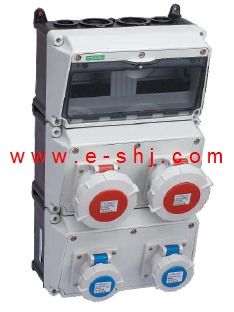

	ASTTW009 Power box	---	2X16A IP67 IEC Socket and MCB (RCBO) 2X32A IP67 IEC Socket and MCB (RCBO)

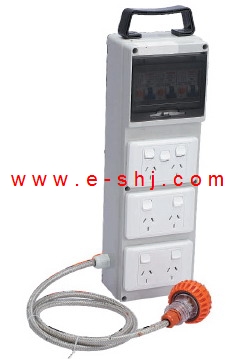

	ASTTW010 Power box	---	3X10A Wall switch and MCB(RCBO) 1X1.8M leads 1X10A IP66 plug
	ASTTW011 Power box	290X160X530mm	2X32A IP44 IEC Socket and MCB (RCBO) 5X16A IP44 IEC Socket and MCB (RCBO)
	ASTTW012 Power box	290X150X400mm	2X32A Ip67 IEC Socket and MCB (RCBO) 3X16A IP67 IEC Socket
	ASTTW013 Power box	290X150X400mm	6X16A IP44 IEC Socket and MCB (RCBO)

Distribution Box G Series

Pictures	Model	Dimension	Description
	ASTTG001 Power box	290X160X530mm(H,W,D)	6X3P 15A waterproof socket 2X3P 16A CEE waterproof socket
	ASTTG002 Power box	290X150X400mm	2X3P 15A waterproof socket 1X5P 32A waterproof socket and switch 1X1.8M lead and 5P 32A waterproof plug

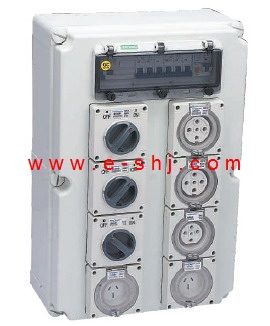

	ASTTG003 Power box	350X170X530mm	2X5P 32A waterproof socket and switch 1X5P 20A waterproof socket and switch 2X3P 15A waterproof socket

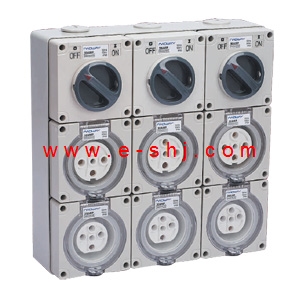

	ASTTG004 Power box	---	3X56SW 3XUKBI/32 3XCEE 5 Pins 32A 3X CEE 4 Pins 32A Frenquncy:50Hz/60Hz Volts:220-380V/240-415V
	ASTTG005 Power box	---	3X56CB1-4N 3XUKBI/32 3XCEE 5 Pins 32A Frenquncy:50Hz/60Hz Volts:220-380V/240-415V
	ASTTG006 Power box	---	3X56SW 6X56SO315
	ASTTG007 Power box	---	3X56SW 6X56SO532
